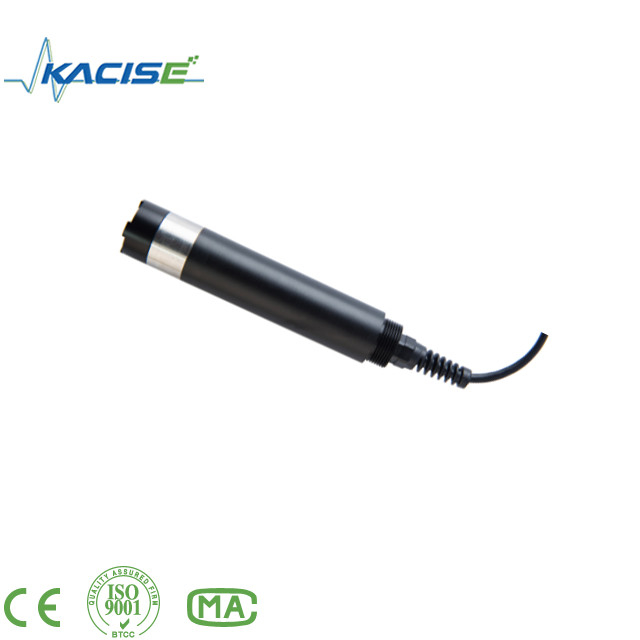

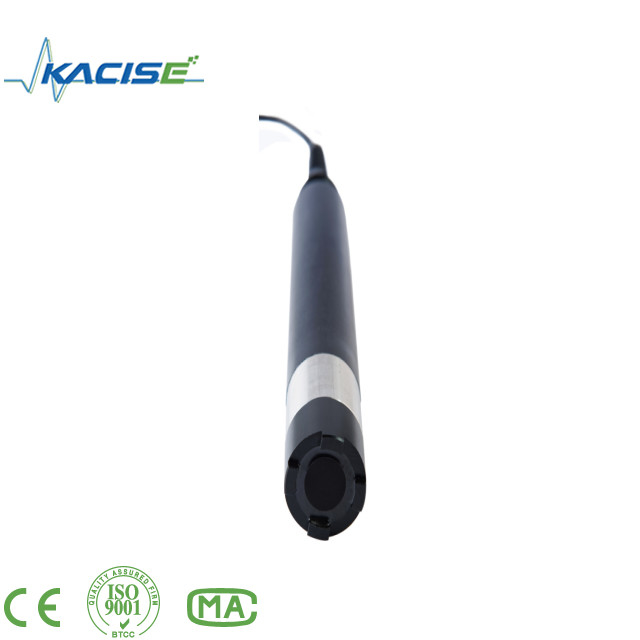

RS485 Optical Fluorescence Method Dissolved Oxygen Sensor With Accuracy 1%

RS485 Optical Fluorescence Method Dissolved Oxygen Sensor With Accuracy 1%

  • RS485 Optical Fluorescence Method Dissolved Oxygen Sensor With Accuracy 1%
  • RS485 Optical Fluorescence Method Dissolved Oxygen Sensor With Accuracy 1%
RS485 Optical Fluorescence Method Dissolved Oxygen Sensor With Accuracy 1%
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Kacise
Payment & Shipping Terms:
Price: $100.00 - $1,000.00/pieces
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Supply Ability: 500 Piece/Pieces per Month
Contact Now
Detailed Product Description
Principle: Ultraviolet Fluorescence Method Measuring Range: 0~20mg/L
Accuracy: 1% Power Supply: DC 5~12V, Current <50mA
Calibration: Two Point Calibration Power Suppluy: 12~24VDC ±10%
Port: Xi'an Or Other
High Light:

DO Water Quality Sensor 24VDC

,

Fluorescence Optical Dissolved Oxygen Sensor

,

Optical DO Sensor RS485



DO sensor RS485 Optical Fluorescence Method Dissolved Oxygen Sensor



1. Applications



The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. Kacise independently develops high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.





2. Feature

  • Digital sensor, RS485 output, support MODBUS,
  • no membrane,
  • no electrolyte,
  • no interference,
  • no need for frequent calibration,
  • no oxygen,
  • no flow restriction,
  • built-in temperature sensor, automatic temperature compensation.



3.Technical Specifications



product

Online fluorescence dissolved oxygen sensor



principle

Ultraviolet fluorescence method

Measuring range

0~20mg/L

Response time

10 sec

accurate

1%

Protection level

IP68

Deepest depth

Underwater 60 meters

underwater 10 meters

temperature range

0 ~ 50℃

Output

Support RS-485, MODBUS protocol

Power supply

DC 5~12V, current <50mA

size

Φ26*177.5 mm

Probe cable length

10 m, customizable 5 m, 15 m and 30 m cable

Fluorescent cap life

1 year

Maximum working pressure

6bar

product material

POM or ss316
