| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Price: | $100.00 - $1,000.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 500 Piece/Pieces per Month |
| Principle: | Ultraviolet Fluorescence Method | Measuring Range: | 0~20mg/L |
|---|---|---|---|
| Accuracy: | 1% | Power Supply: | DC 5~12V, Current <50mA |
| Calibration: | Two Point Calibration | Power Suppluy: | 12~24VDC ±10% |
| Port: | Xi'an Or Other |

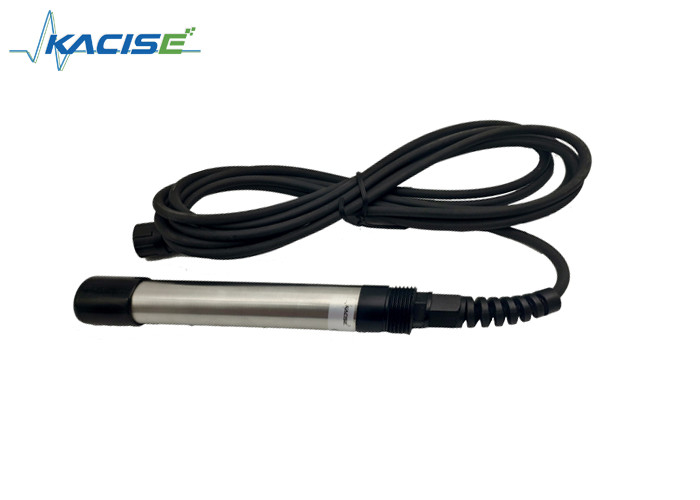

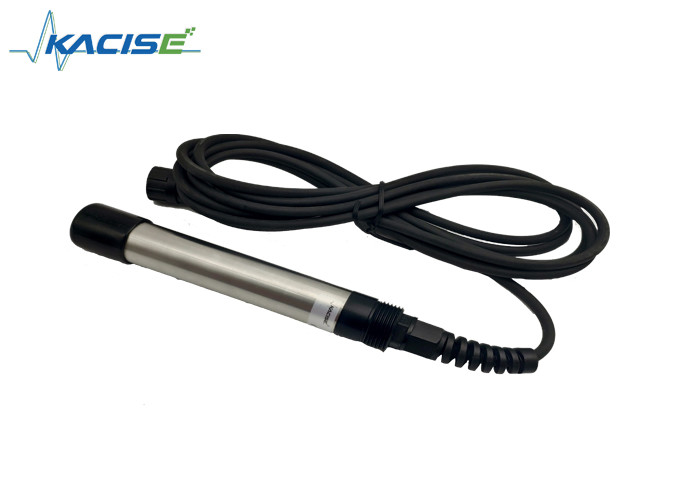

Digital Online Dissolved Oxygen Sensor For Sea Water monitoring
1. Applications
The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. Kacise independently develops high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.
2. Feature
3.Technical Specifications
| Model | KFDO601 |
| Measuring principle | Fluorescence method |
| Range ability | 0~20mg/L (0 ≤ 200% saturation) |
| Resolution ratio | 0.01mg/L,0.1℃ |
| Precision | ±2%F.S.,±0.5℃ |
| Temperature compensation | Automatic temperature compensation(Pt1000) |
| Output mode | RS-485 bus, Modbus-RTU protocol |
| Working conditions | 0～45℃,<0.2MPa |
| Storage temperature | -5～65℃ |
| Installation mode | Immersion mounting |
| Cable length | 5 meters, other lengths customizable |
| Power dissipation | ＜0.3W@12V |
| Source | 12～24VDC ±10% |
| levels of protection | IP68 |
| Calibration | Two-point calibration |
| Fluorescent cap life | Guaranteed use for one year (under normal use) |
| Sensor shell material | POM and 316L stainless steel |
4.Support and Service
Dissolved oxygen sensor
Technical support and service
At Dissolved Oxygen Sensors, we strive to provide our customers with the best technical support and service for our products. Our team of experts is dedicated to ensuring that our customers have a smooth experience with our dissolved oxygen sensors. From pre-sales consultation to after-sales support, we will do everything we can to help you.
Technical support
Our technical support team is available to answer any questions you may have about dissolved oxygen sensors.
Keep under warranty
All our dissolved oxygen sensors come with a standard one-year warranty. This warranty covers any defects in materials or workmanship. If there is any problem with your product during the warranty period, our team will provide you with a replacement or repair product free of charge.
Customized service
We understand that each customer may have different needs and requirements for our dissolved oxygen sensors. That's why we offer custom services to tailor our products to meet your specific needs. Our team will work closely with you to understand your needs and provide you with a customized solution.
After-sales support
Our commitment to our customers does not end with the sale of our products and we provide after-sales service to ensure that our customers are happy with their purchases and continue to get the best performance from our electronic sensors. If you have any questions or need help with our products, our team is ready to help
Thank you for choosing a dissolved oxygen sensor. We are committed to providing you with the best technical support and service for our products. If you have any further questions or enquiries, please do not hesitate to contact us.
