Name: Waterproof Round Load Cell Transmitter with IP69 Rating for Industrial Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KCZ-201
Price: 270.00 USD
Availability: InStock

Home > Products > Load Cell Sensor >

Waterproof Round Load Cell Transmitter with IP69 Rating for Industrial Applications

waterproof load cell transmitter

round load cell sensor

waterproof load cell sensor

Place of Origin:

Shanxi, China

Brand Name:

KACISE

Model Number:

KCZ-201

Request A Quote

Product Details

Usage:

Load Cell

Theory:

Resistance Sensor

Output:

Analog SENSOR

Capacity:

50, 100, 200, 300, 500kg

Non-linearity:

0.03%F.S

Repeatability:

0.03%F.S

Port:

Shanghai Or Other

Highlight:

waterproof load cell transmitter

round load cell sensor

waterproof load cell sensor

Payment & Shipping Terms

Price

$40.00 - $500.00/pieces

Packaging Details

Each unit has individual box and all boxes are packed in standard packages. We can also do the packing based on the requirement of our customers.

Supply Ability

3000 Piece/Pieces per Week

Stainless Steel IP68 Protected High Accuracy C3 Load Cell Sensor for Industrial Weighing Systems

Get Best Price

Stainless Steel Load Cell with High Dynamic Response and IP67 Waterproof for Industrial Weighbridge Applications

Get Best Price

High Precision S-Beam Crane Scale Load Cell Sensor with IP69 Rating and Aluminum Alloy Construction

Get Best Price

GXLC-DZ-1T 1000KG Capacity Heavy Sensor Load Cell with Bidirectional Tension and Compression and High Comprehensive Accuracy

Get Best Price

Contact Now

Product Description

Waterproof Round Load Cell Transmitter

RELATED PRODUCTS

Features

Low profile with small deflection .Made of stainless steel Suitable for automotive press fit, automated assembly, 3CS products testing, new energy product accembly, medical testing, robotics, mold assembly and other industrial testing and controlling system

Technical Specifications

Capacity	50, 100, 200, 300, 500kg
Rated output	2.0±0.1%mV/V
Zero balance	±2%F.S.
Non-linearity	0.03%F.S
Hysteresis	0.03%F.S
Repeatability	0.03%F.S
Creep (30min)	0.03%F.S
Temp.effect on output	0.03%F.S/10℃
Temp.effect on zero	0.03%F.S/10℃
Input impedance	780±20ohm
Output impedance	700±10ohm
Insulation	≥5000M ohm/100VDC
Recommended excitation	5~15V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S
Ultimate overload	200%F.S
Cable size	Φ5x4000mm
IP class	IP69
Capacity	50, 100, 200, 300, 500kg
Rated output	2.0±0.1%mV/V
Zero balance	±2%F.S.

Dimensions and Connection

Waterproof Round Load Cell Transmitter with IP69 Rating for Industrial Applications 3

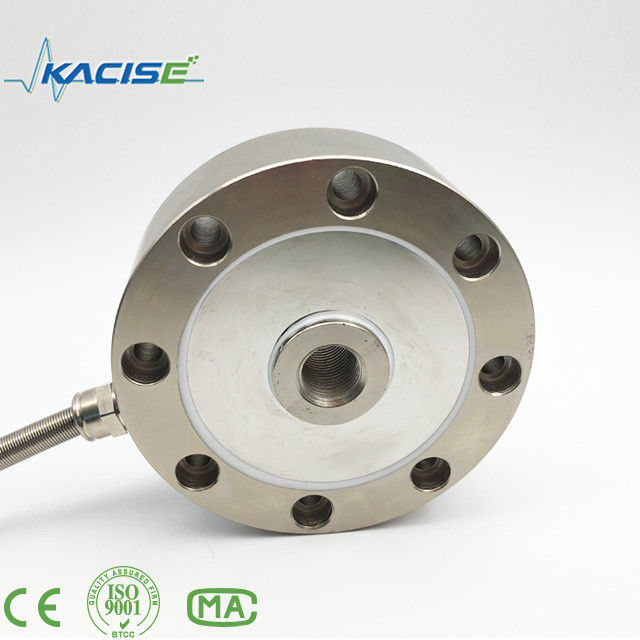

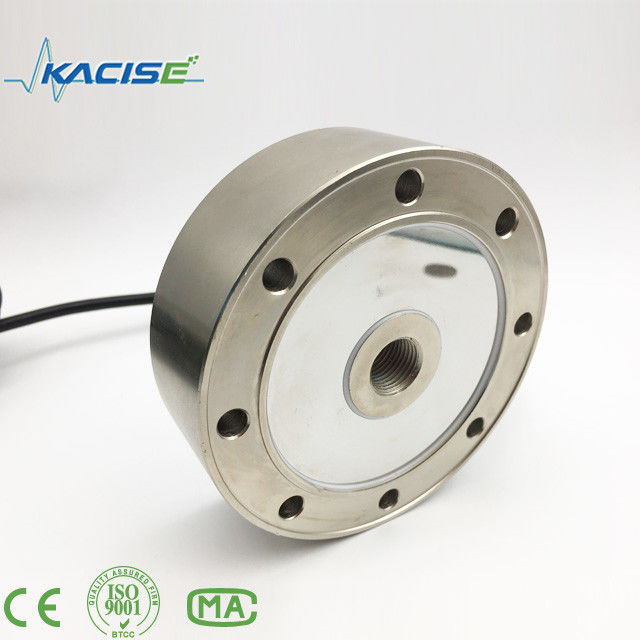

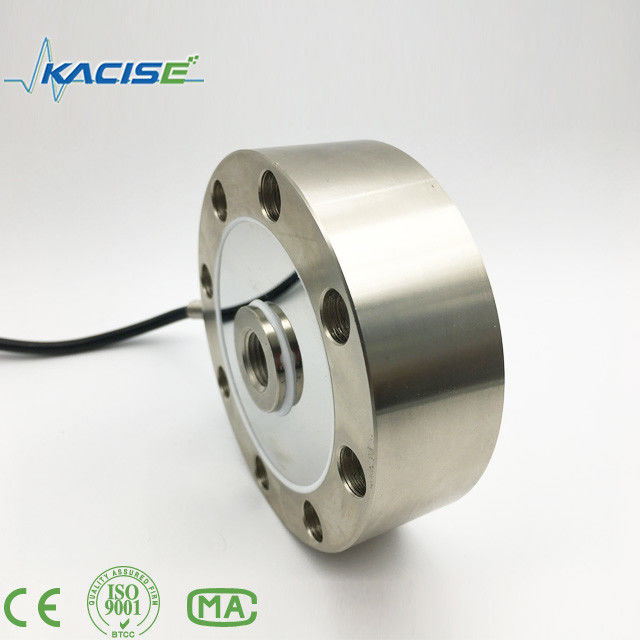

Product Display

Waterproof Round Load Cell Transmitter with IP69 Rating for Industrial Applications 4

Our Services

Your inquiry will be replied in 24hours.
Well-trained and experienced staffs to answer all your enquires in fluent English.
OEM&ODM, we can help you to design and your request will be put into product.
Distributorship are offered for your unique design and some our current models.
Protection of your sales area, ideas of design and all your private information.
Discounts are offered based on order quantities.
We provide paid repair services for meter damages not arising from manufacturing quality issues
