| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPS |
| Price: | $55.00 - $68.00/pieces |
|---|---|
| Packaging Details: | 1pc/box, many boxes/ carton, some carton/wooden case, or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Certificate:: | CE |
| Warranty: | 12 Months Exchange | Type: | Low Differential Pressure Sensor |
| Port: | Shanghai Or Other |
Feature
High sensitivity
High accuracy and high stability
Mini outline, easy to install
Application
Boiler
Dust precipitator
Air duct pressure
Differential and negativepressure
Instruction

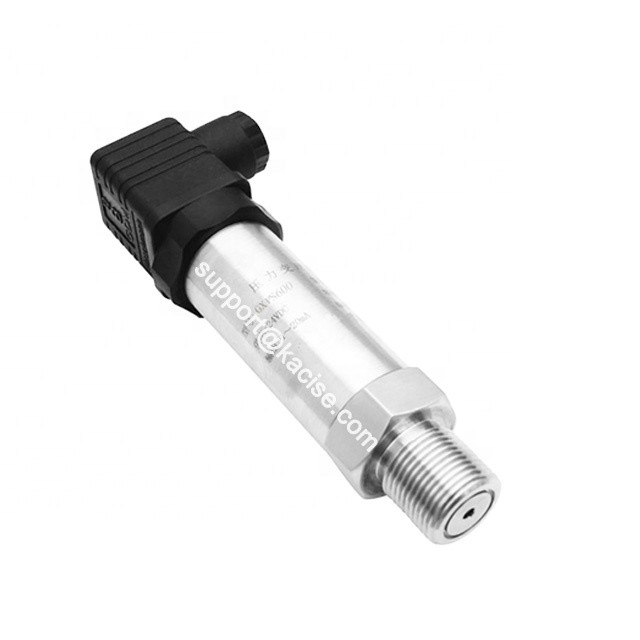

GXPS540 series low differential pressure sensor Wind Pressure & Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.
Parameter of 2019 low cost high quality low differential pressure sensor
|
Measuring range: |
0-100Pa~100Kpa; -50KPa~-50Pa-50Pa~50Kpa |
|
Protection: |
IP65 |
|
Medium Measurement: |
Non-corrosive dry gas; weak corrosive and damp gas |
|
Output signal: |
4~20mA, 1~5V, 0~5V Optional |
|
Operating voltage: |
24VDC |
|
Accuracy: |
±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional |
|
Adjustment |
Zero and range are adjustable externally |
|
Medium temperature: |
-10~100°C |
|
Ambient temperature : |
-20~80°C |
|
Electric Interface: |
outlet cable |
|
Shell material: |
Aluminum alloy |
Dimension
Ordering information
|
GXPS540 |
|
Product Serial |
||||
|
|
X (Pa or KPa) |
|
Pressure Range |
|||
|
|
0.3 |
|
±0.3%FS Accuracy |
|||
|
0.5 |
|
±0.5%FS Accuracy |
||||
|
1.0 |
|
±1%FS Accuracy |
||||
|
|
4mA |
|
4~20mA Output |
|||
|
V0 |
|
0~5VDC Output |
||||
|
V1 |
|
1~5VDC Output |
||||
|
RSV |
|
reserved |
||||
|
|
F8 |
|
Φ8 tower-type interface |
|||
|
RSV |
|
reserved |
||||
|
|
CX |
X meters Cable |
||||
|
RSV |
reserved |
|||||
|
GXPS540 |
1KPa |
0.3 |
4mA |
F6 |
C2 |
Example |

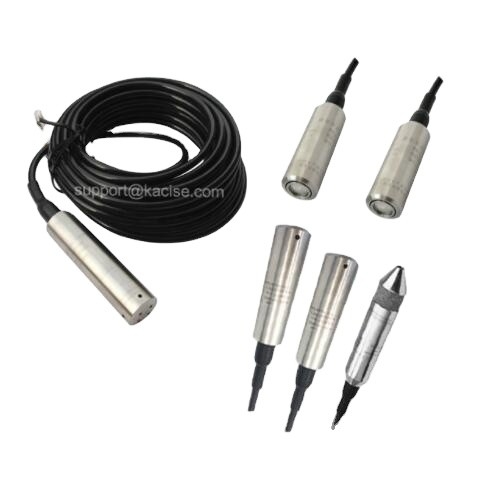

Other low differential pressure sensor for your choice
**************************************************************************************************
