| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | KUF2000 |
| Price: | $80.00 - $480.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 3000 Piece/Pieces per Month negotiable |
| Type: | Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters | Accuracy: | Up To 1.0% |
|---|---|---|---|
| Medium: | Water,sea Water,alcohol,Industrial Waste Water,oil | Output Signal: | Pulse / 4~20mA / RS485 / RS232 /OCT |
| Temperature: | -30~160C | Protection Grade: | IP67 |
| Application: | Water Supply,heating Supply,energy Conservation | Port: | Shanghai Or Other |
| High Light: | Ultrasonic Diesel Fuel Flow Meter,IP67 Diesel Fuel Flow Meter |
||

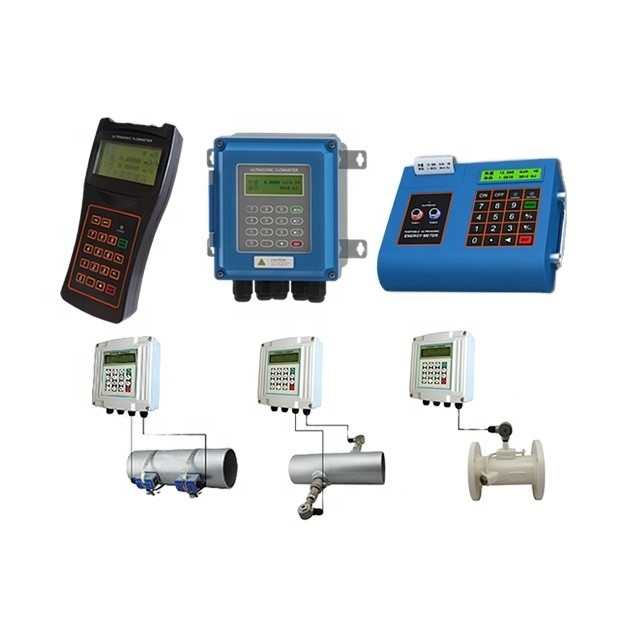

KUF2000 series inline ultrasonic flow meter is consist of the main unit and inline ultrasonic sensor.
The measuring range of π type inline ultrasonic flow meter is D N15mm~DN32mm,by flange connection or thread connection. IP68 protection level. measuring temperature range -30℃~160℃, P/N 0~4.0Mpa, high accuracy within ±0.5%.
The measuring range of Standard inline type ultrasonic flow meter is DN40mm~DN1000mm, with high protection class of IP68, measuring fluid temperature of -30℃~160℃, pressure range of 0~2.5Mpa, high accuracy within ±0.5%.
KUF2000 series is also availble with clamp on sensors. It consists of the meter and clamp on sensor.
The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
|
Items |
Specifications |
|
|
Main unit |
Accuracy |
Better than ±1% |
|
Repeatability |
Better than 0.2% |
|
|
Principle |
Transit-time measuring principle |
|
|
Measurement Period |
500ms |
|
|
Display |
LCD with backlight,display accumulated flow/heat, instantaneous flow/heat, velocity, time etc. |
|
|
|
Output |
Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%. |
|
OCT output: Frequency signal (1~9999HZ) |
||
|
Relay output: over 20 source signal (no signal, reverse flow etc.) |
||
|
RS485 serial port |
||
|
|
Input |
Three analogue input |
|
Three-wire PT100 resistor input (optional) |
||
|
Other functions |
Automatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days |
|
|
pipe |
material |
Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed |
|
Size |
15-6000mm |
|
|
Straight pipe section |
In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter) |
|
|
Liquid |
Types |
Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid |
|
Temperature |
Standard: -30°c - 90°c ,High-temperature:-30°c- 160°c |
|
|
Turbidity |
Less than 10000ppm, with a little bubble |
|
|
|
Flow Direction |
Bi-directional measuring, net flow/heat measuring |
|
Environment |
Temperature |
Main Unit: -30°c - 80°c |
|
Transducer: -40℃ -110℃, Temperature transducer: select on enquiry |
||
|
Humidity |
Main Unit: 85% RH |
|
|
Transducer: water-immersible, water depth less than 3m |
||
|
Cable |
Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m |
|
|
Power Supply |
AC220V or DC24V |
|
|
Power Consumption |
Less than 1.5W |
|
|
Protocols |
MODBUS, M-BUS, Fuji extended protocol and other factory protocol |
|
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Application field, measuring range, output, accuracy, connection and other related parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
