| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | GXPS350 |
| Price: | $125.00 - $390.00/pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week negotiable |
| Usage: | PRESSURE SENSOR | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog SENSOR | Pressure Range: | 0~0.2MPa......60MPa |
| Accuracy: | ±0.5%F.S | Stability: | Typical Value 0.25%F.S/year |
| Working Temperature: | -10°C~60°C | Transmission Method: | ZIGBEE |
| Power Supply: | 3.6V/1battery (1) | Insulation: | >100M Ω @50V |
| Electric Strength: | 500V@60 Second | Pressure Tap: | M20x1.5,G1/4,G1/2,R1/2,NPT1/2 |
| Pressure Type: | Gauge Pressure G,S | Port: | Shanghai Or Other |
| High Light: | Wireless Piezo Fuel Oil Pressure Sensor,0.2MPa Fuel Oil Pressure Sensor |
||
Low consumption wireless piezo fuel oil pressure transducer sensor
1. Specification:
|
Spec. |
Value |
Remark |
|
|
Type |
GXPS350A |
GXPS350B |
|
|
Pressure range |
0~0.2MPa......60MPa |
1MPa=10bar 1bar≈14.5PSI 1PSI=6.8965kPa 1kgf/cm2=1atmosphere pressure 1 atmosphere pressure =98kPa |
|
|
Overload pressure |
1.5times nominal value(1.5X) |
||
|
Fracture pressure |
3times nominal value (3X) |
||
|
Accuracy |
±0.5%F.S |
||
|
Stability |
Typical value 0.25%F.S/year |
||
|
Working temperature |
-10°C~60°C |
||
|
Compensation temperature |
-10°C~60°C |
|
|
|
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
|
|
|
Transmission Method |
ZIGBEE |
|
|
|
Power supply |
3.6V/1battery (1) |
|
|
|
Insulation |
>100M Ω @50V |
|
|
|
electric strength |
500V@60 second |
|
|
|
vibration/Impact |
10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
|
|
|
Display range |
Display not operating |
display:0.001~999999 |
|
|
Pressure tap |
M20×1.5,G1/4,G1/2,R1/2,NPT1/2 |
|
|
|
Pressure type |
Gauge pressure G,S |
Response time:10ms |
|
|
Electromagnetic compatibility |
electromagnetic radiation:EN50081-1/-2;electromagnetic Sensitivity:EN50082-2 |
|
|
2. Feature:
1). Diffused-Silicon core
2). Wireless communication
3). Self Organizing Mesh net
4). Battery power, Low Consumption
5). LCD Indicator
 |
3. Application:
1). Wild field or non power distribution situation
2). Pipeline pressure monitoring
3). Metallurgical chemical

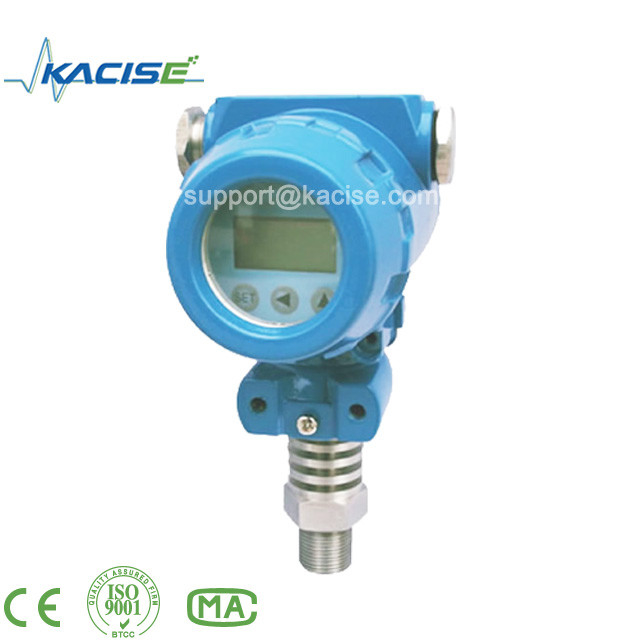

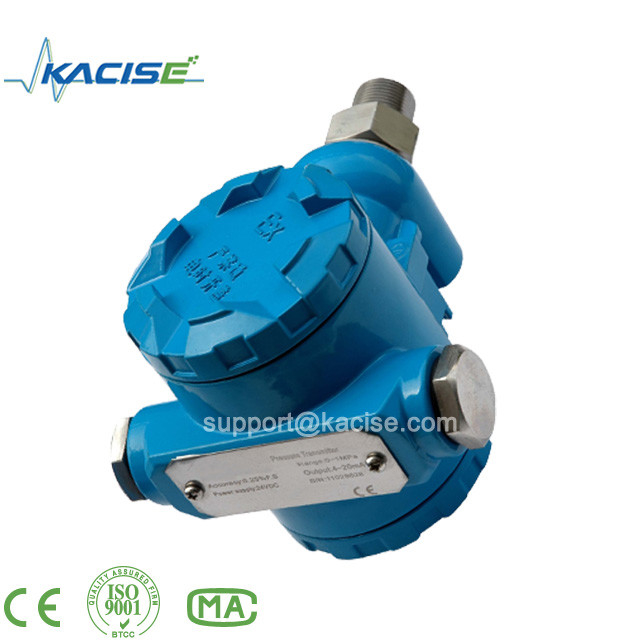

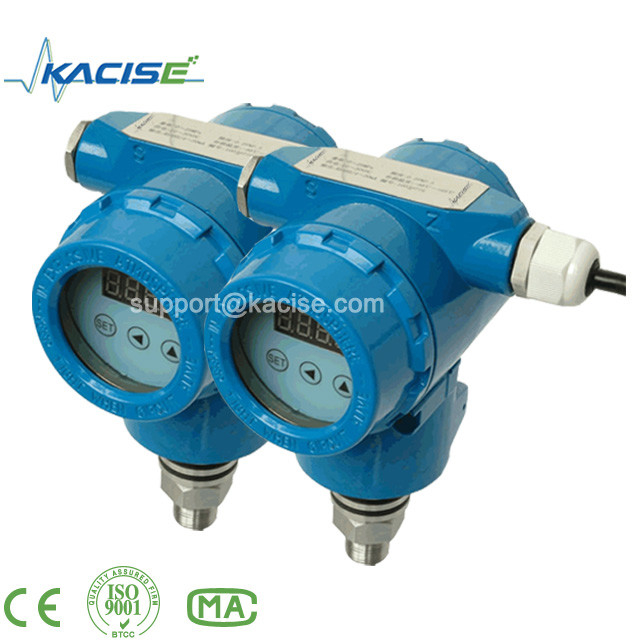

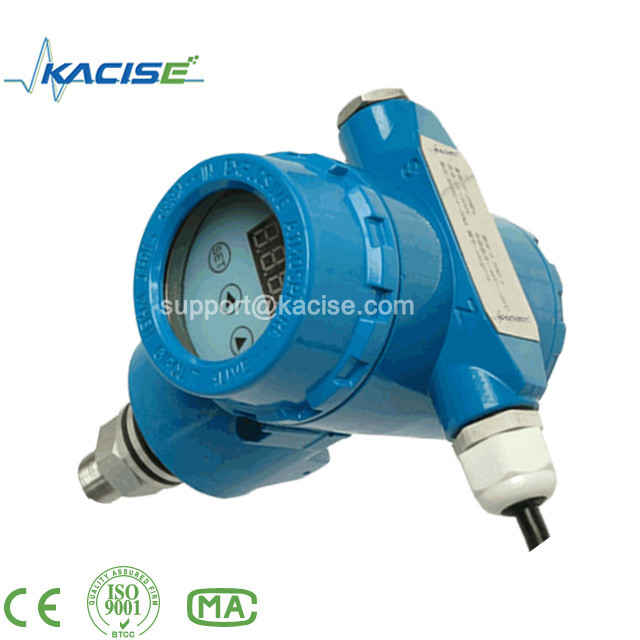

4. Product picture
|
