| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Model Number: | KUS |
| Price: | $50.00 - $180.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 10000 Piece/Pieces per Week ultrasonic sensor distance 10 meter |
| Usage: | Level Sensor | Theory: | Ultrasonic Sensor |
|---|---|---|---|
| Output: | Switching Transducer, RS485, 40-20mA, 0/1-5V, 0/1-10V Optional | Range: | 100mm-60000mm |
| Power Supply: | 12-30VDC | Port: | Shanghai Or Other |
| High Light: | 20mA Ultrasonic Sensor,Fluid Intelligent Ultrasonic Sensor,Intelligent Ultrasonic Level Sensor |
||

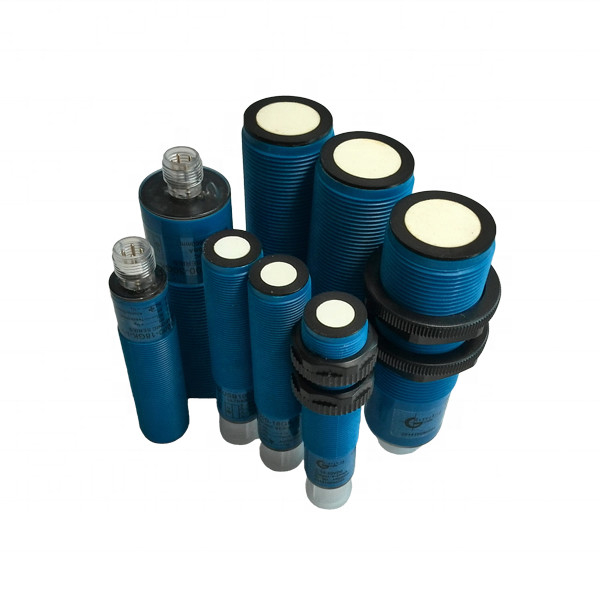

Introduction of ultrasonic sensor distance 10 meter
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC or stainless steel housing, designed to meet IP67 water intrusion. The power 9.0V-28V operation detects objects from 0.1meters to 6 meters. The interface output formats included are analog voltage output, NPN/PNP output and serial digital output.
Applications of wide range ultrasonic sensor
Features of ultrasonic sensor
Parameters
KUS-18M ultrasonic sensor
|
Parameter |
|
|
Sensing range |
Min. 100m, Max.1000mm |
|
Unusable area |
30... 70 mm |
|
Standard target plate |
100 mm x 100 mm |
|
Transducer frequency |
approx.255 kHz ( Can be customized ) |
|
Response delay |
approx.125 ms( Can be customized ) |
|
LED green |
Power on |
|
LED yellow |
solid: object in the evaluation range |
|
flashing: program function |
|
|
LED red |
solid: "fault" |
|
Flashing: program function, no object detected |
|
|
Operating voltage UB |
15 ... 30 V DC , ripple 10 %SS |
|
No-load supply current I0 |
≤ 20 mA |
|
Output type |
1 analog output 0…10V, 0…5V, 4~20mA (selectable) |
|
Resolution |
0.4 mm at max, sensing range |
|
Deviation |
± 1 % of full-scale value |
|
Repeat accuracy |
± 0.5 % of full-scale value |
|
Load impedance |
> 1kOhm |
|
Temperature influence |
± 1.5 % of full-scale value |
|
Ambient temperature |
-25 ... 70 °C (-13 ... 158 °F) |
|
Storage temperature |
-40 ... 85 °C (-40 ... 185 °F) |
|
Connection type |
Device connector M12 x 1 , 4-pin |
|
Protection degree |
IP67 |
KUS-30M ultrasonic sensor
|
General |
|
|
Sensing range |
160 ... 2000mm |
|
Adjustment range |
160 ... 2000 mm |
|
Unusable area |
0 ... 80 mm |
|
Standard target plate |
100 mm x 100 mm |
|
Transducer frequency |
Approx.112 kHz |
|
Response delay |
Approx. 195 ms |
|
Indicators/operating means |
|
|
LED blue |
Power-on |
|
LED yellow |
Indication of the switching state Flashing: program function object detected |
|
LED red |
Permanently red: Error Red, flashing: program function, object not detected |
|
Electrical |
|
|
Operating voltage UB |
10 ... 30 V DC , ripple 10 %SS |
|
No-load supply current I0 |
≤20 mA |
|
Output |
|
|
Output type |
1 analogue output |
|
Resolution |
Evaluation range [mm]/4000, but≥0.35mm |
|
Deviation |
≤ 0.2% of full-scale value |
|
Repeat accuracy |
≤0.1 % of full-scale value |
|
Load impedance |
0…500Ohm |
|
Temperature influence |
≤2% of full-scale value |
|
Ambient conditions |
|
|
Ambient temperature |
-25…70°C(248...343K) |
|
Storage temperature |
-40…85°C(233...358K) |
|
Mechanical |
|
|
Connection |
Device connector M12 x 1 , 4-pin |
|
Protection degree |
IP67 |
|
Material Housing |
Brass, nickel-plated |
|
Transducer |
Epoxy resin/hollow glass sphere mixture, foam polyurethane, cover PBT |
KUS-56M ultrasonic sensor
|
Parameter |
|
|
Range |
0.05~0.5m,0.1~1m,0.2~3m,0.3~5m,0.5~6m |
|
Resolution |
3mm or 0.1%(which is bigger) |
|
Response time |
< 200ms |
|
Display |
LED (OPTIONAL) |
|
Emission angle |
20° |
|
Analog output |
4~20mA/500Ω LOADING |
|
Switch output |
RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL) |
|
RS232/485 |
MODBUS protocol or customized protocol (optional) |
|
Power supply |
Standard 24VDC (±15%) |
|
Ambient temperature |
-20~+60°C
|
|
Protection Class |
IP65 (IP66 is selectable) |
|
Installation |
M56*2 |
KUM Series Intelligent Ultrasonic Level Meter
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
