| Place of Origin: | Shaanxi, China |
| Brand Name: | Kacise |
| Certification: | CE&ROSE |
| Model Number: | KUF2000 |
| Price: | $80.00 - $200.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 3000 Piece/Pieces per Month HQ wireless high pressure portable ultrasonic sea water Flow Met |

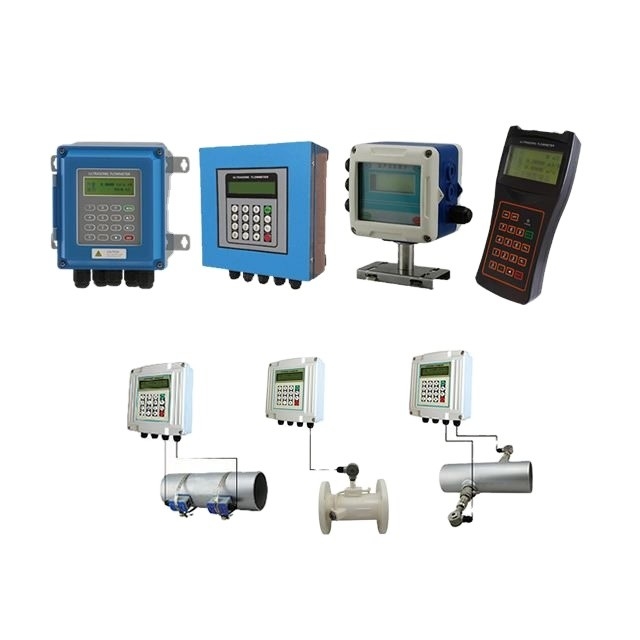

| Name: | HQ Wireless High Pressure Ultrasonic Sea Water Flow Meter | Accuracy: | Up To 1.0% |
|---|---|---|---|
| Power: | DC8~36V Or AC85~264V | Pipe Range: | 15~6000mm |
| Flow Type: | Water,sea Water,industrial Water, Sewage, Etc. | Temperature: | -30~160℃ |
| Flow Rate: | 0~±10m/s | Communication Interface: | RS485 |
| Port: | Shanghai Or Other | ||
| High Light: | Ultrasonic Sea Water Flow Meter,Wireless High Pressure Ultrasonic Flow Meter,6000mm Sea Water Flow Meter |
||
Smart ultrasonic flow meter can be used to measure various kind of fluid in the application field of tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy indurstry. both sensors and the host can be installed at the pipe. also can be used as calorimeter
GXUF-2000 series flow meter usually is used to long-term measure at field. It's easy to use and easy to repairing without cut off the piple,without turn off the fluid.Both the sensor and the host can be installed
on the pipes. The protect grade is Ip68, can be used as calorimeter, if the temperature sensor added
Feature of HQ wireless high pressure ultrasonic water Flow Meter
High flow accuracy
Up to1%
Wide range
Suitable for the pipe with Dn15 toDN6000
High reliability
working life up to 10 years
Robust design
Differential signal driver and reciever, immune to low frequency transformer and Tv signal and power transmission.
huge storage function
Support 512 days and 128 months and 10 years accumulated flow result,Auto save 64 times power on and off time and flow rate.
Auto save 32 days work status of the meter
Remote transmission and net work transmission
Rs485 interface support Mod-bus protocol and easy to support GPRS or Zigbee networking
Easy to used for calorimeter
Can be used as Calorimeter after the temperature sensor installtion
sensors selection depend on the application field parameters such as the diameter of the pipe the fix method the kind of the flow back view of terminal pole front view with cover off back view with cover off 5 Powermodule(optional):AC85-265V Front view. Please refer to the fix method choice chapter for details
Optional temp sensor
| Picture | Description | Type No. | Piperange | Temp | Fix con | Accuracy |
|
3-wire PT100 clamp on type |
TPT1 | >DN50 | 40~160°C | easy |
100°C±0.8°C<0.1°C |
|
3-wire PT100 Plug in type |
PPT1 | >DN50 | 40~160°C | shut flow down | |
|
3-wire PT100 without pressure loss plug in type |
LPT 3 | >DN50 | 40~160°C | easy | |
|
mini 3-wire PT100 plug in type |
MPT 3 | >DN50 | 40~160°C | shut flow down |
Parameters of HQ wireless high pressure ultrasonic water Flow Meter
Application field of HQ wireless high pressure ultrasonic water Flow Meter
Water supply Heat supply Intelligent building Metallurgy Peroleum Powersupply
Packaing Detail: Standard export carton or wooden box.
Pressure transmitter
Differential pressure transducer
Gauge
Controller
Flow meter
Pressure Transducer
Ultrasoinc Transducer
Inertial Navigation Sensors
Level Sensor
Vibration Isolator
We supply high quality flow meter, please let us know your requirements, we will try best to provide most suitable solution for you. Please feel free to send us an inquiry, we will reply you within 24 hours.
