| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-3X36 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Zero Bias Stability（1s，10s） °/h: | ≤0.5 | Zero Bias Repeatability（1s，10s） °/h: | ≤0.5 |
|---|---|---|---|
| Zero Bias Stability At Full Temperature（1s，10s） °/h: | ≤1 | ||
| High Light: | Three Axis Fiber Optic Gyroscope,Digital Output Fiber Optic Gyroscope,Automotive Electronics Accelerometer Gyroscope |
||
The principle of fiber optic gyroscope is an inertial navigation instrument based on optical principle, which uses the characteristics of fiber to measure the rotational angular velocity, so as to achieve the accurate measurement of heading, pitch and roll.

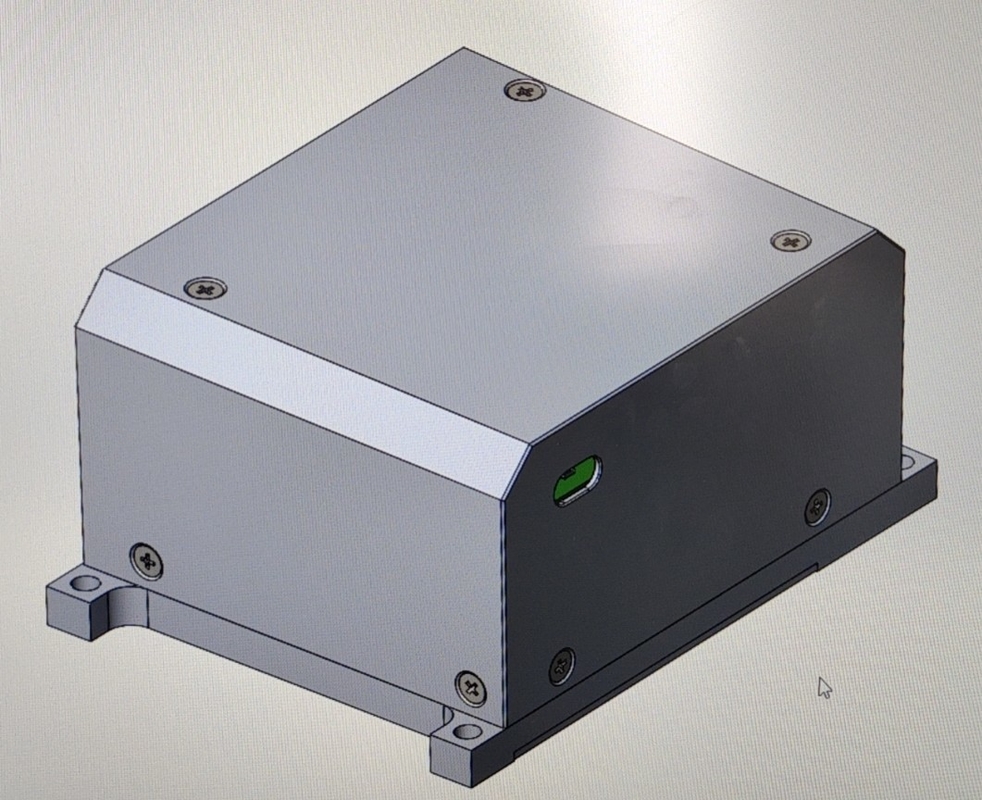

KSFG3X36-1 fiber optic gyro is a low-precision three-axis gyro, as shown in Figure 1, with the advantages of small volume, light weight, no moving parts, high reliability, long life, etc. Its digital output is convenient and integrated with the system, which can be applied to aviation, aerospace, ships, weapons, coal mine measurement, automotive electronics and other fields.

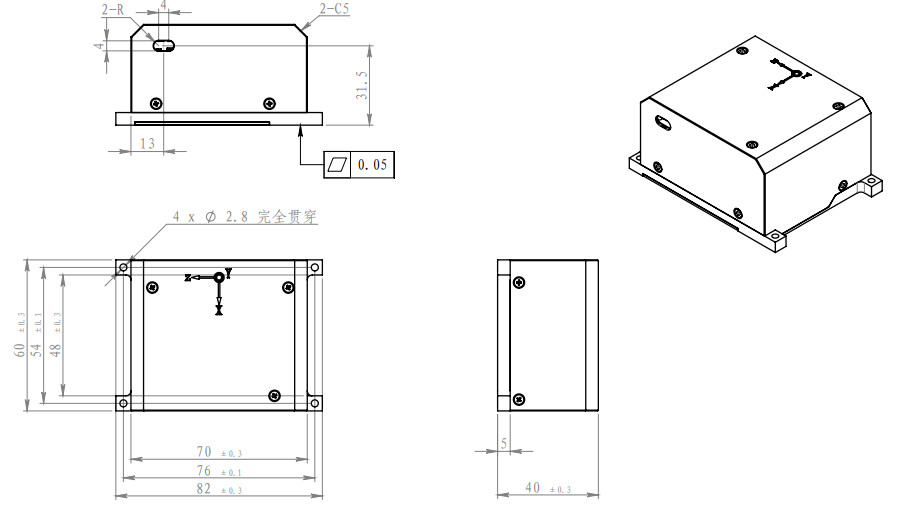

Installation mode Size:60X70X40
The performance indicators achieved by the KS3X36-1 FOG after adding power for 5s are shown in Table 1 below.
| Number | Parameter | Units | I | II |
| 1 | Zero bias stability(1s,10s) | °/h | ≤0.5 | ≤1 |
| 2 | Zero bias repeatability(1s,10s) | °/h | ≤0.5 | ≤1 |
| 3 | Zero bias stability at full temperature(1s,10s) | °/h | ≤1 | ≤2 |
| 4 | Random walk coefficients | °/h1/2 | ≤0.01 | ≤0.1 |
| 5 | Scale factor nonlinearity | ppm | ≤50 | ≤100 |
| 6 | Scale factor asymmetry | ppm | ≤50 | ≤100 |
| 7 | Repeatability of the scale factor | ppm | ≤50 | ≤100 |
| 8 | Full temperature scale factor change | ppm | ≤250 | ≤500 |
| 9 | Range of measurement | °/s | -500~+500 | -500~+500 |
| 10 | bandwidth | Hz | ³500 | ³500 |
| 11 | Steady-state power consumption | W | ≤5.0 | ≤5.0 |
| 12 | Resistance of insulation | MΩ | ＞100 | ＞100 |
| 13 | Operating temperature | ℃ | -40~+60 | -40~+60 |
| 14 | Temperature of storage | ℃ | -50~+75 | -50~+75 |
| 15 | weight | g | ≤300 | ≤300 |
| 16 | Dimensions | mm | 60*70*40 | 60*70*40 |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing.
We supply high quality Turbine Gas Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
