800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value

800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value

  • 800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value
  • 800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value
  • 800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value
800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KSJB3
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Range: ±60g Product Name: Accelerometer Sensor
Bandwidth: 800~2500 Hz Power Supply: 12V-15V
Weight: ≤30g Size: Ф18.2mm X23mm
Operating Temperature: -55°C To +85°C Threshold Value: 5μg
High Light:

800Hz Motion Velocity Sensor

,

Quartz Flexible Velocity Sensor

Product Description:

KSJB3 series quartz flexible accelerometer is a small, high precision, a large number of military inertial navigation level accelerometer, the product has excellent long-term stability, repeatability, starting performance, environmental adaptability and high reliability and other characteristics, can be used for static testing can be used for dynamic testing, is also a standard vibration sensor and inclination sensor.



The product adopts a unique miniaturized design and packaging process, the output current and the force or acceleration are linear, the user can choose the appropriate sampling resistance by calculation, to achieve high precision output. The built-in temperature sensor can be used to compensate the offset value and scale factor to reduce the impact of ambient temperature according to user needs.



Applications: Inertial measurement of military inertial navigation system and vibration isolation test and inclination test of precision instruments and equipment in aerospace, aviation, ships, weapons and other fields.



800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value 0

1．Square flange dimensions

800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value 1

Pin definition:



1, Signal output

2, air

3, power -15V

4, power +15V

5, power and signal ground

6, 7, 8, empty

9, -9V or pt1000

10, +9V or pt1000

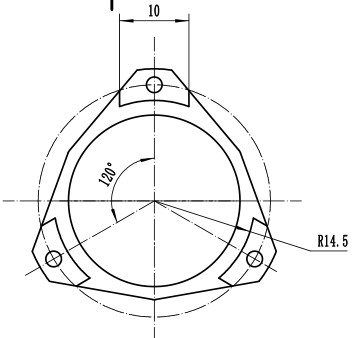

2．Triangular flange dimensions

800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value 2







3．Dimensions of inverted triangle flange

800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value 3800 - 2500 Hz Bandwidth Motion Velocity Sensor With ≤±5 Mg Deviation Value 4

Technical Parameters:

Number Parameters KSJB3-01 KSJB3-02 KSJB3-03
1 Scope ±60g ±60g ±60g
2 Threshold value 5μg 5μg 5μg
3 deviation value K0/K1 ≤±5 mg ≤±7 mg ≤±5 mg
4 scale factor K1 1.0±0.2 mA/g 1.0±0.2 mA/g 0.6±0.2 mA/g
5 Second order nonlinear coefficient K2 ≤±20μg /g2 ≤±30μg /g2 ≤±20μg /g2
6 0g 4 hours short-term stability ≤10 μg ≤20 μg ≤20 μg
7 1g 4 hours short-term stability ≤10 ppm ≤20 ppm ≤20 ppm
8 deviation value synthesis repeatability σK0 (1σ,one month) ≤15 μg ≤50 μg ≤50 μg
9 Scale factor integrated repeatability σK1/K1 (1σ,one month) ≤15ppm ≤50 ppm ≤50ppm
10 Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) ≤±20 μg /g2 ≤±30 μg /g2 ≤±30 μg /g2
11 deviation value Temperature coefficient(The mean value of the whole temperature zone) ≤±15 μg /℃ ≤±50 μg /℃ ≤±50 μg /℃
12 Scale factor Temperature coefficient(The mean value of the whole temperature zone) ≤±15 ppm /℃ ≤±80 ppm /℃ ≤±50 ppm /℃
13 Noise(The sampling resistance is 840Ω) ≤5mv ≤8.4mv ≤8.4mv
14 Natural frequency 350~800 Hz 350~800 Hz 350~800 Hz
15 bandwidth 800~2500 Hz 800~2500 Hz 800~2500 Hz
16 Random vibration 10g(20-2000Hz) 10g(20-2000Hz) 10g(20-2000Hz)
17 strike 150g,4.5ms,1/2sin 150g,4.5ms,1/2sin 150g,4.5ms,1/2sin
18 Operating temperature range -55～+85℃ -55～+85℃ -55～+85℃
19 Storage temperature range -60~+120℃ -60~+120℃ 60~+120℃
20 Power supply ±12~±15V ±12~±15V ±12~±15V
21 Current consumption ≤±20mA ≤±20mA ≤±20mA
22 Temperature sensor User customizable User customizable User customizable
23 dimension Ф18.2X23mm Ф18.2X23mm Ф18.2X23mm
24 weight ≤30g ≤30g ≤30g



Note:



1. Scale factor is adjusted according to user requirements;



2.Temperature sensor: divided into AD590, pt1000, 18B20,



3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;



4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.




Support and Services:

Accelerometer Sensor Technical Support and Service

We provide technical support and service for our Accelerometer Sensor product. Our technical support and service offerings include:

  • Telephone support service
  • Email support service
  • Online chat support service
  • Remote diagnostic and troubleshooting
  • Onsite repair and maintenance
  • Software updates and upgrades

We also provide a comprehensive warranty for our Accelerometer Sensor product. If you have any questions or concerns about our products or services, please contact us.



Packing and Shipping:

Packaging and Shipping of Accelerometer Sensor:

  • Accelerometer Sensor is packaged with an antistatic bag and bubble wrap.
  • The package is then placed in a shipping box with size 5 cm x 5 cm x 5 cm.
  • The package is then sent via a reliable shipping carrier.
