| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSJB6 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dimension: | Ф18.2X16mm | Product Name: | Accelerometer Sensor |
|---|---|---|---|
| Weight: | ≤25g | Bandwidth: | 800~2500 Hz |
| Scope: | ±30g | Power Supply: | 12V-15V |
| Noise: | ≤8mv | Operating Temperature: | -40～180℃ |
| High Light: | 12V Accelerometer Sensor,Small High Temperature Accelerometer,Oil Wells High Temperature Accelerometer |
||

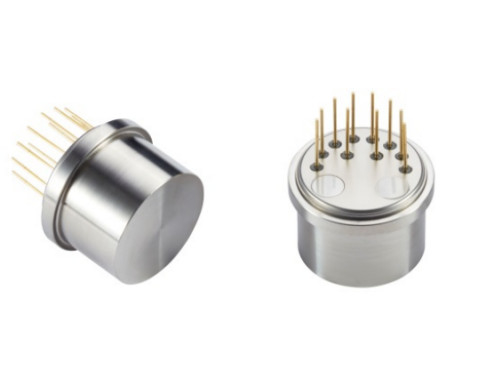

KSJB6 series quartz flexible accelerometer is a miniaturized, high temperature and earthquake resistant accelerometer. The product has excellent repeatability, start-up performance, high temperature and seismic resistance and high reliability. It can be used for static and dynamic testing. It is also a standard vibration sensor.
The product adopts unique miniaturization, high temperature resistance and seismic design, advanced packaging technology and special circuit. The output current of the product is proportional to the input acceleration, and the user can select the appropriate sampling resistance through calculation to achieve high-precision output. And according to user needs built-in temperature sensor, can be used to offset value and scale factor compensation, reduce the impact of ambient temperature. This product has been launched since 2012, and the number of deliveries has reached thousands. After years of application, it has become a mature product, especially for the measurement while drilling of oil drilling.
Applications: oil drilling inclination measurement and vibration isolation test of precision instruments and equipment.

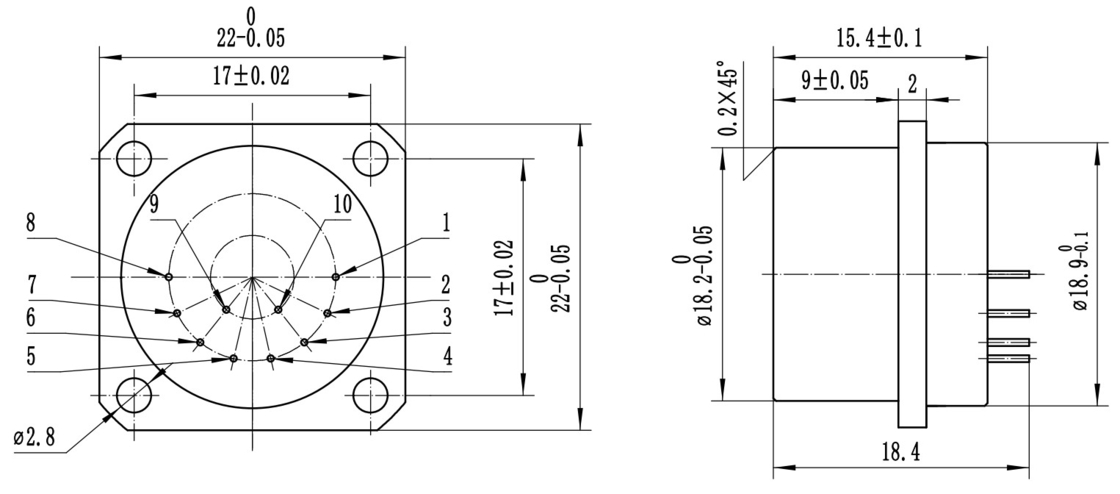

1.JB6-01A and JB6-02A dimensions

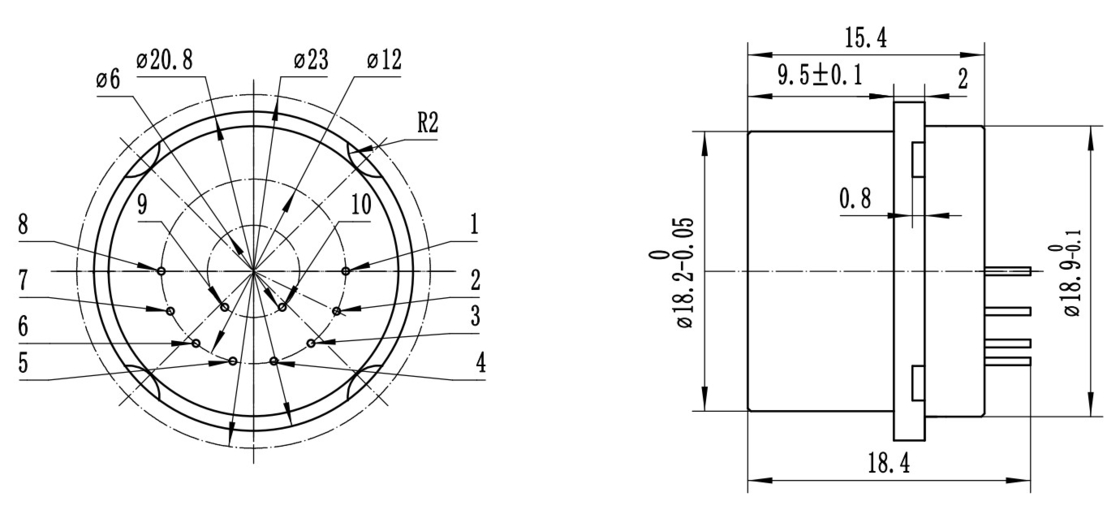

2.JB6-01B and JB6-02B dimensions
Note:
1. Scale factor is adjusted according to user requirements; 2.Temperature sensor: divided into AD590, pt1000, 3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing; 4. Install according to user requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements. |
|---|
We provide technical support and service for our Accelerometer Sensor product. Our team of experts are available 24/7 to answer any questions or concerns you may have regarding installation, use, or maintenance of the product.
We also offer troubleshooting support, as well as software and firmware updates when necessary. Additionally, we provide comprehensive support documentation for our customers, which includes detailed instructions and video tutorials for setup and usage.
If you ever experience any issues or have any questions, please do not hesitate to contact us. We are always here to help you.
The Accelerometer Sensor is securely packaged in a corrugated box to protect it during shipping and handling. The box is designed to fit the product tightly and minimize movement. The packaging also includes cushioning material to absorb any shock.
The Accelerometer Sensor is shipped by reliable carriers such as DHL, FedEx, and UPS. Tracking information is provided to the customer once the product is shipped. Delivery times may vary depending on the destination.
