| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSPA-3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Product Name: | Accelerometer Sensor | Range: | 50g |
|---|---|---|---|
| Frequency Response: | 1～5,000 Hz | Dimension: | 20*20*20mm |
| Noise: | ＜2 Mg | Operating Temperature: | -40～120℃ |
| Shock Resistance: | 2000g | Output Type: | X、Y、Z Triple Output L5 |
| High Light: | Three Axis Piezoelectric Acceleration Sensor,Triaxial Simultaneous Acceleration Sensor |
||

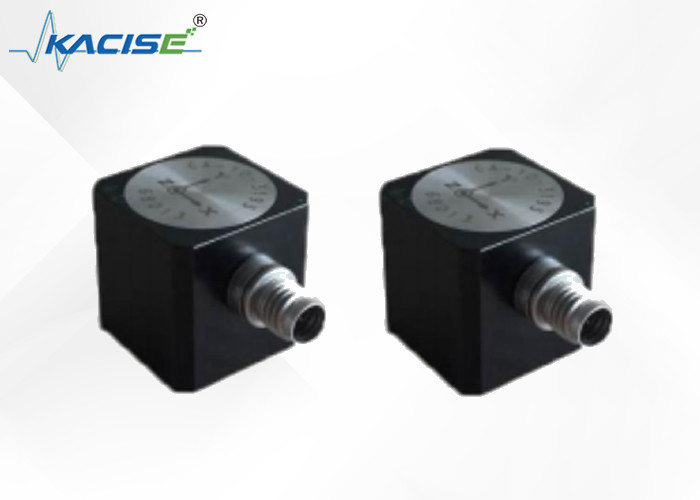

KSPA-3 Three-Axis Piezoelectric Acceleration Sensor is commonly used in measuring vibrations.
Built-in IEPE Pre-amplifier
Triple output with capability of simultaneous measurement in X, Y, and Z axis
Output 3-L5
| Axis Sensitivity | ～100mV/ g |
| Measurement Range (Peak) | 50 g |
| Maximum Cross-Axis Sensitivity | ≤5 ％ |
| Frequency Response(See Frequency Response Curve 0.5dB) | 1～5,000 Hz |
| Resonant Frequency | 15,000 Hz |
| Temperature Response | See Temperature Curve |
| Polarity (Acceleration direction from the bottom to the sensor) | Positive Direction |

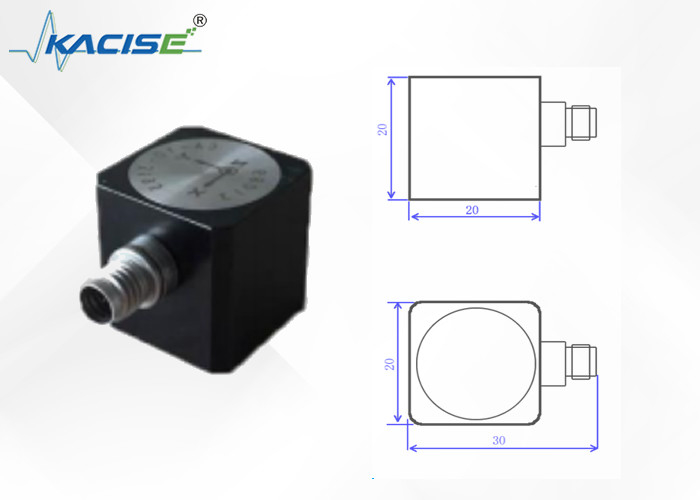

| Dimensions | 20*20*20mm |
| Operating Temperature Range | -40～+120 ℃ |
| Shock Resistance | 2000g |
| Operating Voltage (Constant Current Source): | +18～+30 V(DC) |
| Maximum | +2～+10 mA |
| Maximum Output Signal(Peak) | ≤6V |
| Noise Level | ＜2 mg |
| Output Impedance | ＜100 Ω |
| DC Bias Voltage | 12±2 V |
| Weight | 33 g |
| Casing Material | LC4 |
| Mounting Options | M5 |
| Sensitive Material | PZT-5 |
| Structural Design | Shear |
| Output Type | X,Y,Z Triple output L5 |
| Accessories | 3 pcs |
| Sensor Certificate | Calibration parameters,Frequency response curve |
| M5 Bolt with Protective Cap | 1 pc |
| 2-meter Dual-Ended L5 STYV-1 Cable | 3 pcs |
We are committed to providing our customers with the highest quality of technical support and service regarding our Accelerometer Sensor products. Our team of highly knowledgeable and experienced professionals can help you with any questions you may have about the device, as well as provide guidance and solutions for any issues that may arise.
We have a number of online resources available to assist you in setting up and utilizing your Accelerometer Sensor, including product manuals, installation guides, troubleshooting guides, and FAQs. We also offer technical support via telephone and email. Our team is available to assist you with any questions or issues you may have. We are dedicated to providing you with the best customer service and experience possible.
Packaging and shipping for Accelerometer Sensor:
