| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-70 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bias Drift (°) / H (10s Smooth, Fix Temperature): | ≤0.01 | Bias Repeatability (°) / H: | ≤0.03 |
|---|---|---|---|
| Scale Factor Non-linearity (ppm): | ≤10 | Scale Factor Repeatability (ppm): | ≤10 |
| Start Time (s): | 5 | Dynamic Range (°) / S: | ±500 |
| Operate Temperature ℃: | -40～+70 | Supply Voltage (V): | +5 |
| High Light: | Inertial Navigation Fiber Optic Gyroscopes,Angular Velocity Detection Fiber Optic Gyroscopes,Angular Velocity Detection Electronic Gyroscope Sensor |
||
This device functions as an inertial angle rate sensor, employing the optical Sagnac effect to measure the rotational angular velocity of the carrier along its sensitive axis. It utilizes a digital closed-loop detection circuit to extract the optical path difference resulting from external physical angular speed in the clockwise direction. Modulation and demodulation of the voltage signal from the optical path enable closed-loop feedback and control, facilitating real-time detection of angular velocity signals.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
| Sn# | test item | H | M | L |

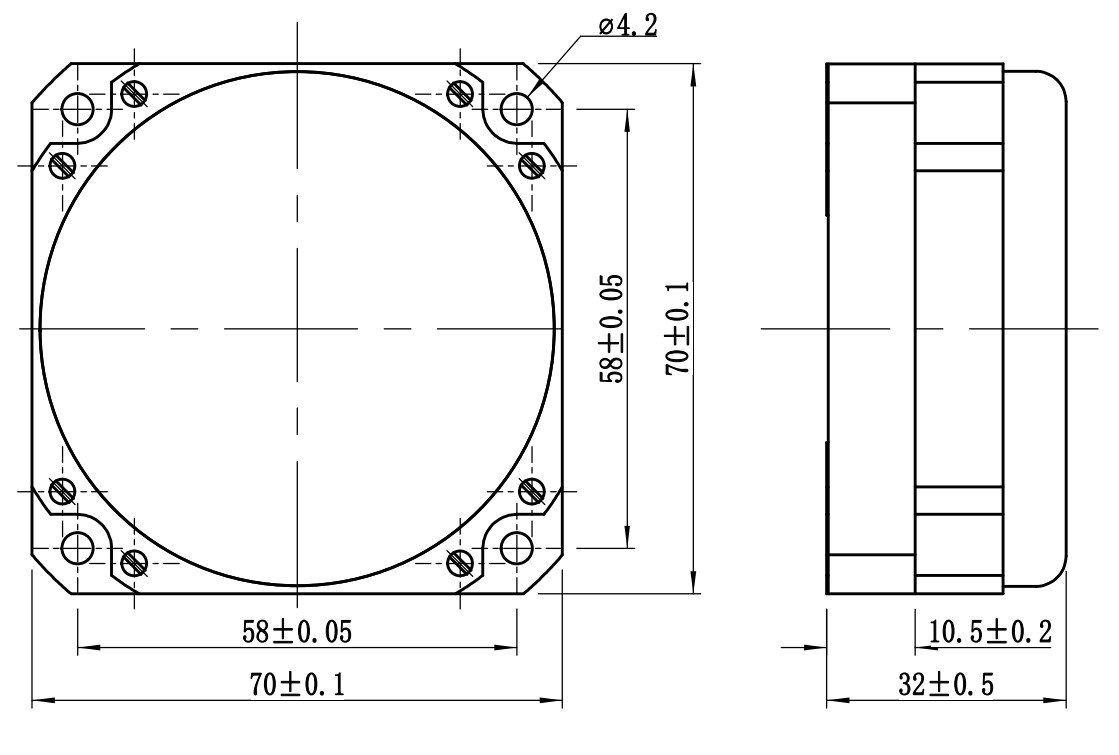

| 1 | Dimensions (mm) | 70×70×32 | 70×70×32 | 70×70×32 |
| 2 | start time (s) | 5 | 5 | 5 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) |
≤0.03 ≤0.01(100smooth) |
≤0.05 | ≤0.3 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.1 | ≤0.15 | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.03 | ≤0.05 | ≤0.3 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.005 | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | ≤50 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | ≤50 |
| 9 | Operate temperature ℃ | -40～+70 | -40～+70 | -40～+70 |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | -45～+80 |
| 11 | Dynamic range (°) / s | ±500 | ±500 | ±500 |
| 12 | Supply voltage (V) | ±5 | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 | <4 |
| 14 | weight (g) | <290 | <290 | <290 |
We provide technical support and services for our Electronic Gyroscope Sensor product. Our technical support staff can provide you with expert advice and assistance in resolving any issues or problems you may have with your Electronic Gyroscope Sensor. We offer a wide range of services including installation, troubleshooting, maintenance, repair, and replacement. We also provide software and firmware updates to ensure your device is always running at peak performance. If you have any questions or concerns, please do not hesitate to contact us. Thank you for choosing our product.
The Electronic Gyroscope Sensor is packaged securely in a box to protect it from damage during shipping. The box contains the sensor, a user manual, and other information and accessories. The box is then placed in a shipping container, which is labeled with the recipient's address.
The shipping container is then sent via an appropriate shipping method, depending on the recipient's location and needs. This could include air, land, or sea freight. The shipping container is tracked throughout its journey to ensure the safe arrival of the Electronic Gyroscope Sensor.
