| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA07 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Threshold: | <1(μg) | Scale Factor: | 1.2 ~ 1.6(mA/g) |
|---|---|---|---|
| Weight: | ≤75(g) | Storage Temperature: | -55~ +80(℃) |
| Scale Factor Temperature Sensitivity: | ≤10 (10-6/℃) | Bias One-month Composite Repeatability: | ≤10(1σ) (μg) |
| Six-month Composite Repeatability: | ≤30 (1σ) (10-6) | Linearity: | ≤10 (μg/g2) |
Progress Report on the Quartz Flexible Pendulum Accelerometer The Quartz Flexible Pendulum Accelerometer represents an advancement in force feedback technology, originating from the conventional liquid floating pendulum accelerometer. A notable departure lies in its detection system: the quartz flexible accelerometer is not suspended but instead elastically connected to a flexible beam support. This unique configuration introduces elastic moments, endowing the accelerometer with heightened accuracy, strong resistance to disturbances, a broad measurement range, and impressive overload capacity.
The present scenario witnesses widespread adoption of quartz flexible pendulum accelerometers in the measurement of various linear and vibration accelerations, along with parameters such as speed, distance, angular velocity, and angular displacement. These accelerometers have proven their efficacy in diverse fields, including military applications such as satellite microgravity measurement systems and high-precision inertial navigation systems, as well as civilian applications like rock-based drilling, oil drilling, continuous inclinometer systems, and the aerospace industry involving launch vehicles, ballistic missiles, and spacecraft.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
|
|---|
| Outline | |
 |
|

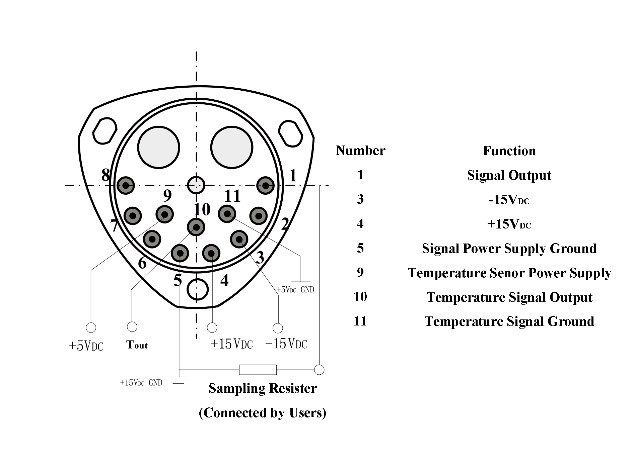

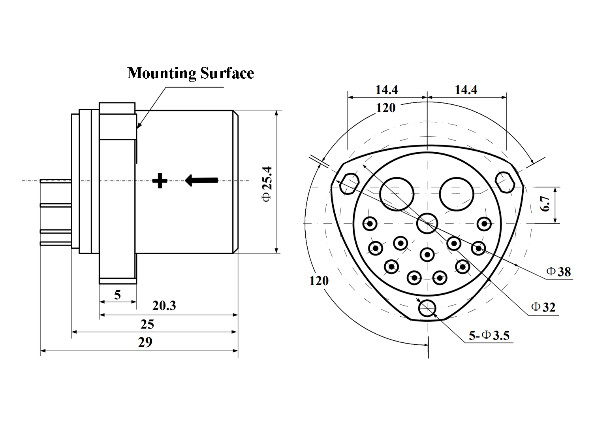

| KSQA07 Configuration Drawings | KSQA07 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
We provide a variety of technical support and service options for our Accelerometer Sensor products. Our knowledgeable technical support staff are ready to help you with any questions or issues you may have.
If you have any questions or need assistance with our Accelerometer Sensor products, please contact us at support@example.com.
The packaging and shipping for the Accelerometer Sensor should include the following:
