| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA08 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Resolution: | <1(μg) | Vibration Peak Sine: | 15g@20Hz ~ 2000Hz |
|---|---|---|---|
| Scale Factor Temperature Sensitivity: | ≤10 (ppm/℃) | Operating Temperature: | -45 ~ +80(℃) |
| Linearity: | ≤10 (μg/g2) | Input Voltage: | ±12 ~ ±18(V) |
| Shock: | 100g, Half-sine, 8ms ~ 12ms | Range: | ±20g |
| Scale Factor: | 1.2~1.6mA/g |

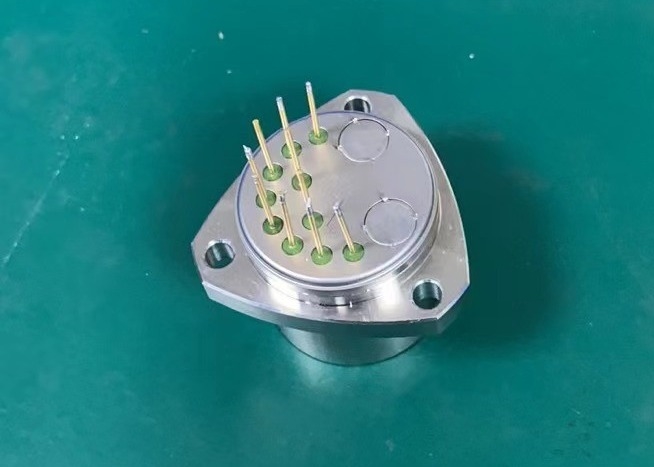

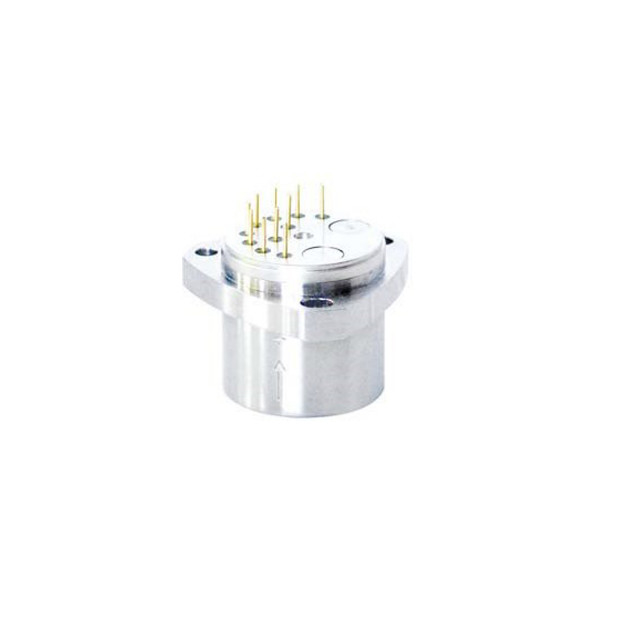

Quartz accelerometers, a precision instrument crafted with a quartz flexible support and an advanced circuit rooted in the principle of inertia, feature high output impedance. Users have the flexibility to select the appropriate sampling resistor without compromising system stability. With a singular axis for measuring acceleration, these accelerometers offer superior performance in high temperatures and anti-vibration capabilities. It is imperative to handle them with care and avoid any accidental drops.
Quartz accelerometers find extensive applications across diverse sectors, including automotive and aerospace industries, as well as consumer electronics and navigation systems. Their pivotal role lies in the precise measurement of acceleration, tilt, and vibration, furnishing indispensable data for motion sensing and control.
● Analog output
● Excellent index repeatability
● Build-in temperature sensor available according to needs
● Wide load resistance range
● Triangle precision mounting flanges
● Application in satellite control unit, microgravity measurement device and inertial navigation system in the manned reentry capsule
|
|---|
 |
|

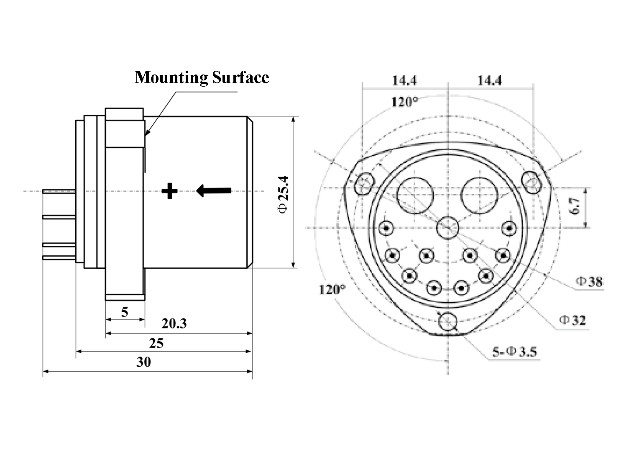

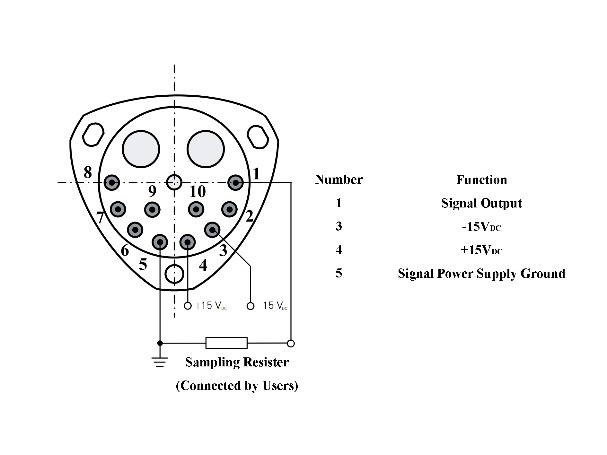

| KSQA08 Configuration Drawings | KSQA08 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
The Kacise KSQA08 Accelerometer Sensor can be used for vibration measurement in industrial, automotive or medical applications. In industrial applications, the sensor can be used to measure vibrations in machinery, to detect faults in production lines, and to monitor the performance of pumps, engines, and motors. In automotive applications, it can be used to detect vibrations in engines, transmissions, and suspension systems. In medical applications, it can be used to measure vibrations in medical instruments and to monitor patient movement.
The Kacise KSQA08 Accelerometer Sensor is built to resist extreme temperatures and shock, making it ideal for harsh environments. It is certified with a certificate of explosion-proof and CE. The minimum order quantity is 1pcs and each unit has individual box and all boxes are packed in standard packages or customers requests available.
Our team of experienced engineers and technicians are available to answer any technical questions you may have about our Accelerometer Sensor. We can also provide advice and guidance on the best setup and configuration for your specific needs.
If you ever encounter any issues with our Accelerometer Sensor, our team of technical support staff are on hand to provide assistance. We will work with you to diagnose the problem and find the best solution. Our team can also provide repair and replacement services to ensure your Accelerometer Sensor is working correctly.
The Accelerometer Sensor is carefully packaged and shipped in a custom-designed box, with sufficient cushioning material to protect the product and ensure it arrives safely.
The box is designed to fit the Accelerometer Sensor snugly, and is reinforced with additional cardboard and packing tape to prevent any damage during shipping.
The box is marked with the appropriate shipping labels, including a barcode for tracking the package during transit.
The Accelerometer Sensor is shipped with a tracking number, and the customer will be notified when the package has been shipped and when it is expected to arrive.
