| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA09 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bias One-month Composite Repeatability: | ≤30(1σ) (μg) | Linearity: | ≤40 (μg/g2) |
|---|---|---|---|
| Scale Factor Temperature Sensitivity: | ≤50 (ppm/℃) | Storage Temperature: | -55~ +80(℃) |
| Threshold: | <5(μg) | Operating Temperature: | -45 ~ +80(℃) |
| Scale Factor: | 0.9 ~ 1.3(mA/g) | Bias: | ≤5mg |
| Input Range (g): | ±80(g) |
The operation of accelerometers is not overly complex. They assess acceleration in g units and can be utilized for measurement along one, two, or three planes. Currently, the prevailing choice is the 3-axis accelerometer, characterized by three accelerometers that register acceleration in distinct directions within the X, Y, and Z planes.
There are many kinds of accelerometer sensors according to different ways, among which accelerometers can be divided into three categories of high precision, medium precision and low precision according to measurement accuracy. With the development of market demand and micro-acceleration sensors, MEMS accelerometers will be widely used in the field of medium and low precision, and the mechanical quartz flexible accelerometers are still mainly used in the field of high precision. Quartz flexible accelerometer, as a classic high-precision mechanical pendulum accelerometer, is one of the key components in the field of high-precision applications.
Product Feature:
● Analog output ● Excellent index repeatability ● Build-in temperature sensor available according to needs ● Wide load resistance range ● Triangle precision mounting flanges ● Application in satellite control unit, microgravity measurement device and inertial navigation system in the manned reentry capsule Technical Parameters:
|
|---|
| Outline | |
 |
|

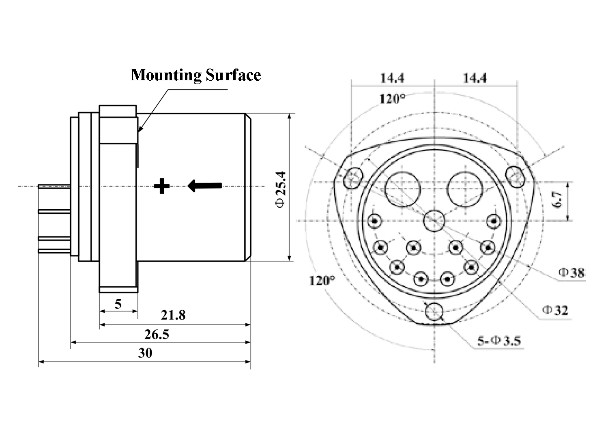

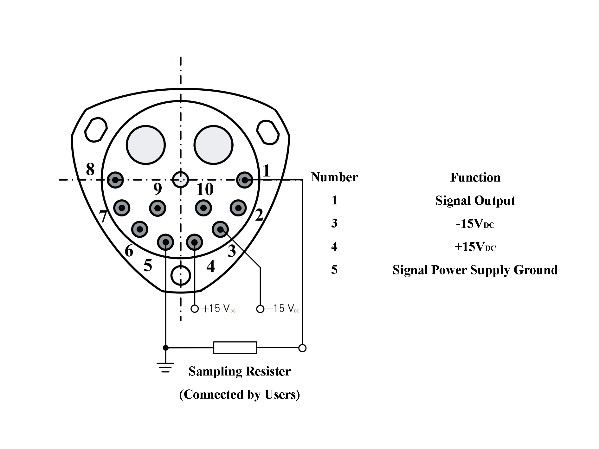

| KSQA09 Configuration Drawings | KSQA09 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 20g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
We offer technical support and services for our Accelerometer Sensor products.
Our team of experienced engineers is ready to help you with any issue you may have. Please feel free to contact us for any questions you may have.
Packaging and Shipping for Accelerometer Sensor:
