| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA10 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Input Voltage: | ±12 ~ ±18(V) | Bias Temperature Sensitivity: | ≤30(μg/℃) |
|---|---|---|---|
| Bias One-month Composite Repeatability: | ≤30(1σ) (μg) | Scale Factor One-month Composite Repeatability: | ≤30 (1σ) (ppm) |
| Threshold: | <5(μg) | Bias: | ≤5mg |
| Linearity: | ≤15 (μg/g2) | Scale Factor Temperature Sensitivity: | ≤30 (ppm/℃) |
Accelerometers operate in a fairly straightforward manner. They gauge acceleration in units of g and can be employed on one, two, or three axes. Presently, the 3-axis accelerometer is the most prevalent, comprising three accelerometers that measure acceleration along distinct directions in the X, Y, and Z planes.
Accelerometer sensors come in numerous varieties depending on their specifications. One classification divides accelerometers into three groups—high precision, medium precision, and low precision—based on their measurement accuracy. As market requirements progress and micro-acceleration sensor technologies advance, MEMS accelerometers are anticipated to see extensive use in medium and low precision applications, while high-precision contexts will predominantly feature mechanical quartz flexible accelerometers. The quartz flexible accelerometer, a traditional high-precision mechanical pendulum accelerometer, plays a central role in high-precision applications.
● Analog output
● Excellent index repeatability
● Build-in temperature sensor available according to needs
● Wide load resistance range
● Square precision mounting flanges
● Application in engineering applications
| Performance | KSQA10A | KSQA10B |
| Input Range (g) | ±20 | ±20 |
| Bias (mg) | ≤5 | ≤5 |
| Temperature Sensitivity (μg/℃) | ≤30 | ≤50 |
| One-month Composite Repeatability (1σ) (μg) | ≤30 | ≤50 |
| Scale Factor (mA/g) | 1.2 ~ 1.6 | 1.2 ~ 1.6 |
| Temperature Sensitivity (10-6/℃) | ≤30 | ≤80 |
| One-month Composite Repeatability (1σ) (10-6) | ≤30 | ≤50 |
| Linearity (μg/g2) | ≤15 | ≤40 |
| Threshold (μg) | Less than 5 | Less than 5 |
| Resolution (μg) | Less than 5 | Less than 5 |
| Input Voltage (V) | ±12 ~ ±18 | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +80 | -45 ~ +80 |
| Size (mm) | Ø25.4×32 | Ø25.4×32 |
| Weight (g) | ≤70 | ≤70 |
| Outline | |
 |
|

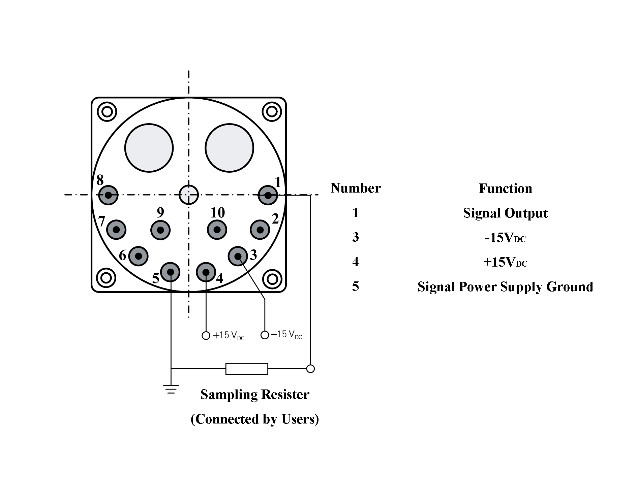

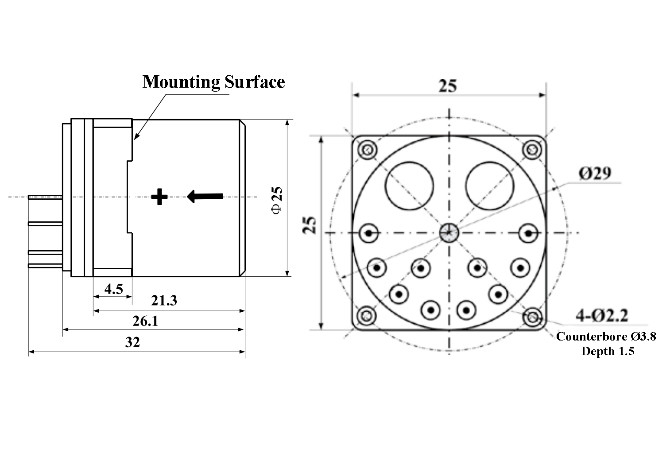

| KSQA10 Configuration Drawings | KSQA10 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
Accelerometer Sensor Technical Support and Service
We provide technical support and services for our Accelerometer Sensor products.If you have any questions or concerns about our Accelerometer Sensor products, please contact us.
The Accelerometer Sensor is packaged in anti-static bags, and placed in a cardboard box for shipment.
When shipped, the cardboard box is sealed with packing tape and placed in a shipping box. The shipping box is then marked with the customer's address and the shipment details.
We offer both air and ground shipping as well as international shipping.
