| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA12 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Scale Factor One-month Composite Repeatability: | ≤40 (1σ) (ppm) | Threshold: | ≤5(μg) |
|---|---|---|---|
| Bias Temperature Sensitivity: | ≤40(μg/℃) | Bias One-month Composite Repeatability: | ≤40(1σ) (μg) |
| Shock: | 100g, Half-sine, 8ms ~ 12ms | Storage Temperature: | -55~ +80(℃) |
| Scale Factor Temperature Sensitivity: | ≤60 (ppm/℃) | Input Voltage: | ±12 ~ ±18(V) |
| Weight: | ≤35(g) | ||
| High Light: | Aerospace Industry Quartz Accelerometers,Lightweight Accelerometer Sensor,UAV Acceleration Measurement Unit |
||
The quartz accelerometer, constructed from high-grade quartz material, surpasses metal counterparts due to superior material performance and heightened fatigue resistance. This results in superior accuracy, strong anti-disturbance capabilities, an extensive measuring range, and robust overload resistance. Quartz accelerometers are presently widely employed for measuring various parameters such as linear acceleration, vibration acceleration, speed, distance, angular velocity, and angular displacement. Noteworthy applications include the oil logging field, inertial navigation system field, and aerospace field.
● Small size and light weight
● Analog output
● Wide load resistance range
● Square precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
| Performance | KSQA12A | KSQA12B |
| Input Range (g) | ±80 | ±30 |
| Bias (mg) | ≤5 | ≤5 |
| Temperature Sensitivity (μg/℃) | ≤40 | ≤50 |
| One-month Composite Repeatability (1σ) (μg) | ≤40 | ≤80 |
| Scale Factor (mA/g) | 0.6 ~ 1.3 | 0.9 ~ 1.3 |
| Temperature Sensitivity (10-6/℃) | ≤60 | ≤60 |
| One-month Composite Repeatability (1σ) (10-6) | ≤40 | ≤80 |
| Linearity (μg/g2) | ≤50 | ≤50 |
| Threshold (μg) | Less than 5 | Less than 5 |
| Resolution (μg) | Less than 5 | Less than 5 |
| Input Voltage (V) | ±12 ~ ±18 | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +80 | -45 ~ +80 |
| Size (mm) | Ø18.2×23.6 | Ø18.2×23.6 |
| Weight (g) | ≤35 | ≤35 |
 |
|

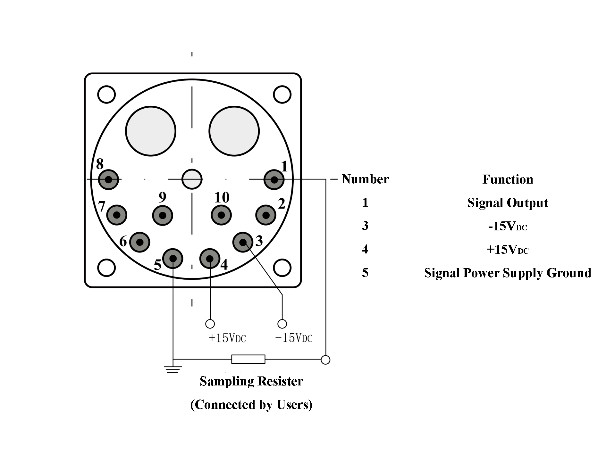

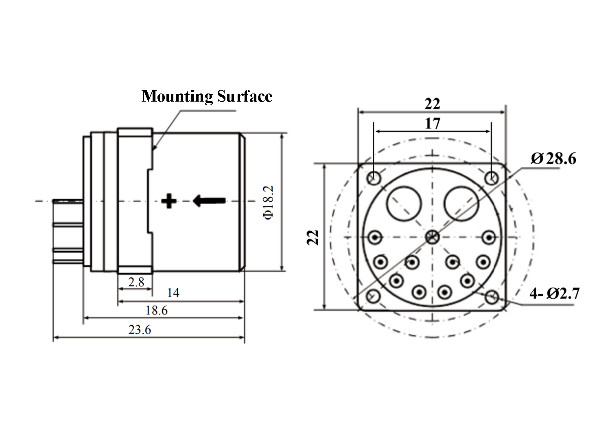

| KSQA12 Configuration Drawings | KSQA12 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |

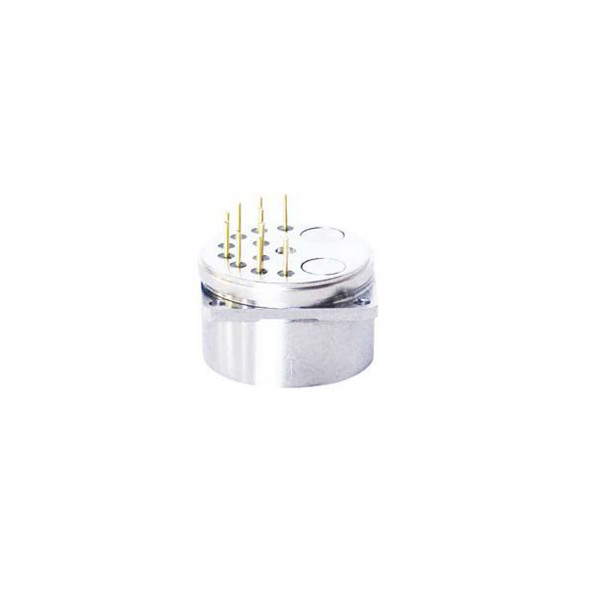

Kacise KSQA12 Linear Acceleration Meter is a motion velocity sensor that can detect accelerations in three axes. It is a compact device certified with explosion-proof and CE, and weighs only ≤35(g). The range of the device is ±80g with bias temperature sensitivity ≤40(μg/℃) and resolution ≤5(μg). It has excellent linearity with ≤50 (μg/g2).
Kacise KSQA12 Linear Acceleration Meter is an ideal choice for a wide range of applications, such as automotive, aircrafts, medical, and industrial. It is suitable for controlling and monitoring industrial machines and equipments, as well as detecting and analyzing vibration and shock in a high-frequency environment. It is also widely used for safety protection in the automotive industry, as well as research and development in engineering.
The minimum order quantity is 1pcs and the delivery time is 5-8 working days. Payment terms include T/T, Western Union or MoneyGram. Kacise KSQA12 Linear Acceleration Meter is able to provide up to 1000 pieces per week, and each unit has individual box and all boxes are packed in standard packages or customers requests available.
Accelerometer Sensor Technical Support and Service
We provide technical and service support for our Accelerometer Sensors. Our technical support team is available 24/7 to answer any questions and provide troubleshooting assistance. Additionally, our service team can provide repair and maintenance services for any Accelerometer Sensor.
Our technical support team can answer any inquiries related to product installation, operation, maintenance, and troubleshooting. We also provide one-on-one consultation services with our experienced engineers.
Our service team is also available 24/7 for repair and maintenance services for Accelerometer Sensors. We provide fast, efficient, and cost-effective repair services and can replace any defective parts.
For any technical and service support inquiries, please contact us at support@example.com.
The Accelerometer Sensor is securely packaged in a rigid box to protect it from damage during transit. The box is filled with protective foam cushioning to ensure the product is not damaged during shipment.
The Accelerometer Sensor is shipped via a reliable and traceable shipping method with tracking number provided to customers for easy tracking.
