| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG02D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Zero-bias Stability: | ≤0.5allan Deviation(deg/h) | Power Dissipation: | ≤1(W @5V DC) |
|---|---|---|---|
| Zero-bias: | ≤±0.1(In 500°/s)(deg/s) | Operating Temperature: | -40~+80(°C) |
| Data Updating Rate(can Set): | 2000(Hz@460800) | Power: | DC5(V) |
| Random Walk: | 0.15(°/√h) | Nonlinearity: | ≤0.05(%FR) |
| High Light: | 2000Hz Mems Gyroscope Sensor,-40~+80(°C) Mems Gyroscope Sensor,DC5V Mems Gyroscope Sensor |
||

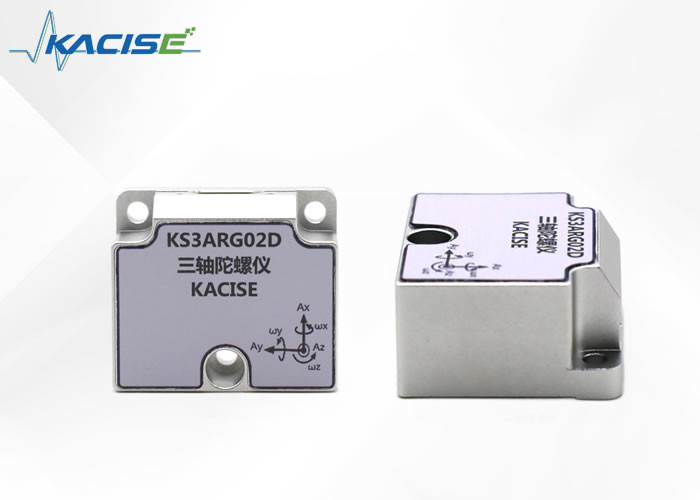

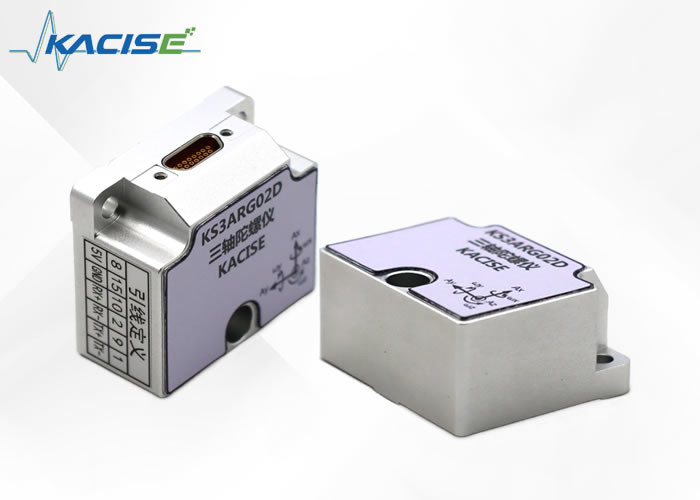

The KS3ARG02D series solid state angular rate sensor , also known as a gyro, is an advanced device designed to measure angular velocity. This sensor stands out due to its use of cutting-edge micromechanoelectronic systems (MEMS) technology chips. These chips are created through a sophisticated manufacturing process that incorporates bipolar metal oxide semiconductor (BIMOS) technology, coupled with a unique spherical grid arrangement for current carrier welding.
Renowned for its heavy-duty performance, the KS3ARG02D series guarantees high reliability and superior package ruggedness . It's equipped with an intrinsic Self-Test feature, enabling the sensor to conduct in-system diagnostics or Built-In Testing (BIT) , ensuring continued precision and safety in various applications.
Additionally, this product encompasses several specialized characteristics, such as zero bias calibration , temperature drift compensation , a wide measurement range , and broad bandwidth . It also incorporates non-linear corrections to enhance measurement accuracy. The sensor operates effectively across a wide temperature range and boasts a compact size , lightweight build, and an impressive resistance to high-impact accelerations.
Dimensions
| Performance parameter | KS3ARG02D | |
| gyro |
range (deg/s) |
±500(triaxial) |
| Zero-bias(deg/s) | ≤±0.1(In 500°/s) | |
| Zero-bias stability(deg/h) | ≤0.5allan deviation | |
| Zero-bias repeatability(deg/s) | ≤0.05 | |
| nonlinearity(%FR) | ≤0.05 | |
| Random walk(°/√h) | 0.15 | |
| Mean time between failures(Kh MTBF) | 10 | |
| Interface characteristic | power(V) | DC5 |
| power dissipation(W @5V DC) | ≤1 | |
| electrical interface | RS422 | |
| data updating rate(can set) | 2000(Hz@460800) | |
| operating environment | operating temperature(°C) | -40~+80 |
| storage temperature(°C) | -55~+85 | |
| Vibration(g @ 20~2000 Hz) | 6.06 | |
| Shock(g , 0.1 ms, 1/2 Sine) | 5000 | |
| physical property | Size(mm) | 45×39×20 |
| Weight(g) | ≤60 | |
The Kacise KS3ARG02D electronic gyroscope sensor, originating from China (Mainland), is an advanced and reliable solution for a multitude of applications that require precise motion detection and measurement. This mems gyro sensor is designed to cater to a wide measurement range, ensuring accuracy and stability in various conditions. With its explosion-proof certification and CE mark, the KS3ARG02D is suitable for use in environments where safety and compliance are of utmost importance.
One of the key application occasions for the Kacise KS3ARG02D is in the field of geological exploration. The sensor's robust design and exceptional zero-bias stability of ≤0.5allan Deviation(deg/h) allow it to perform reliably even in the most demanding terrains and temperatures ranging from -40 to +80°C. Its precision in detecting orientation changes makes it an indispensable tool for surveying and mapping geological formations, contributing to more accurate data collection and analysis.
Furthermore, the Kacise KS3ARG02D boasts a low power dissipation of ≤1(W @5V DC) and a light weight of ≤60100(g), which makes it an excellent choice for portable and battery-powered devices. The sensor's minimal zero-bias of ≤±0.1(In 500°/s)(deg/s) ensures that the measurements are not only precise but also consistent over time, which is critical for applications such as unmanned aerial vehicles (UAVs), robotics, and stabilization platforms.
The Kacise brand is committed to providing its customers with high-quality products that are both reliable and efficient. With a minimum order quantity of just one piece, the KS3ARG02D gyro sensor is accessible to both small and large-scale projects. Each unit is carefully packaged in its own box, with standard packages ensuring the safety of the product during shipping. Orders are processed with a prompt delivery time of 5-8 working days, and payment can be conveniently made through T/T, Western Union, or MoneyGram.
With a supply ability of 1000 pieces per week, Kacise is capable of meeting the demands of various industries, ensuring that whether for professional or academic purposes, the KS3ARG02D gyro sensor is a superb choice for those in need of a high-performance mems gyro sensor with a wide measurement range, especially in the realm of geological exploration.
Welcome to the Product Technical Support and Services page for the Electronic Gyroscope Sensor. Our dedicated team is committed to providing you with the highest quality support to ensure your device functions at its best. We offer a wide range of services to help you get the most out of your sensor, including:
User Manuals and Documentation: Access comprehensive user manuals, data sheets, and detailed product documentation to understand your sensor's capabilities fully and optimize its use.
FAQs and Knowledge Base: Our extensive FAQs and knowledge base contain answers to common questions and provide valuable information to troubleshoot issues quickly and independently.
Our commitment to excellence ensures that you receive the support you need when you need it. For any further assistance, please refer to our contact page for ways to get in touch with our support team.
The Electronic Gyroscope Sensor is carefully packaged in an anti-static bag to ensure electrostatic discharge protection. The bag is then placed inside a cushioned box, specifically designed to fit the sensor securely and prevent any movement that could lead to damage during transit. The box is sealed with tamper-evident tape, providing additional security and peace of mind that the product has not been interfered with.
For shipping, the boxed sensor is further protected by a durable outer carton that is resistant to the rigors of transportation. The carton is filled with environmentally-friendly packing materials that cushion the product from shocks and vibrations. We use a standardized labeling system on the outside of the carton, which includes handling instructions and a barcode for tracking purposes, ensuring that your Electronic Gyroscope Sensor arrives at its destination in pristine condition.
