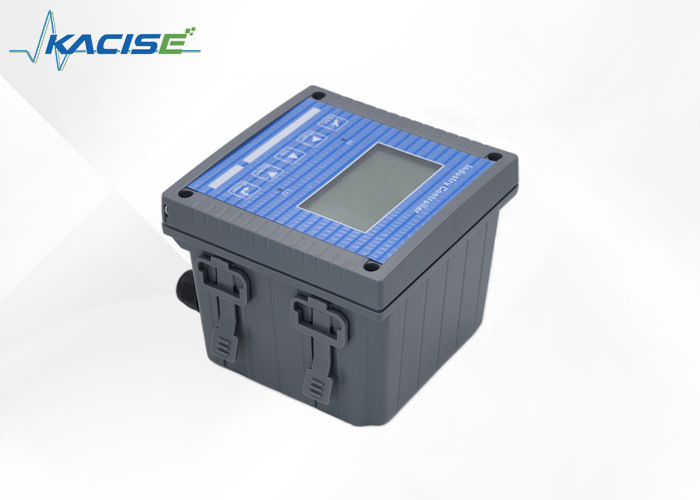

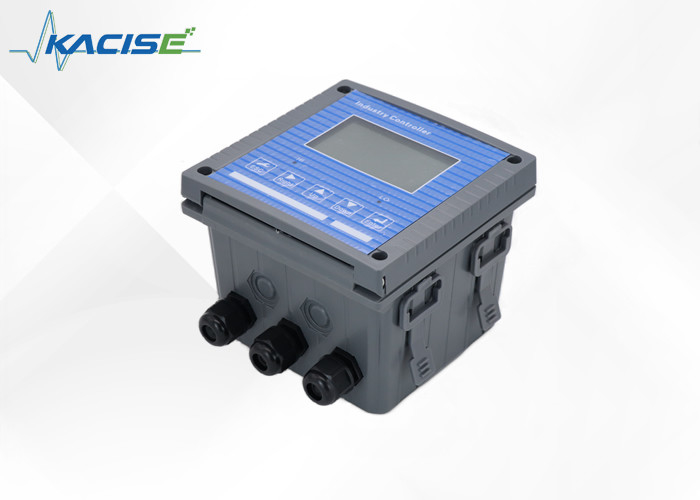

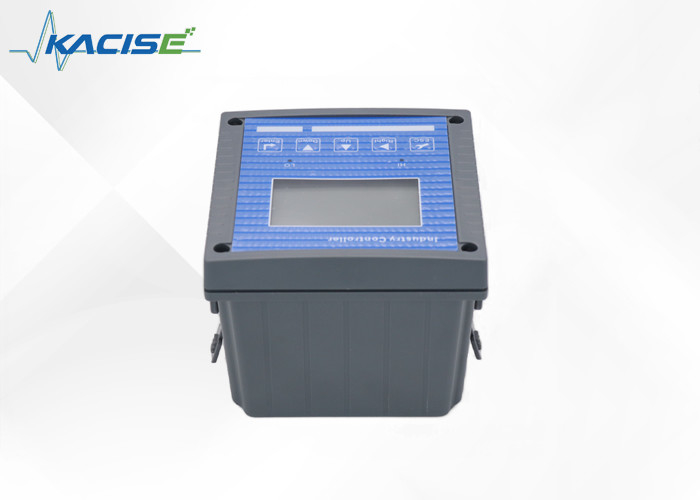

Product Description:
This newly launched intelligent controller, the industrial online infrared CO2 meter, is designed to measure carbon dioxide levels in various industries. It is an advanced product with high intelligence and flexibility and is applicable in a wide range of industries including but not limited to aquaculture, urban sewage treatment plants, electric power, water supply, medicine, chemical industry, and food.
The infrared CO2 meter is specifically designed to provide accurate and real-time readings of carbon dioxide levels. The device's advanced technology enables it to take precise measurements swiftly, making it an ideal device for industrial settings.
The product has numerous features which make it highly convenient and user-friendly. For instance, the device is easy to install, and the intelligent controller can be programmed to suit the user's preferences. The flexibility of this product makes it a top choice for multiple industries.
Features:
- Large screen display interface, eye-catching and convenient
- Digital communication function, isolation technology and strong anti-interference ability.
- Relay alarm setting function, and the hysteresis amount can be adjusted freely to avoid frequent switching of relays.
- Password management function to prevent misoperation by non-professionals
- Menu prompt function to facilitate user operation
- The 4-20mA current output optional.
Technical Parameters:
| Range |
CO2 (0-5000ppm)/or customized |
| Accuracy |
±20ppm or ±5%FS true value, whichever is greater |
| Resolution |
±1ppm |
| Signal output |
RS485 isolated output. (4-20mA output optional) |
| Alarm output |
normally open contact relay (3A/250VAC) |
| Power Supply |
AC 220V |
| Power consumption |
3W |
| Environmental conditions |
Temperature 0～60 ℃
Humidity ≤85%RH
|
| Dimension |
144×144×115mm (height×width×depth) |
| Hole size |
138×138mm (height×width) |
Installation
Combination of sensor and protection tube
Before installation, please check whether the cable appearance is damaged and spread out the cables.
1. When using the immersing sensor, avoid the sensor from hitting the wall or other facilities due to water flow. If the water flow is too fast, the sensor must be fixed.
2. There should not be any obstruction in front of the measuring face. For example, the fluorescence sensor should avoid light exposure.
3. The water depth at which the sensor is installed should not exceed 2 meters from the horizontal plane, and according to water flow fluctuations, the water depth at the installation location should not be less than 30 centimeters. (Can be adjusted according to the measured water body)
4. The sensor should be installed in a location where no bubbles are generated to prevent bubbles from affecting the sensor’s measurement data.
5. Do not use the sensor's own cable to hoist the sensor. Install a cable protection device to prevent the cable breaking due to the great tension between the sensors and cable.
6. The sensor should not be installed with the measuring surface facing up. It can be installed vertically downward or horizontally.
7. If you use this product in a water diversion channel, please consult the company's sales staff to confirm the specific installation requirements.
Sensors and electrical wiring

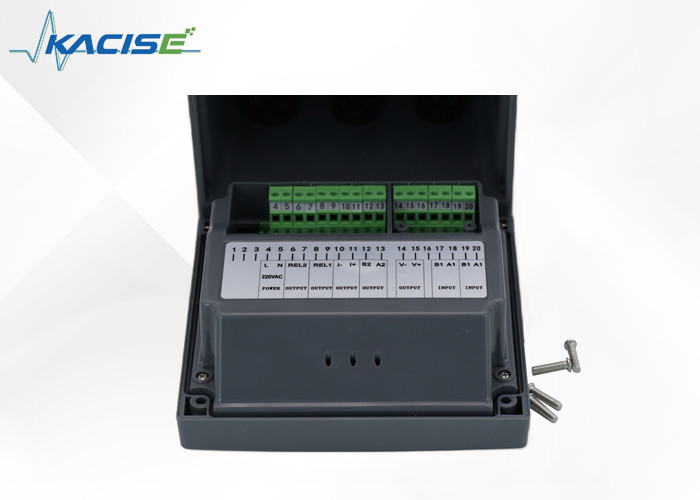

Backplane terminal connection
Notice:
Power supply: 220V
Power consumption: 3W
Relay: withstand voltage 240VAC, maximum current 3A.
1 NC: empty foot
2 NC: empty foot
3 NC: empty foot
4 N: Instrument working power supply 220VAC
5 L: Instrument working power supply 220VAC
6 R2: Low point alarm relay (output)
7 R2: Low point alarm relay (output)
8 R1: High point alarm relay (output)
9 R1: High point alarm relay (output)
10 NC: empty pin (or optional I-: 4-20mA current output-)
11 NC: empty pin (or optional I+: 4-20mA current output+)
12 B2: Output RS485B- (output)
13 A2: Output RS485A+ (output)
14 VO-: Output power supply- (output, connect to the negative pole of the sensor power supply)
15 VO+: Output power + (output, connect to the positive pole of the sensor power supply)
16 NC: empty foot
17 B1: Connect to sensor RS485B- (input)
18 A1: Connect to sensor RS485A+ (input)
19 B1: Connect to sensor RS485B- (input)
20 A1: Connect to sensor RS485A+ (input)
For example:
Applications:
The product is known for its high intelligence and flexibility, making it a popular choice among several industries such as aquaculture, urban sewage treatment plants, electric power, water supply, medicine, chemical industry, food, and many others.
It has become one of the most widely used products due to its ability to seamlessly adapt to varying needs across different industries. The product's intelligent design enables it to solve complex problems with relative ease, which has made it an invaluable asset to many businesses.
From the management of urban sewage to the treatment of industrial wastewater, the product has been used to handle a wide range of water treatment processes. It has also proven to be effective in the food and chemical industry, where it has been used to test and purify various substances.
The product's flexibility is evident in its use in aquaculture, where it has been used to optimize fish production, regulate water temperature and dissolved oxygen levels, and promote the healthy growth of aquatic life.
All in all, the product's versatility and adaptability make it an essential tool for several industries, improving productivity and solving complex challenges.
Customization:
Support and Services:
Our Water Quality Sensor product comes with comprehensive technical support and services to ensure that you can get the most out of your purchase:
- Installation support to help you set up the sensor correctly and efficiently
- Training materials to ensure that you and your team can operate the sensor effectively
- Troubleshooting guides to help you address any issues that may arise with the sensor
- Repair and maintenance services to keep your sensor functioning optimally
- Software updates to ensure that your sensor is always up-to-date and performing at its best
Packing and Shipping:
Product Packaging:
- Water Quality Sensor unit
- USB charging cable
- User manual
Shipping:
- Ships within 2 business days
- Free standard shipping for orders over $50
- Shipping options available at checkout
