Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Model Number: KWC-100C Meter
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: USD150
Packaging Details: Carton
Delivery Time: 5 working days
Payment Terms: 100% TT in advance
Contact Now
Detailed Product Description
Operating Temperature: 0-60℃ Weight: 900g
Product Name: Water Quality Sensor Meter Material: POM
Signal Output: RS485 (4-20mA Output Optional) Power Supply: AC 220V
Application: Water Quality Meter Interface: Analog
High Light:

CO2 Water Sensor Meter

,

Industrial Monitoring Water Sensor Meter

,

Water Sensor Meter with POM

Product Description:

This online infrared CO2 meter is an innovative intelligent controller that is used extensively in various industries, such as aquaculture, urban sewage treatment plants, electric power, water supply, medicine, chemical industry, and food. It is highly intelligent and flexible, making it a valuable product for industrial use.

The advanced technology in this CO2 meter allows for accurate and reliable measurements of CO2 levels. The infrared feature makes it easy to take measurements without any physical contact, which adds to its overall convenience and efficiency. Whether you are treating sewage or monitoring the air quality in food processing plants, this CO2 meter can help you maintain control of your operations.

Additionally, this product is built to be durable and long-lasting. Its sturdy design makes it resistant to damage from water, chemical exposure, and other environmental factors that are common in industrial settings. Moreover, the intelligent controller is user-friendly and easy to operate, providing users with a hassle-free experience.

Overall, the online infrared CO2 meter is an essential tool for any industry that requires precise monitoring of CO2 levels. Its convenience, efficiency, and durability make it a valuable investment for those looking to maintain the highest quality standards in their operations.

Features:

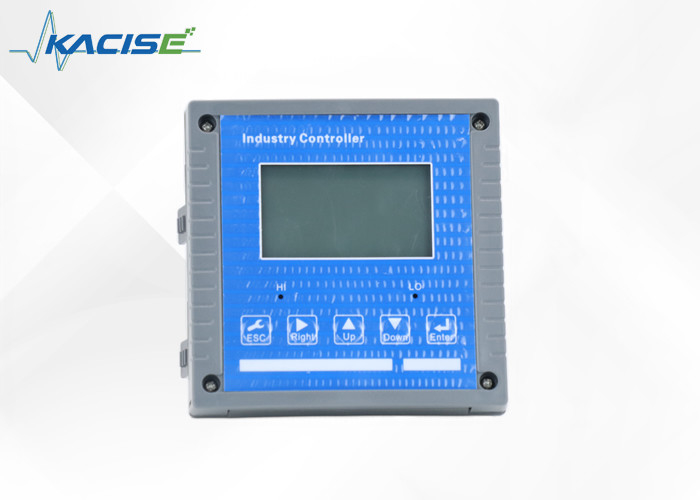

  • Large screen display interface, eye-catching and convenient
  • Digital communication function, isolation technology and strong anti-interference ability.
  • Relay alarm setting function, and the hysteresis amount can be adjusted freely to avoid frequent switching of relays.
  • Password management function to prevent misoperation by non-professionals
  • Menu prompt function to facilitate user operation
  • The 4-20mA current output optional.

Technical Parameters:

Range CO2 (0-5000ppm)/or customized
Accuracy ±20ppm or ±5%FS true value, whichever is greater
Resolution ±1ppm
Signal output RS485 isolated output. (4-20mA output optional)
Alarm output normally open contact relay (3A/250VAC)
Power Supply AC 220V
Power consumption 3W
Environmental conditions

Temperature 0~60 ℃

Humidity ≤85%RH

Dimension 144×144×115mm (height×width×depth)
Hole size 138×138mm (height×width)


Installation

Precision Water Sensor Meter CO2 with POM for Industrial Monitoring Applications 0

Combination of sensor and protection tube



Before installation, please check whether the cable appearance is damaged and spread out the cables.

1. When using the immersing sensor, avoid the sensor from hitting the wall or other facilities due to water flow. If the water flow is too fast, the sensor must be fixed.

2. There should not be any obstruction in front of the measuring face. For example, the fluorescence sensor should avoid light exposure.

3. The water depth at which the sensor is installed should not exceed 2 meters from the horizontal plane, and according to water flow fluctuations, the water depth at the installation location should not be less than 30 centimeters. (Can be adjusted according to the measured water body)

4. The sensor should be installed in a location where no bubbles are generated to prevent bubbles from affecting the sensor’s measurement data.

5. Do not use the sensor's own cable to hoist the sensor. Install a cable protection device to prevent the cable breaking due to the great tension between the sensors and cable.

6. The sensor should not be installed with the measuring surface facing up. It can be installed vertically downward or horizontally.

7. If you use this product in a water diversion channel, please consult the company's sales staff to confirm the specific installation requirements.

Sensors and electrical wiring

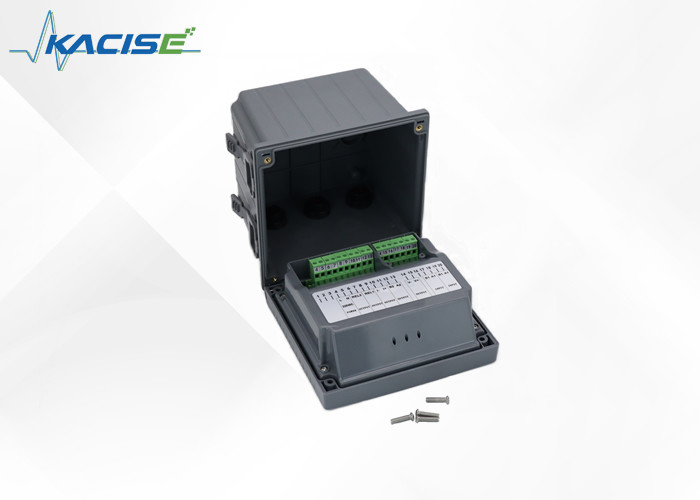

Backplane terminal connection

Notice:

Power supply: 220V

Power consumption: 3W

Relay: withstand voltage 240VAC, maximum current 3A.

Precision Water Sensor Meter CO2 with POM for Industrial Monitoring Applications 1

1 NC: empty foot

2 NC: empty foot

3 NC: empty foot

4 N: Instrument working power supply 220VAC

5 L: Instrument working power supply 220VAC

6 R2: Low point alarm relay (output)

7 R2: Low point alarm relay (output)

8 R1: High point alarm relay (output)

9 R1: High point alarm relay (output)

10 NC: empty pin (or optional I-: 4-20mA current output-)

11 NC: empty pin (or optional I+: 4-20mA current output+)

12 B2: Output RS485B- (output)

13 A2: Output RS485A+ (output)

14 VO-: Output power supply- (output, connect to the negative pole of the sensor power supply)

15 VO+: Output power + (output, connect to the positive pole of the sensor power supply)

16 NC: empty foot

17 B1: Connect to sensor RS485B- (input)

18 A1: Connect to sensor RS485A+ (input)

19 B1: Connect to sensor RS485B- (input)

20 A1: Connect to sensor RS485A+ (input)



For example:

Precision Water Sensor Meter CO2 with POM for Industrial Monitoring Applications 2



Applications:

The product is known for its high level of intelligence and flexibility, and as a result, it has been extensively utilized in various industries such as aquaculture, urban sewage treatment plants, electric power, water supply, medicine, chemical industry, and food, among others.

The versatility of the product makes it an asset in industries where adaptation to different applications is necessary. For instance, in urban sewage treatment plants, it provides a reliable and effective way to treat wastewater. Similarly, in aquaculture, it ensures that water quality is maintained at optimal levels for the growth and survival of aquatic organisms.

The application of the product extends to other industries such as the electric power sector where it is used in power generation and distribution. It is also used in the medical industry to produce high-quality water for medical procedures and the manufacture of drugs. In the food industry, the product ensures that the water used in production is pure and free from contaminants.

Overall, the product's intelligence and flexibility have made it a valuable asset in several industries where water treatment and purification are crucial. Its versatility and adaptability have also made it a popular choice for businesses looking for a reliable solution to their water treatment needs.



Support and Services:



The Water Quality Sensor product technical support and services include:

- Assistance with sensor installation and setup

- Troubleshooting assistance for any issues with the sensor

- Regular maintenance and calibration services to ensure accurate readings

- Software updates and upgrades to improve functionality

- Warranty support for any defects or malfunctions

- Access to online resources such as user manuals and FAQs
