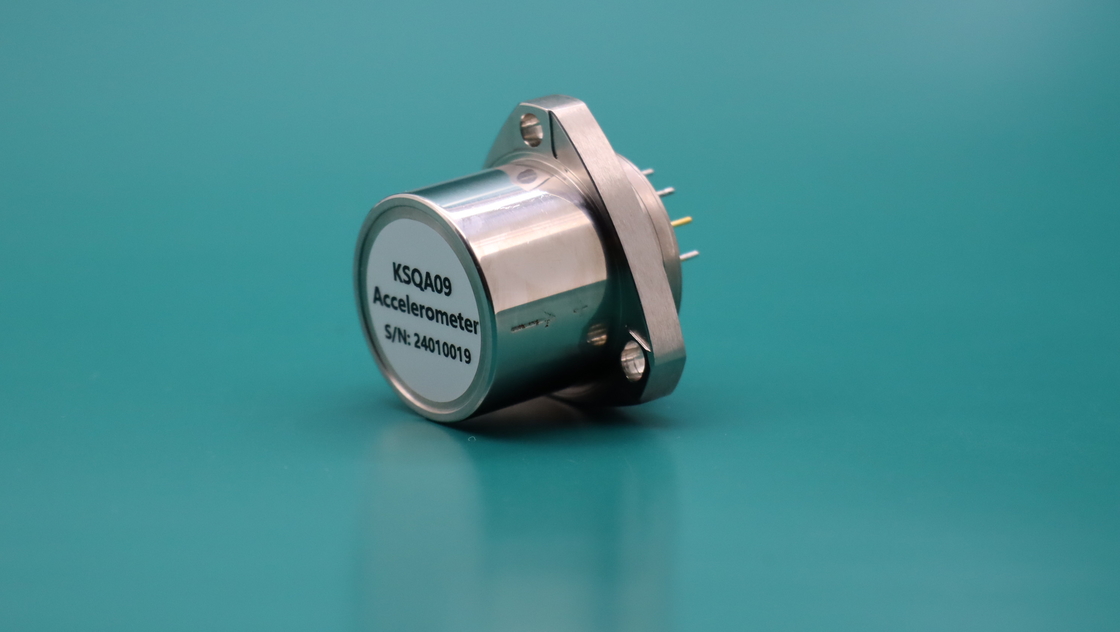

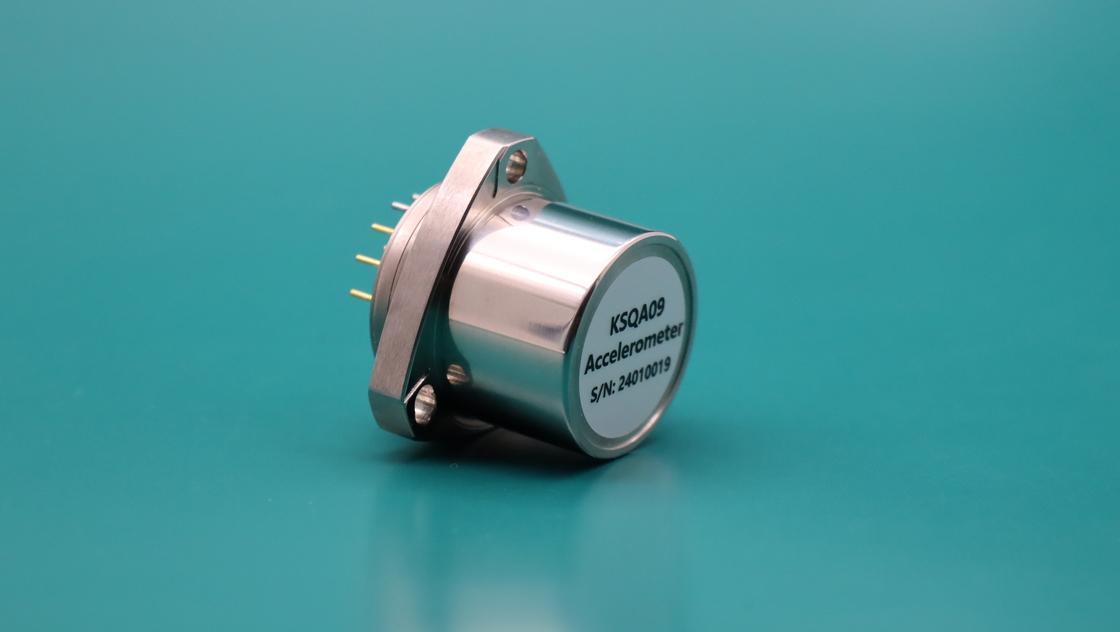

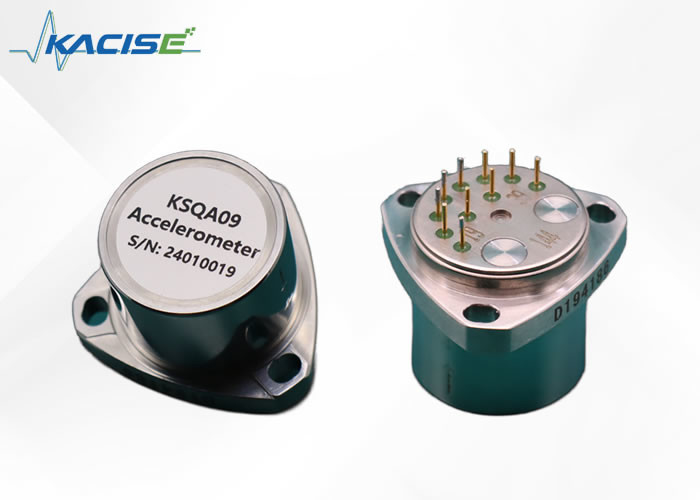

Product Description:
The Quartz flexible accelerometer is a high-precision instrument that consists of quartz glass flexible support, and advanced servo circuit that operates on the principle of inertia. The accelerometer provides an output that is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance, which allows users to choose the sampling resistance based on their requirements without affecting the system's stability. The system's precision and accuracy have made our accelerometer the go-to solution for those looking for top-notch performance.
We offer a wide range of quartz flexible accelerometers to our customers. Our product series is as diverse as the types of measurement they can conduct, ranging from our high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost and anti-harsh environment KSQA13 accelerometer. Our accelerometers have found their place in industries such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. These accelerometers provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA09A | KSQA09B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±80g | ±40g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤60μg |
| Scale Factor | 0.9 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤50ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤60ppm |
| Linearity | ≤40μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤80g | ≤80g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 20g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
