Product Description:

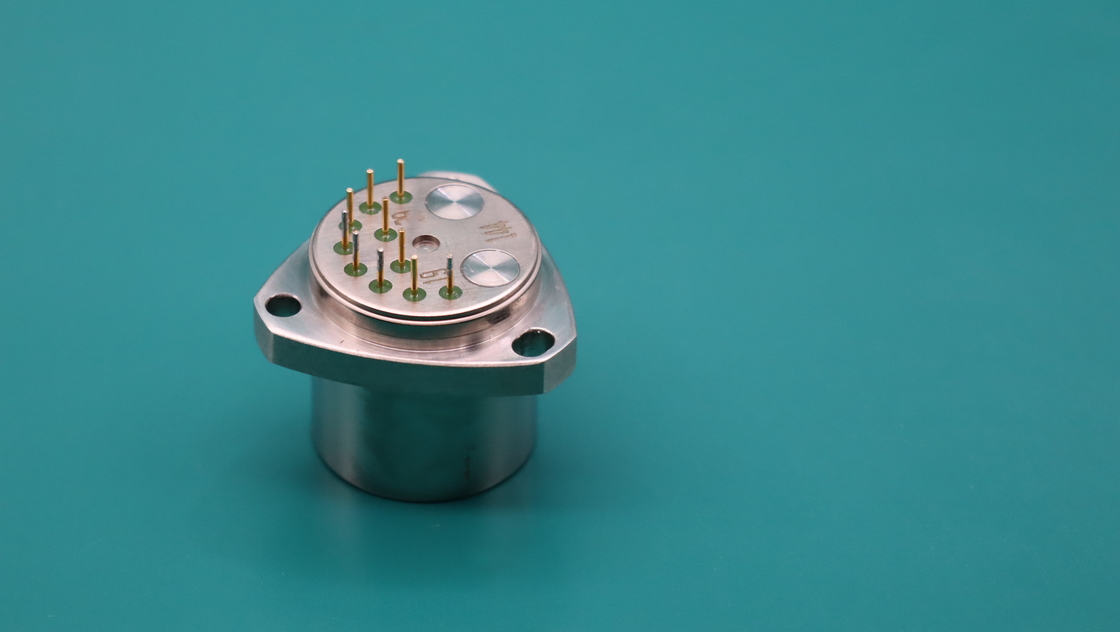

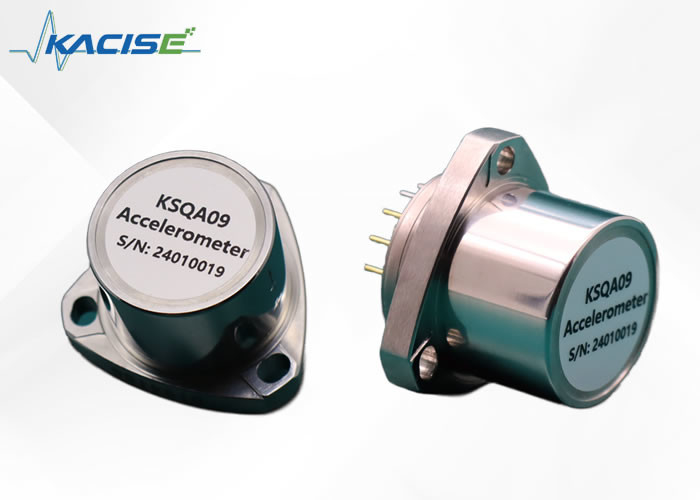

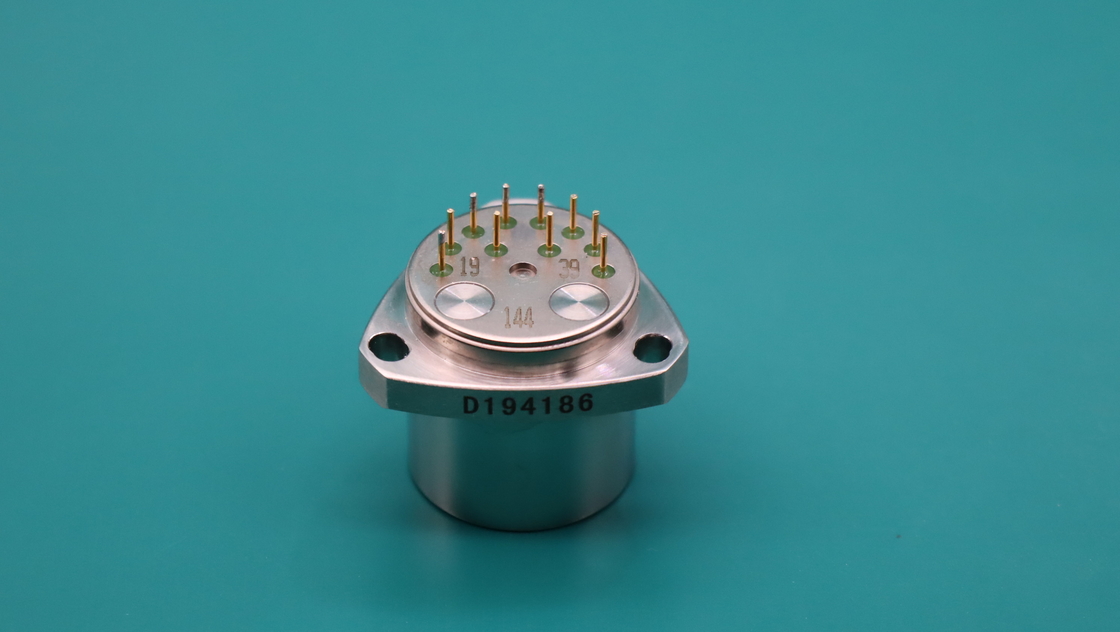

The Quartz Flexible Accelerometer is an instrument that has been precisely crafted for accuracy and precision. It comprises of quartz glass flexible support and advanced servo circuit, following the principal of inertia. When the system is subjected to acceleration, the result is an output that accurately reflects the input acceleration.
The accelerometer outputs a high output impedance in the form of a current. Users can select their sampling resistance depending on their requirements without disrupting the stability of the system.
Our Quartz Flexible Accelerometer has undergone extensive research and development. As a result, we have developed a range of products, which cater to different requirements. Our portfolio includes the high-precision μg KSQA07 accelerometer for satellite microgravity measurements. At the same time, we also offer the low-cost, anti-harsh environment KSQA13 accelerometer.
Our accelerometers are utilised in various industries, including aerospace, aviation, navigation, ship, vehicle, petroleum, and geotechnical engineering. They provide signals for navigation, guidance, control, leveling, monitoring and other systems, making them a versatile and reliable instrument for our customers.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA09A | KSQA09B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±80g | ±40g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤60μg |
| Scale Factor | 0.9 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤50ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤60ppm |
| Linearity | ≤40μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤80g | ≤80g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 20g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
