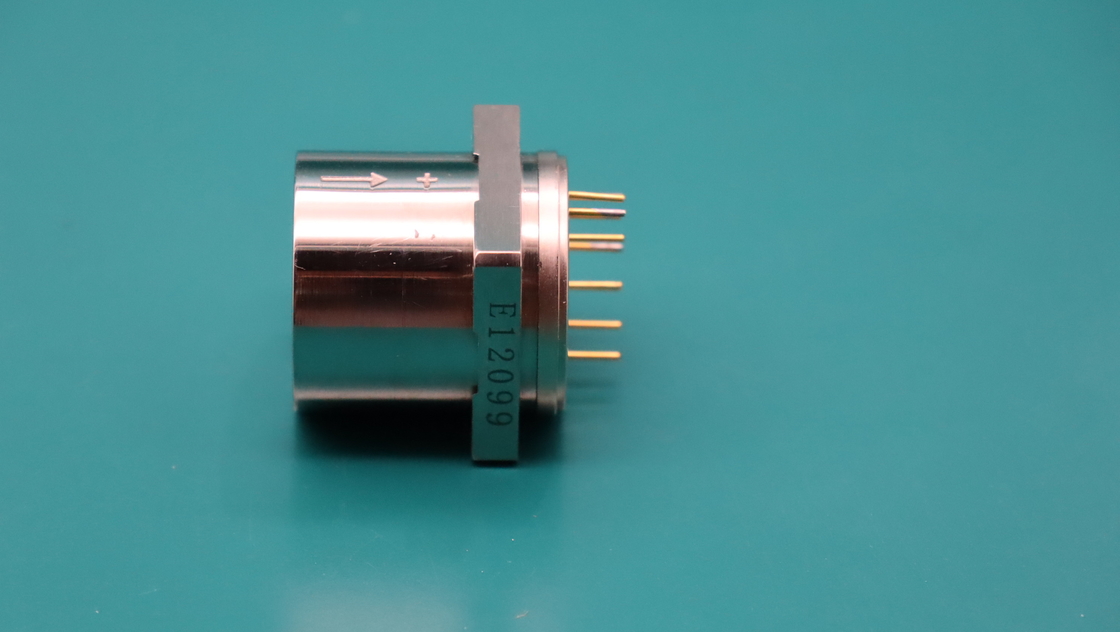

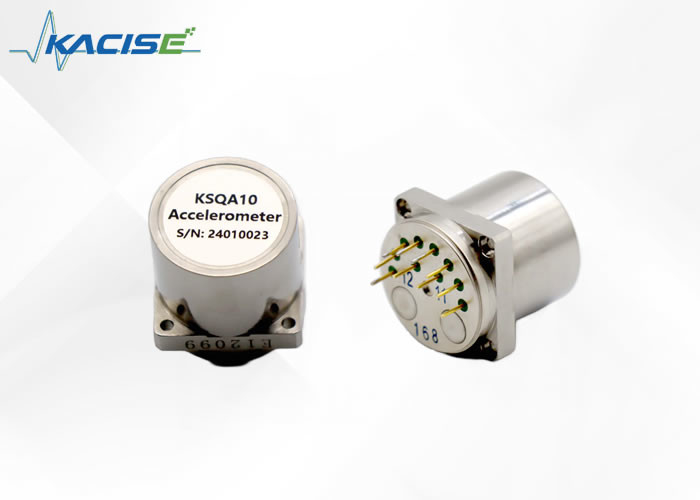

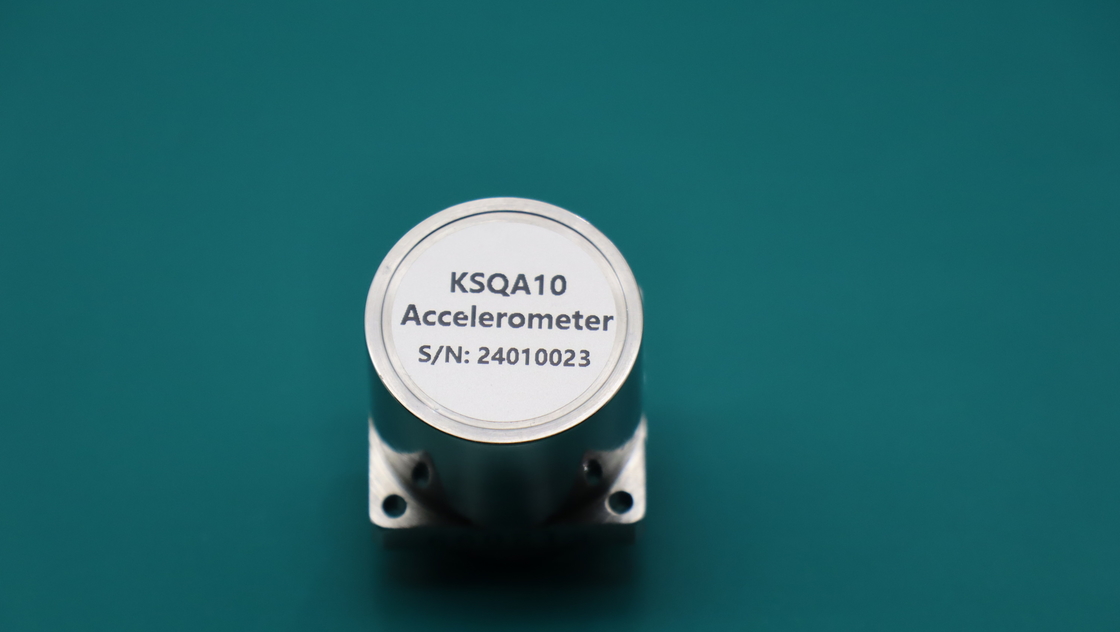

Product Description:
The Quartz Flexible Accelerometer is a precision instrument that is made up of quartz glass flexible support and advanced servo circuitry based on the principle of inertia. When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance, which means that users can choose the sampling resistance according to their requirement without affecting the stability of the system.
Currently, our quartz flexible accelerometer has formed a series of products, including dozens of types. This includes the high-precision μg KSQA07 accelerometer for satellite microgravity measurement, as well as the low-cost, anti-harsh environment KSQA13 accelerometer. These products are widely used in different areas such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields. They are specifically designed to provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Technical Parameters:
| Parameter | KSQA10A | KSQA10B |
| Power supply parameter |
| Power Voltage | ±12~±18V DC |
| Product performance |
| Input Range | ±20g | ±20g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤50μg |
| Scale Factor | 1.2 ~ 1.6mA/g | 1.2 ~ 1.6mA/g |
| Temperature Sensitivity | ≤30ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤30ppm | ≤50ppm |
| Linearity | ≤15μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×32mm | Ø25.4×32mm |
| Weight | ≤70g | ≤70g |
| Environment |
| Operating Temperature | -45°C~+80°C |
| Storage temperature | -55°C～+80°C |
| Shock | 100g |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
