Product Description:

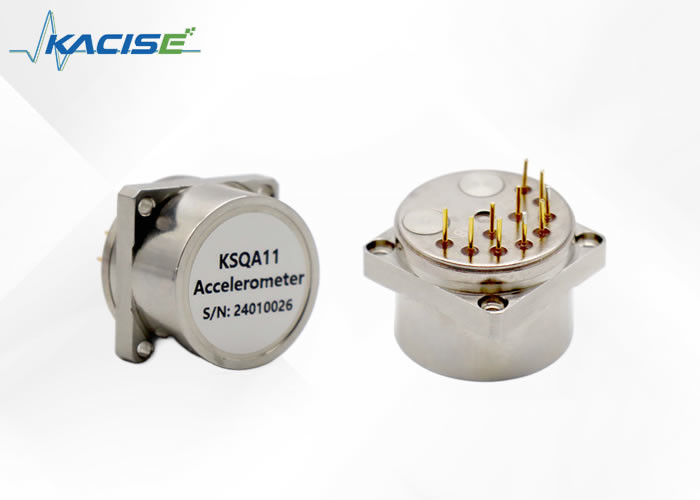

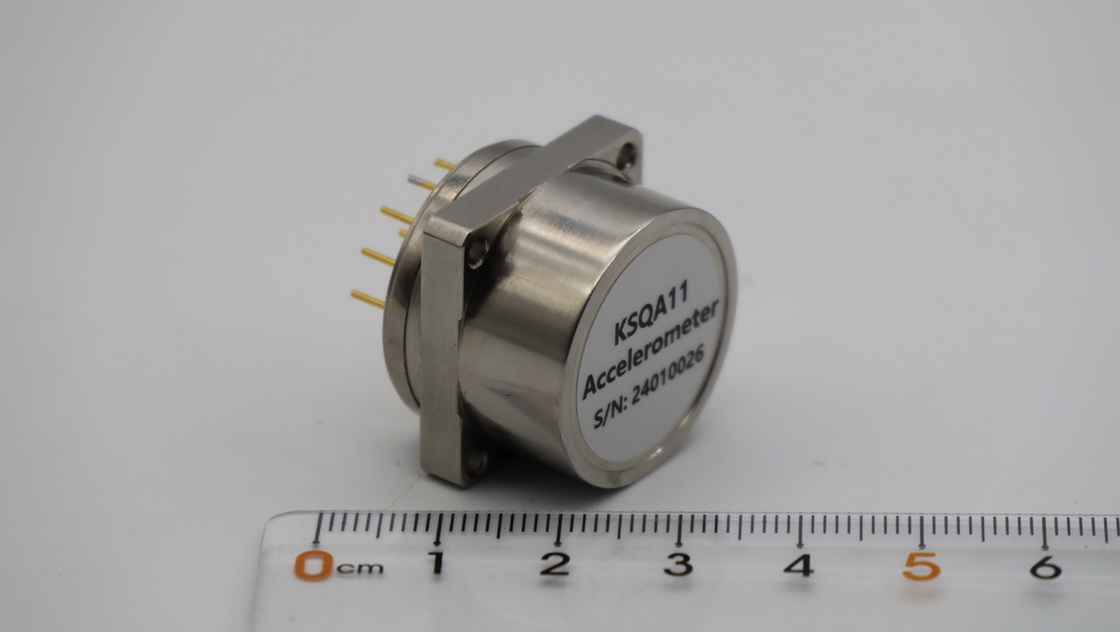

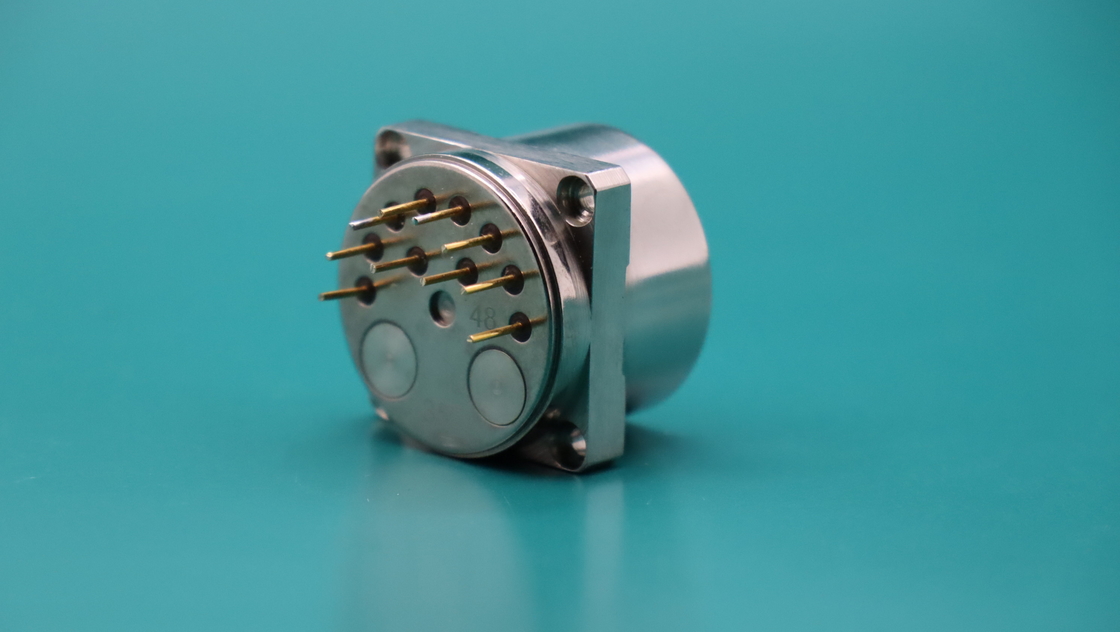

The Quartz Flexible Accelerometer is a highly precise instrument that comprises a flexible support made from quartz glass and an advanced servo circuit based on the principle of inertia. When there is any acceleration applied to the carrier, the output of this accelerometer is precisely proportional to the input acceleration.
One of the key features of this accelerometer is its current output form of high output impedance. This enables users to choose the sampling resistance according to their requirement without affecting the stability of the system. The Quartz Flexible Accelerometer has formed a series of products ranging from the high-precision μg KSQA07 accelerometer used for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer - with dozens of types available.
The Quartz Flexible Accelerometer has been widely used in a range of fields, including aerospace, aviation, navigation, shipbuilding, in-vehicle applications, petroleum exploration, geotechnical engineering and other related sectors. The product is essential for providing signals for navigation, guidance, control, leveling, monitoring and other systems.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
Technical Parameters:
| Parameter |
KSQA11 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±30g |
| Bias |
≤8mg |
| Temperature Sensitivity |
≤40μg/°C |
| One-month Composite Repeatability (1σ) |
≤50μg |
| Scale Factor |
1.0 ~ 1.6mA/g |
| Temperature Sensitivity |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤80ppm |
| Linearity |
≤40μg/g2 |
| Size |
Ø25×25mm |
| Weight |
≤50g |
| Environment |
| Operating Temperature |
-45°C~+100°C |
| Storage temperature |
-55°C～+110°C |
| Shock |
500g |
| Vibration Peak Sine |
25g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
