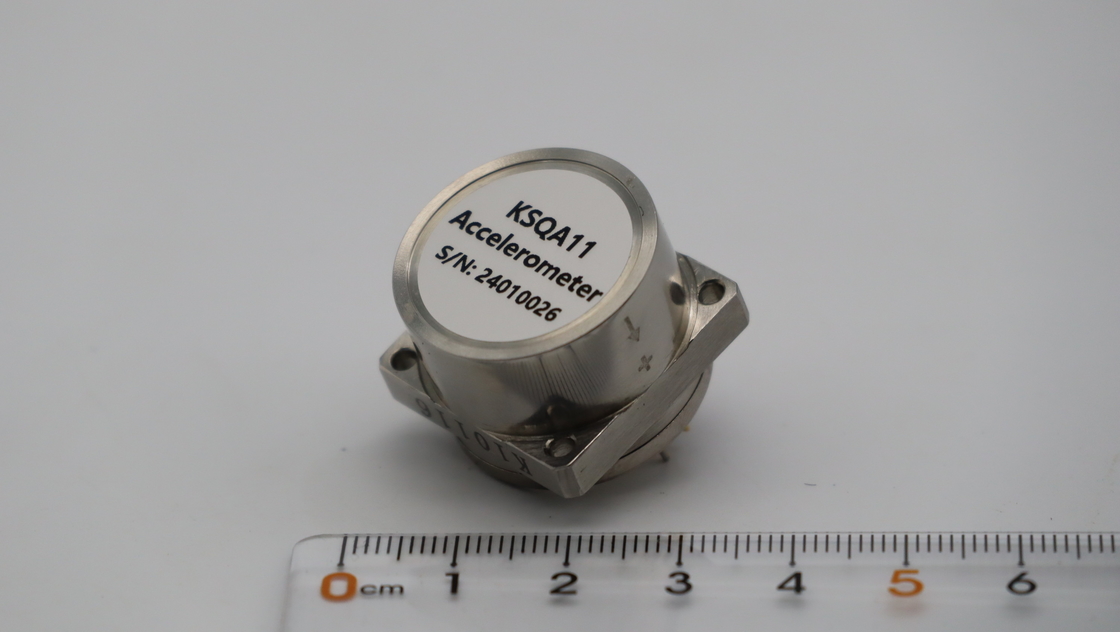

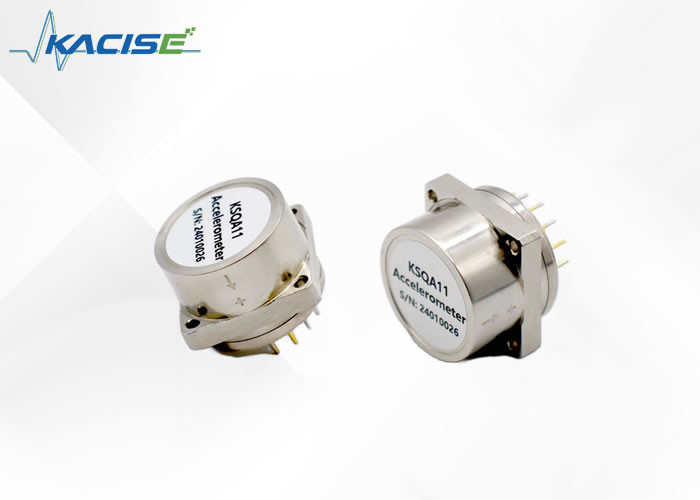

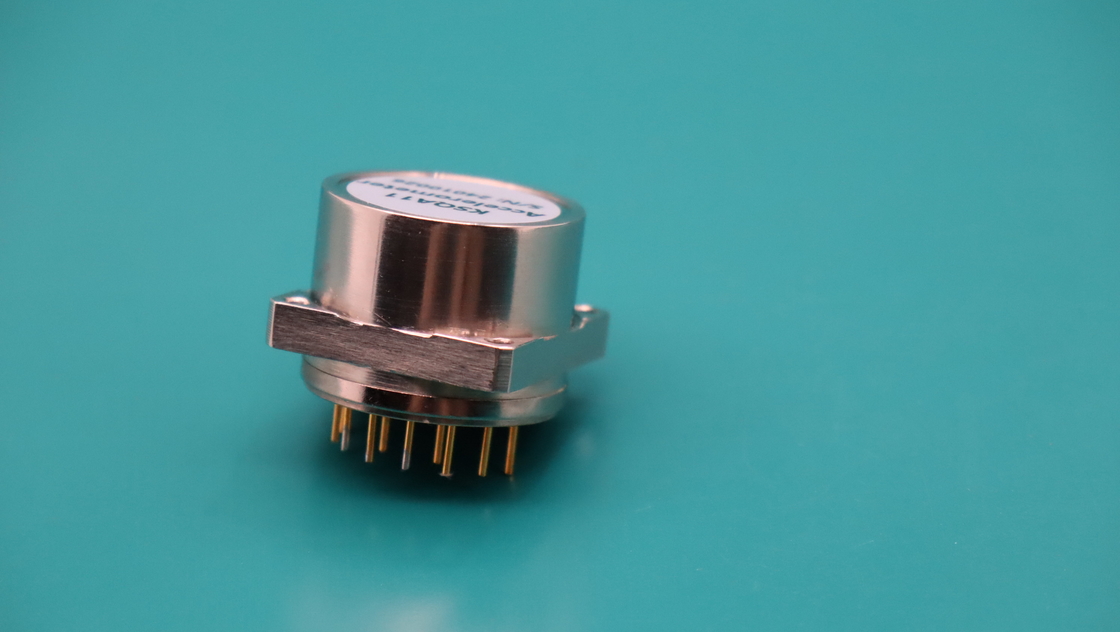

Product Description:
The Quartz flexible accelerometer is a highly precise instrument that comprises a quartz glass flexible support and an advanced servo circuit based on the principle of inertia. When exposed to acceleration, the accelerometer's output is directly proportional to the input acceleration, ensuring extremely accurate results.
Furthermore, the accelerometer has a current output form of high output impedance, allowing users to choose the sampling resistance as per their requirements without compromising the stability of the system.
Our quartz flexible accelerometers are available in a series of product types, ranging from the high-precision μg KSQA07 accelerometer for satellite microgravity measurements to the low-cost, anti-harsh environment KSQA13 accelerometer. With dozens of products available, it is widely used in various fields such as aerospace, aviation, navigation, shipbuilding, transportation, petroleum, geotechnical engineering, and many others.
Our Quartz accelerometers provide signals that are essential for navigation, guidance, control, leveling, monitoring, and various other systems, making it an important instrument in various industries.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
Technical Parameters:
| Parameter |
KSQA11 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±30g |
| Bias |
≤8mg |
| Temperature Sensitivity |
≤40μg/°C |
| One-month Composite Repeatability (1σ) |
≤50μg |
| Scale Factor |
1.0 ~ 1.6mA/g |
| Temperature Sensitivity |
≤80ppm/°C |
| One-month Composite Repeatability (1σ) |
≤80ppm |
| Linearity |
≤40μg/g2 |
| Size |
Ø25×25mm |
| Weight |
≤50g |
| Environment |
| Operating Temperature |
-45°C~+100°C |
| Storage temperature |
-55°C～+110°C |
| Shock |
500g |
| Vibration Peak Sine |
25g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
