Product Description:

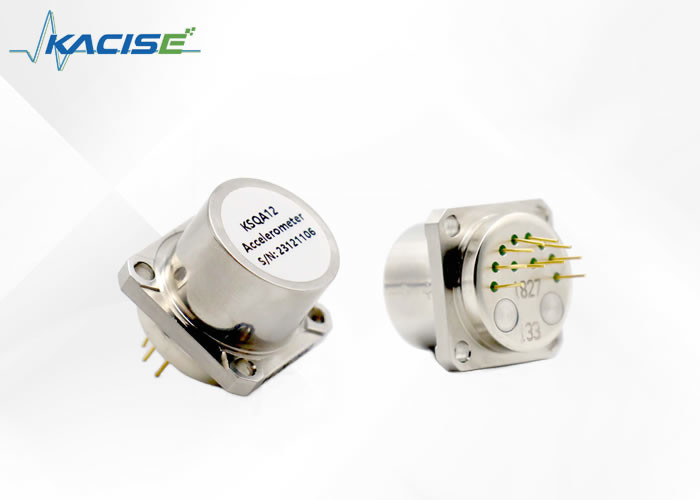

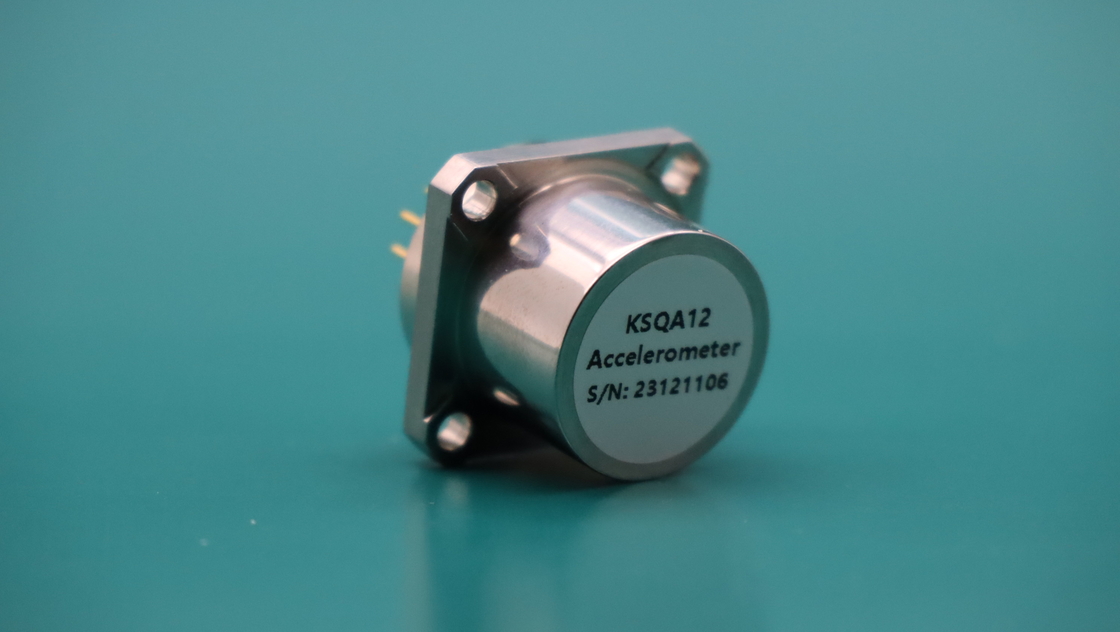

Introducing the Quartz Flexible Accelerometer, a precision instrument that is comprised of quartz glass flexible support and advanced servo circuit. Built on the principle of inertia, this accelerometer produces an output that is proportional to the input acceleration.
Our accelerometer features a current output form with high output impedance, providing users with the flexibility to choose the sampling resistance according to their specific requirements without affecting system stability.
Our quartz flexible accelerometer is available in a series of product types that include the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer. With dozens of products in our arsenal, our accelerometer is widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other fields.
Our products are designed to provide signals for navigation, guidance, control, leveling, and monitoring systems. Try the Quartz Flexible Accelerometer today and experience precision and flexibility at its best!
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Triangle precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
● Two models are available
Technical Parameters:
| Parameter |
KSQA12A |
KSQA12B |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±80g |
±30g |
| Bias |
≤5mg |
≤5mg |
| Temperature Sensitivity |
≤40μg/°C |
≤50μg/°C |
| One-month Composite Repeatability (1σ) |
≤40μg |
≤80μg |
| Scale Factor |
0.6 ~ 1.3mA/g |
0.9 ~ 1.3mA/g |
| Temperature Sensitivity |
≤60ppm/°C |
≤60ppm/°C |
| One-month Composite Repeatability (1σ) |
≤40ppm |
≤80ppm |
| Linearity |
≤50μg/g2 |
≤50μg/g2 |
| Threshold |
<5μg |
<5μg |
| Resolution |
<5μg |
<5μg |

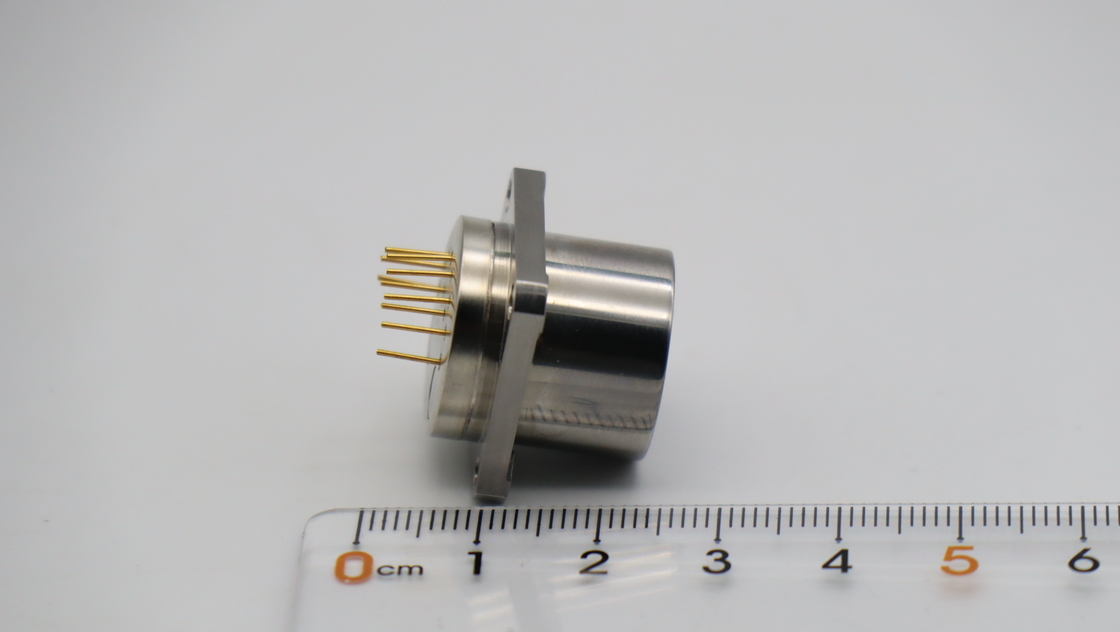

| Size |
Ø18.2×23.6mm |
Ø18.2×23.6mm |
| Weight |
≤35g |
≤35g |
| Environment |
| Operating Temperature |
-45°C~+80°C |
| Storage temperature |
-55°C～+80°C |
| Shock |
100g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Packing and Shipping:
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
