Product Description:

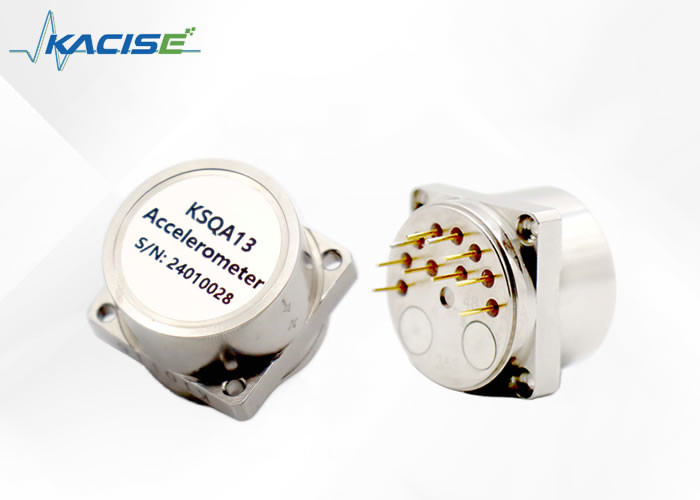

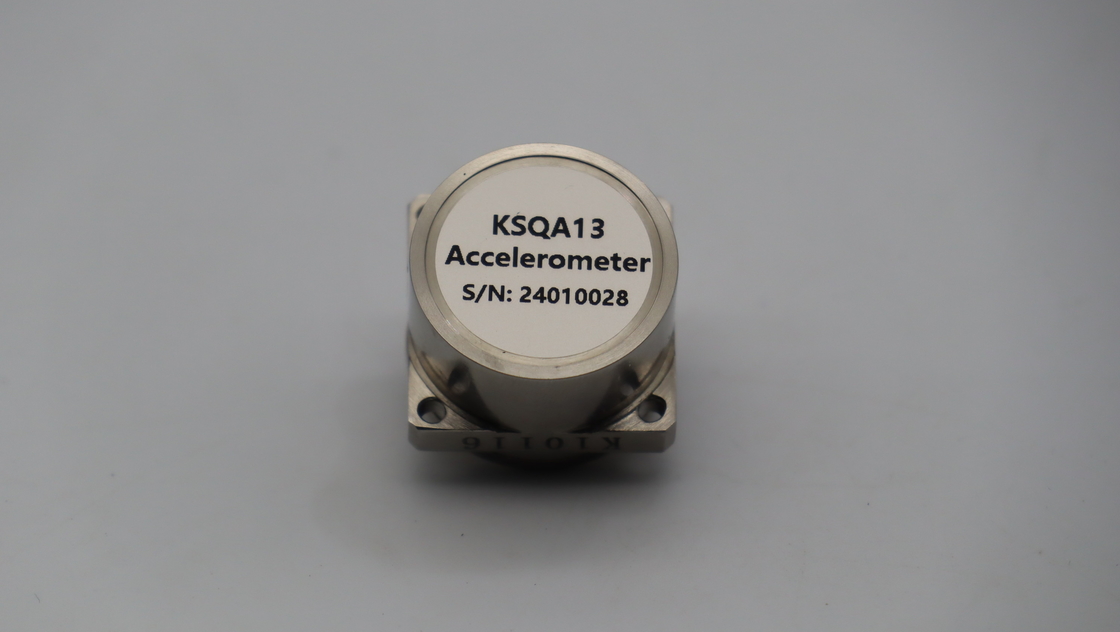

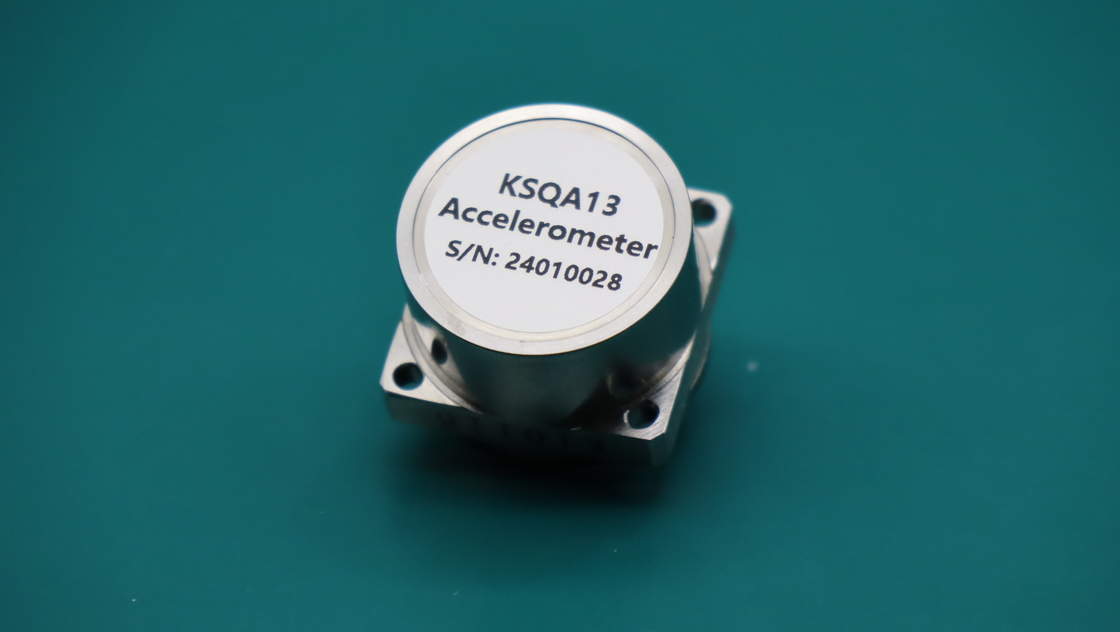

The Quartz Flexible Accelerometer is a cutting-edge precision instrument that is made up of a quartz glass flexible support and an advanced servo circuit which is based on the principle of inertia. Whenever the carrier experiences acceleration, the output of this accelerometer is precisely proportional to the input acceleration.
With our accelerometer, we offer a current output form of high output impedance, thereby providing users with the option of selecting the sampling resistance that suits their requirements without causing any damage to the stability of the system.
Currently, our Quartz Flexible Accelerometer comes in dozens of types, ranging from the high-precision μg KSQA07 accelerometer – which is designed specifically for satellite microgravity measurement – to the low-cost anti-harsh environment KSQA13 accelerometer. These products are widely used in fields such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and any other field that requires precise signals for navigation, guidance, control, leveling, monitoring and other systems.
Features:
● Excellent index repeatability
● Analog output
● Wide temperature range
● Wide load resistance range
● Small size and light weight
● Shock and vibration resistance
● High temperature resistance
Technical Parameters:
| Parameter |
KSQA13 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±10g |
| Bias |
≤10mg |
| Temperature Sensitivity |
≤100μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
| Scale Factor |
2.3 ~ 3.5mA/g |
| Temperature Sensitivity |
≤100ppm/°C |
| Three-hour Stability (1σ) |
≤100ppm |
| Size |
Ø25×25mm |
| Weight |
≤60g |
| Environment |
| Operating Temperature |
-45°C~+100°C |
| Storage temperature |
-55°C～+120°C |
| Shock |
500g |
| Vibration Peak Sine |
15g@20Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
