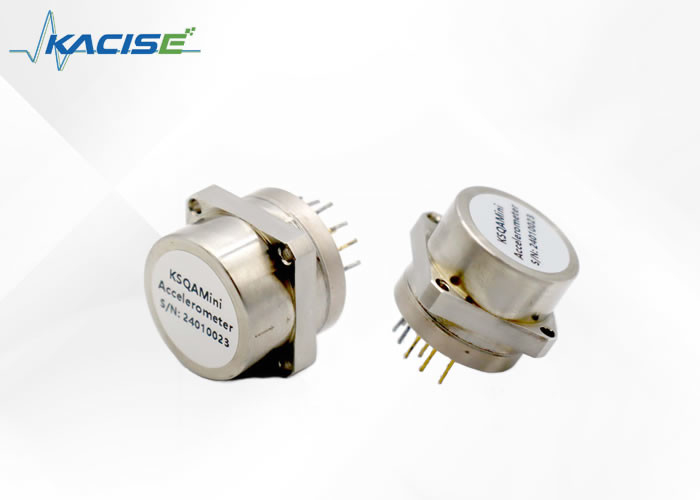

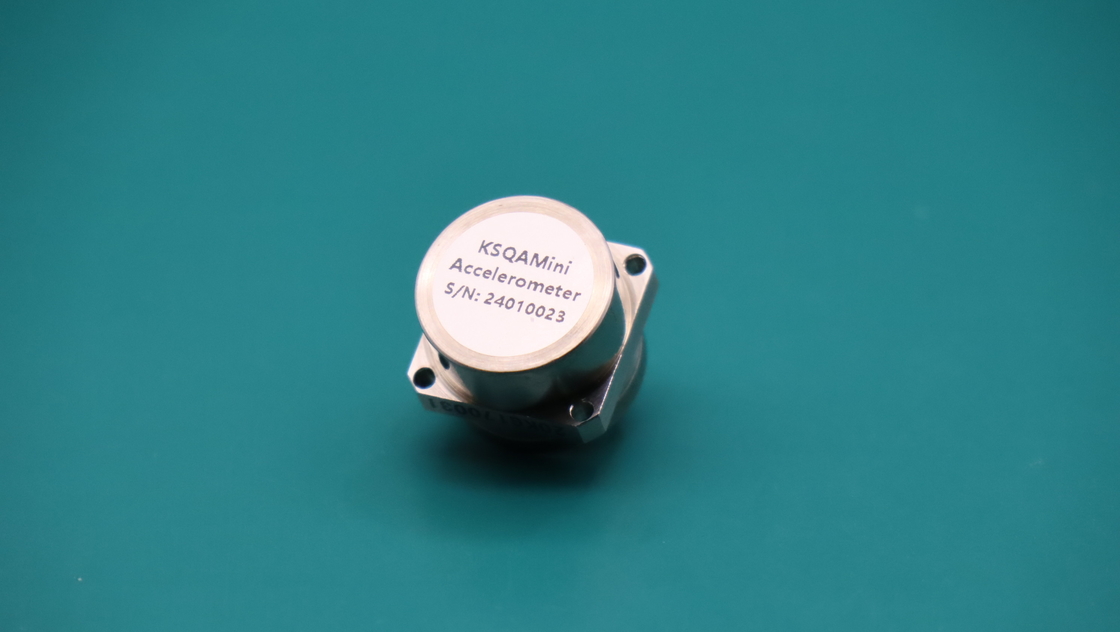

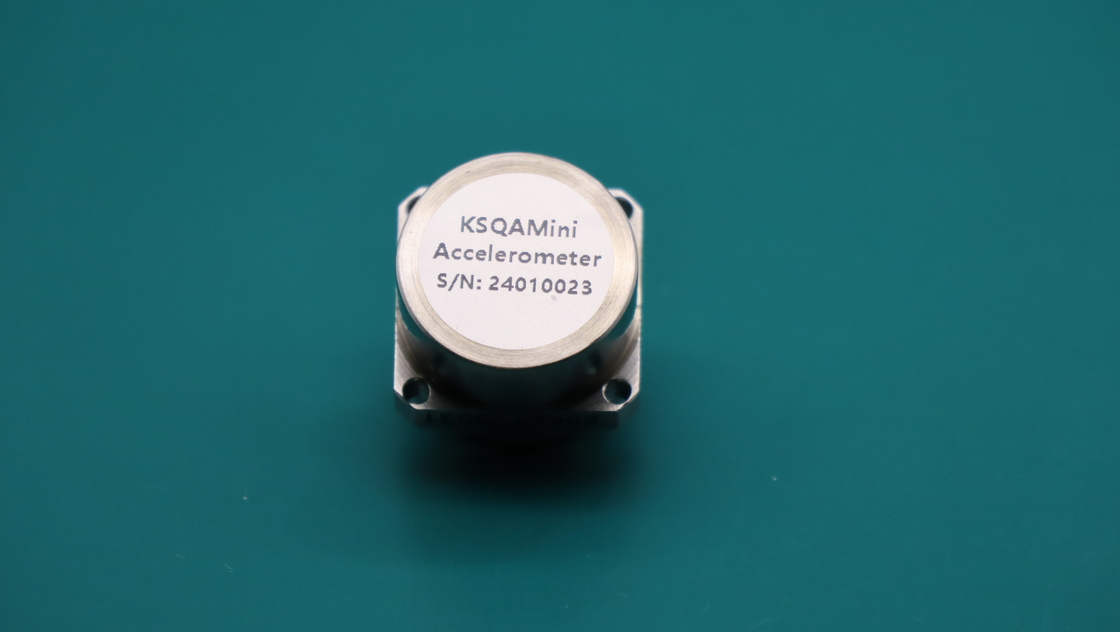

Product Description:
The Quartz flexible accelerometer is a precision instrument consisting of a flexible support made from quartz glass and an advanced servo circuit based on the principle of inertia. When subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Our accelerometer is designed with a current output form of high output impedance, allowing users to choose the sampling resistance based on their requirements without affecting the stability of the system.
Currently, we offer a series of products in our quartz flexible accelerometer, with types ranging from the high-precision μg KSQA07 accelerometer used for satellite microgravity measurement, to the low-cost and anti-harsh environment KSQA13 accelerometer, with dozens of different types available.
Our accelerometers are widely used in a number of fields, including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and others. These accelerometers provide signals to aid navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter |
KSQAMini |
KSQAMini185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤20mg |
≤30mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤200μg |
| Scale Factor |
2.2 ~ 3.5mA/g |
1.5 ~ 3.5mA/g |
| Temperature Sensitivity |
≤200ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤200ppm |
| Size |
Ø18.8×21mm |
Ø18.8×21mm |
| Weight |
≤25g |
≤25g |
| Environment |
| Operating Temperature |
-45°C~+125°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+130°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
