Product Description

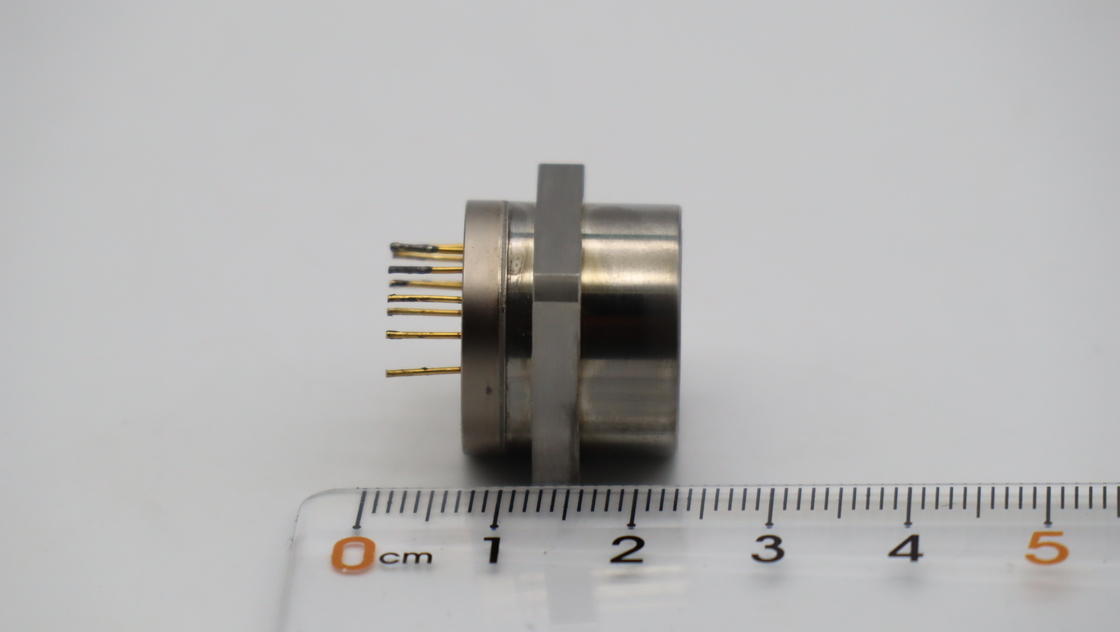

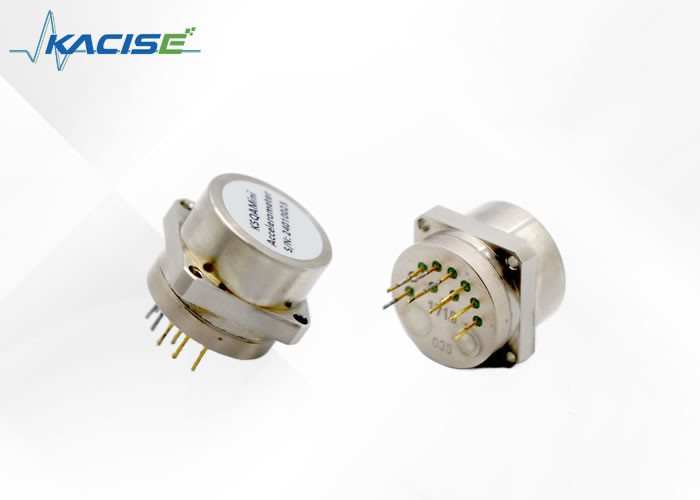

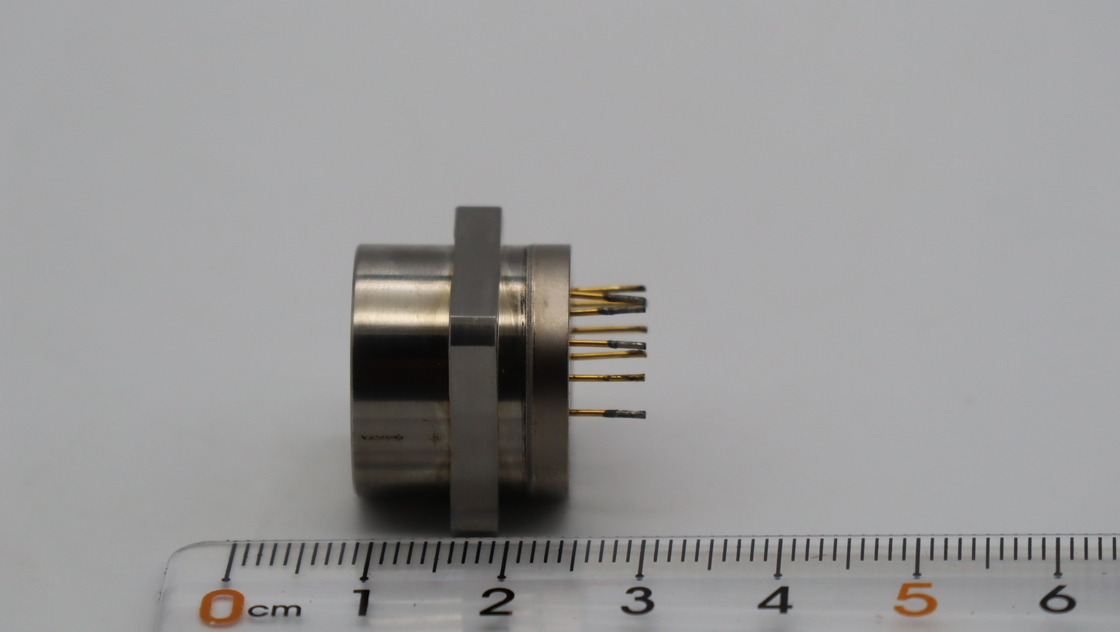

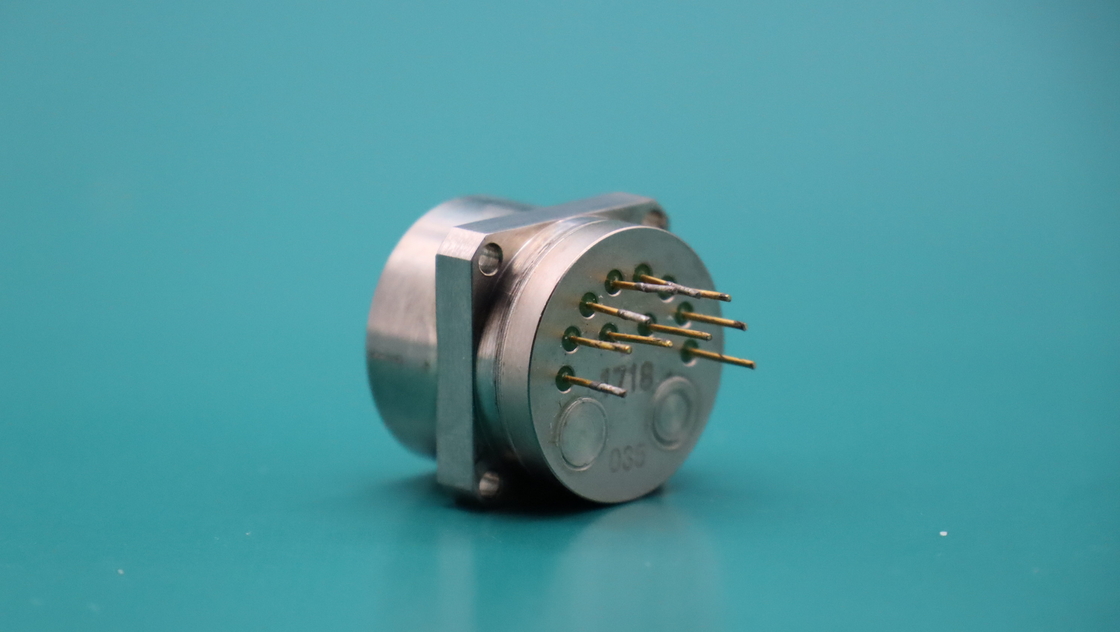

The Quartz Flexible Accelerometer is a high-precision instrument that consists of a quartz glass flexible support and an advanced servo circuit. Its design is based on the principal of inertia.
When a carrier is subjected to acceleration, the output of the accelerometer is directly proportional to the input acceleration. The accelerometer is equipped with a current output type of high output impedance. Users are given the flexibility to choose the sampling resistance according to their requirements without worrying about its impact on the stability of the system.
Currently, our Quartz Flexible Accelerometer has a wide range of series, from the high-precision micrograms KSQA07 accelerometer, used for satellite microgravity measurement, to the low-cost anti-harsh environment KSQA13 accelerometer. We offer many products, dozens in fact, that are widely used in several fields, including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, and other industries. The signals provided by the device serve as essential functions for navigation, guidance, control, leveling, monitoring, and other systems.
Features
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters
| Parameter |
KSQAMini |
KSQAMini185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤20mg |
≤30mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤200μg |
| Scale Factor |
2.2 ~ 3.5mA/g |
1.5 ~ 3.5mA/g |
| Temperature Sensitivity |
≤200ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤200ppm |
| Size |
Ø18.8×21mm |
Ø18.8×21mm |
| Weight |
≤25g |
≤25g |
| Environment |
| Operating Temperature |
-45°C~+125°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+130°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions
Applications
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
