Product Description:

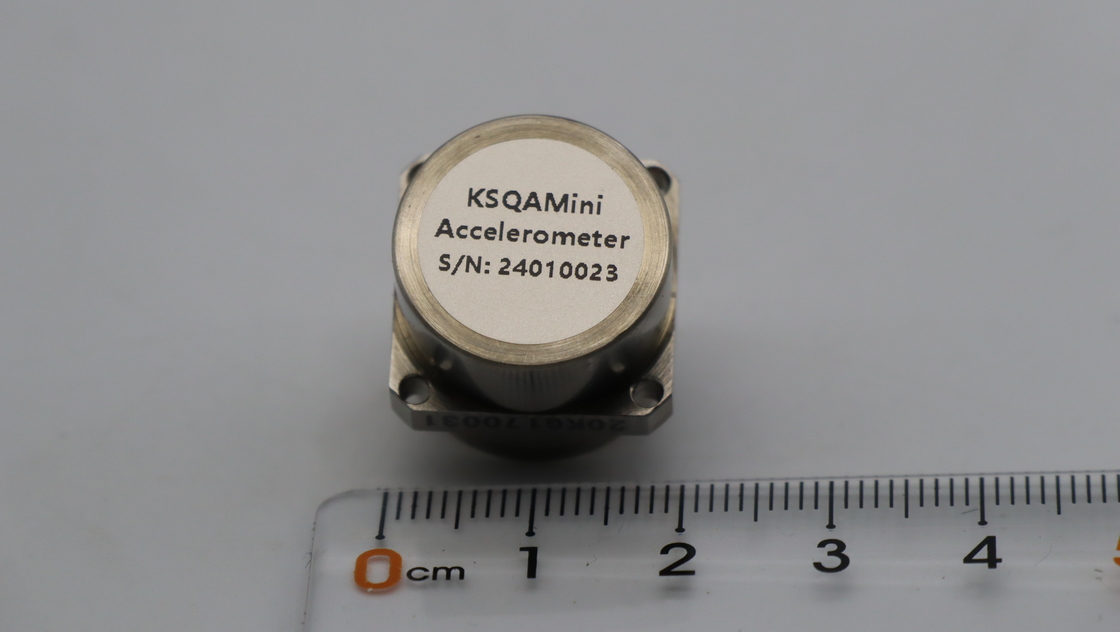

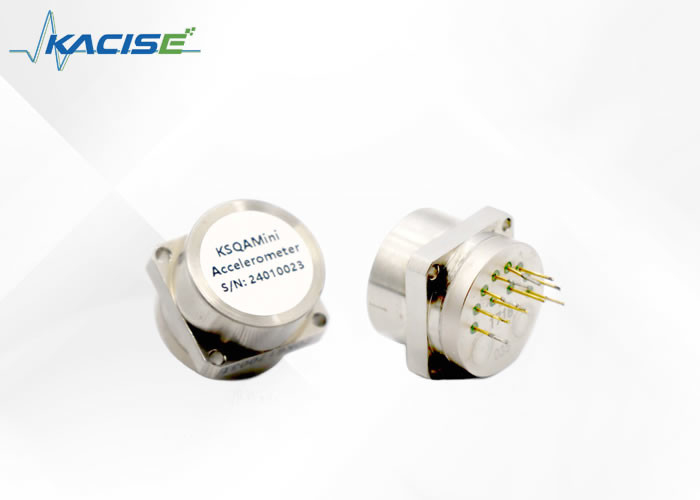

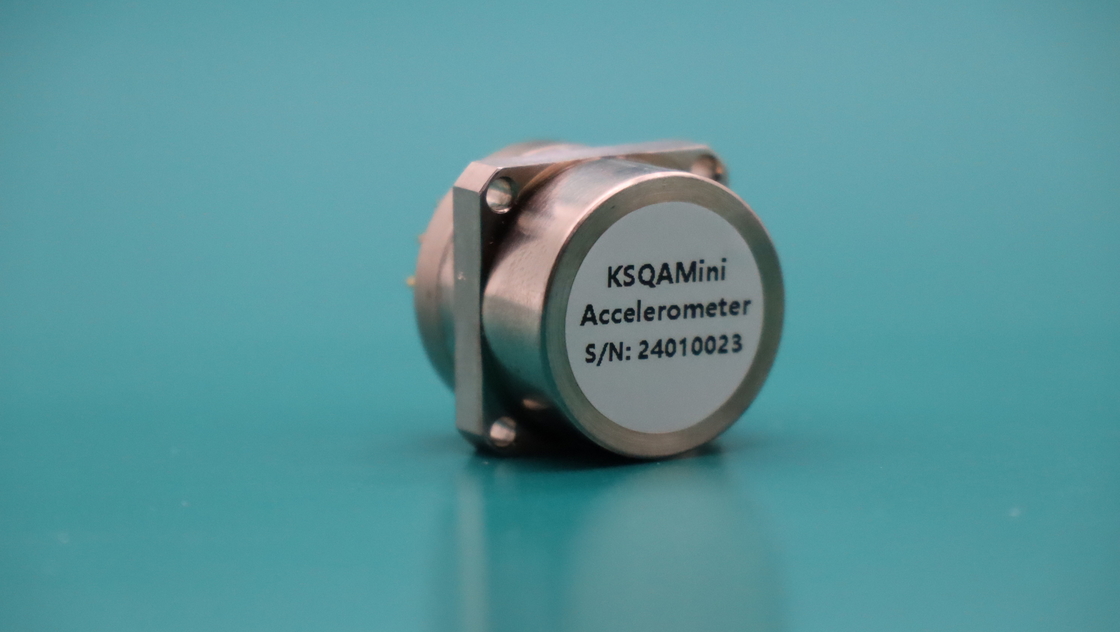

Introducing the Quartz Flexible Accelerometer, a precision instrument composed of a quartz glass flexible support and an advanced servo circuit based on the principle of inertia.
Our accelerometer is designed to accurately measure input acceleration, with an output that is precisely proportional to the input. It features a current output form of high output impedance, allowing users to choose the sampling resistance as needed without sacrificing system stability.
Our product range includes a series of quartz flexible accelerometers, from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer. We offer dozens of types of accelerometers, which are widely used in aerospace, aviation, navigation, shipbuilding, vehicle manufacturing, petroleum, geotechnical engineering, and other industries. Our products provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
Features:
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
Technical Parameters:
| Parameter |
KSQAMini |
KSQAMini185 |
| Power supply parameter |
| Power Voltage |
±12~±18V DC |
| Product performance |
| Input Range |
±20g |
±20g |
| Bias |
≤20mg |
≤30mg |
| Temperature Sensitivity |
≤150μg/°C |
≤150μg/°C |
| Three-hour Stability(1σ) |
≤100μg |
≤200μg |
| Scale Factor |
2.2 ~ 3.5mA/g |
1.5 ~ 3.5mA/g |
| Temperature Sensitivity |
≤200ppm/°C |
≤300ppm/°C |
| Three-hour Stability(1σ) |
≤100ppm |
≤200ppm |
| Size |
Ø18.8×21mm |
Ø18.8×21mm |
| Weight |
≤25g |
≤25g |
| Environment |
| Operating Temperature |
-45°C~+125°C |
-45°C~+185°C |
| Storage temperature |
-55°C～+130°C |
-55°C～+190°C |
| Shock |
1000g |
| Vibration Peak Sine |
20g@10Hz ~ 2000Hz |
Dimensions:
Applications:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Support and Services:
Our Accelerometer Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and diagnostics
- Repair and replacement services
- Technical documentation and resources
Packing and Shipping:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
