Place of Origin:
China (Mainland)
Brand Name:
Kacise
Certification:
certificate of explosion-proof, CE
Model Number:
KSQAT185

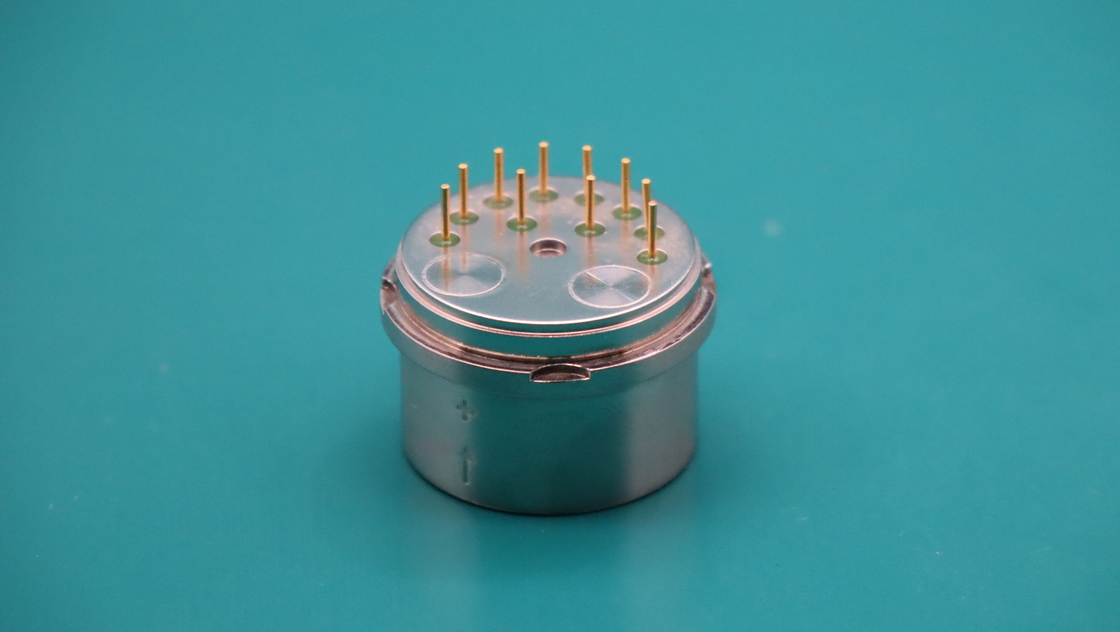

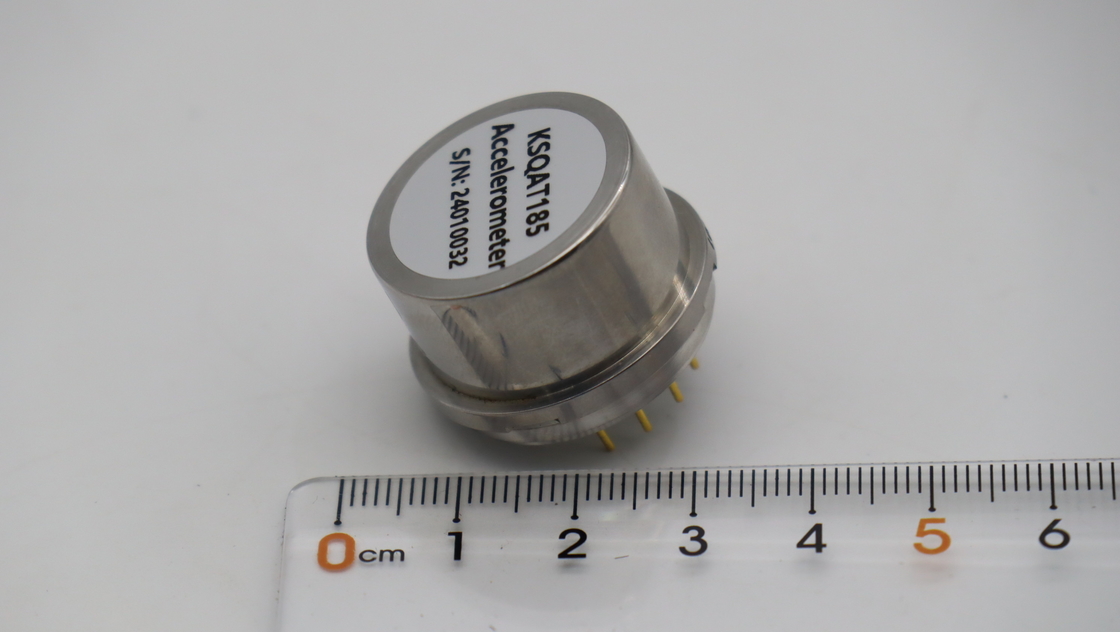

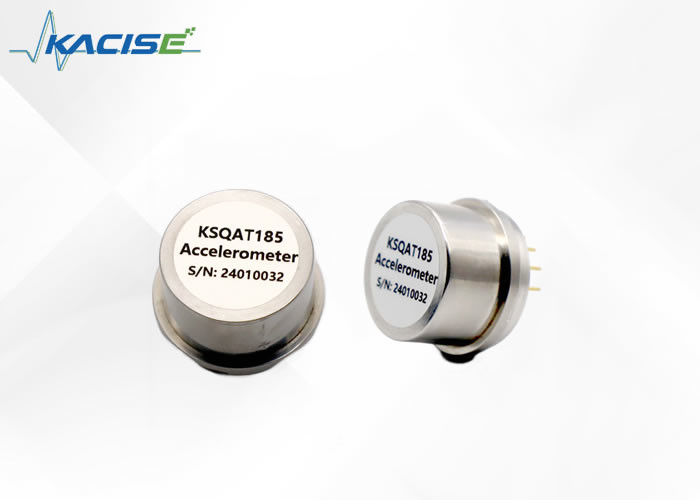

The Quartz flexible accelerometer is a precision instrument that comprises quartz glass flexible support and advanced servo circuit based on the principal of inertia.
When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration. Our accelerometer has a current output form of high output impedance, and users can choose the sampling resistance according to their requirements without affecting the stability of the system.
Currently, our quartz flexible accelerometer has evolved into a series of products that provide solutions for various industries. Our product types range from the high precision microgravity KSQA07 accelerometer used in satellites to the low-cost, anti-harsh environment KSQA13 accelerometer. We have dozens of product variations that are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and other fields.
Our quartz flexible accelerometer plays an integral role in providing signals for navigation, guidance, control, leveling, monitoring, and other systems.
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
| Parameter | KSQAT160 | KSQAT185 | |
| Power supply parameter | |||
| Power Voltage | ±12~±18V DC | ||
| Product performance | |||
| Input Range | ±10g | ±10g | |
| Bias | ≤20mg | ≤20mg | |
| Temperature Sensitivity | ≤150μg/°C | ≤150μg/°C | |
| Three-hour Stability(1σ) | ≤100μg | ≤150μg | |
| Scale Factor | 2.3 ~ 3.5mA/g | 1.3 ~ 3.5mA/g | |
| Temperature Sensitivity | ≤150ppm/°C | ≤300ppm/°C | |
| Three-hour Stability(1σ) | ≤100ppm | ≤150ppm | |
| Size | Ø25×25mm | Ø25×25mm | |
| Weight | ≤60g | ≤60g | |
| Environment | |||
| Operating Temperature | -45°C~+160°C | -45°C~+185°C | |
| Storage temperature | -55°C～+170°C | -55°C～+190°C | |
| Shock | 1000g | ||
| Vibration Peak Sine | 20g@10Hz ~ 2000Hz | ||
Dimensions
Applications
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Our Accelerometer Sensor product technical support and services include:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
