KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU

KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU

Pool monitoring Water Quality Sensor

Digital Residual Chlorine Water Quality Sensor

MODBUS RTU Water Quality Sensor

Place of Origin:

China (Mainland)

Brand Name:

KACISE

Certification:

certificate of explosion-proof, CE

Model Number:

KWS3200

Contact Us
Request A Quote
Product Details
Measurement:
Residual Chlorine In Water
Measurement Range:
0-2ppm/20ppm
Resolution:
0.01ppm
Accuracy:
±5%F.S
Repeatability:
±5%F.S
Housing Material:
Glass
Power Supply:
12~24VDC
Output:
MODBUS RTU
Analog Interface:
4-20mA
Highlight:

Pool monitoring Water Quality Sensor

,

Digital Residual Chlorine Water Quality Sensor

,

MODBUS RTU Water Quality Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 Pieces per Week
Product Description

KWS3200 Digital Residual Chlorine Water Quality Sensor



Introduction

The online residual chlorine sensor is an online digital sensor with a built-in microprocessor. It can be widely used in catering,bottling, drinking water, sewage, scrubbers, pulp and paper, reverse osmosis systems, swimming pools, treatment pools, aquariums, etc.

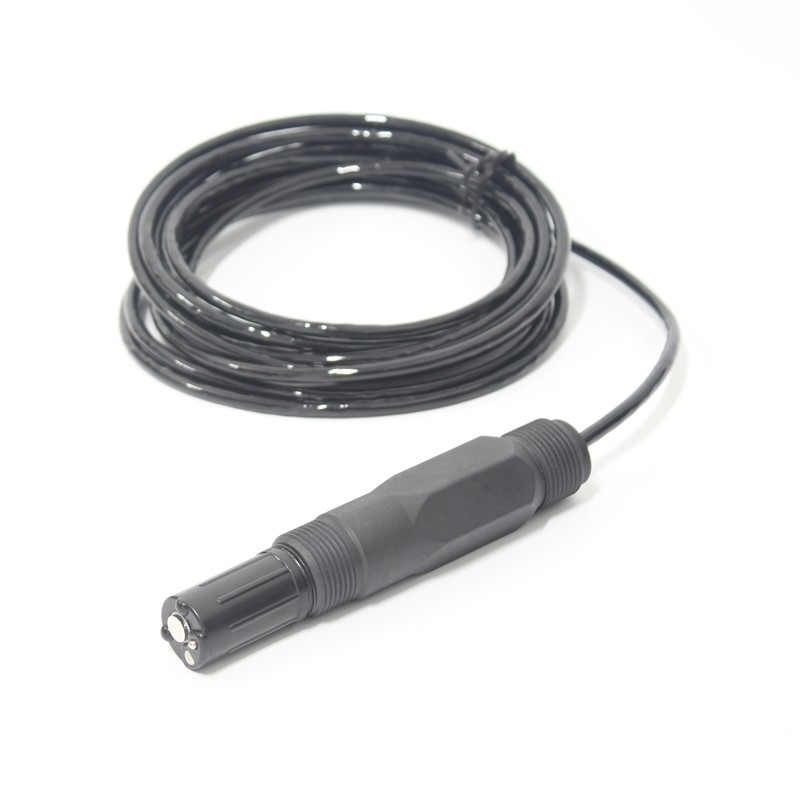

KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU 0



Feature

  • Equipped with membraneless three-electrode residual chlorine electrode, accurate measurement. Can be compared with DPD method
  • The measured value is not affected by low temperature or turbidity
  • Output standard RS485 MODBUS RTU
  • Simple and reliable, can be used without instrument
  • Resistance to harsh mechanical environment
  • Digital interface mode

Communication mode: RS485 interface*1

Communication rate: 4800/9600 (default)/14400/19200 optional

Communication protocol: Modbus-RTU protocol (03,06,0x10 support commands)



Technical Specifications



Measurement Residual chlorine in water
Measurement range 0-2ppm/20ppm
Resolution 0.01ppm
Accuracy ±5%F.S
Repeatability 1%F.S
Housing material Glass
Power supply 12~24VDC
Output MODBUS RTU
Analog interface 4-20mA




Application



  • Pool monitoring
  • Aquaculture
  • Water quality testing
  • Informatization data collection
  • Internet of Things water quality testing

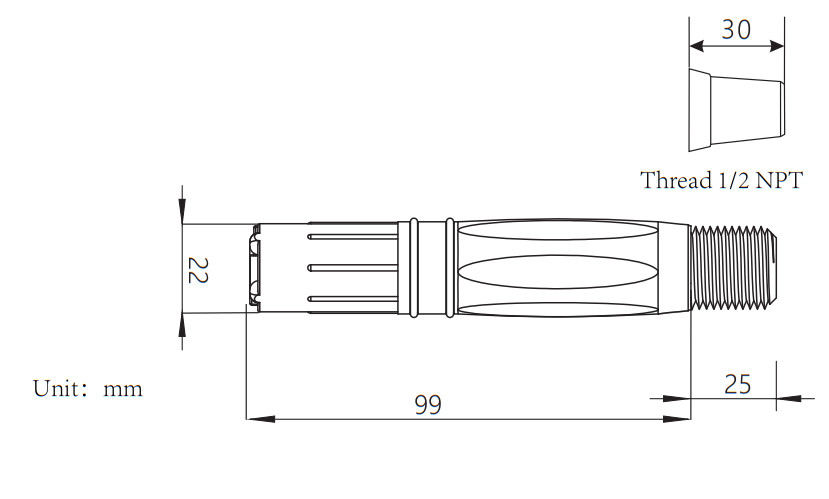

Dimensions

KWS3200 Digital Residual Chlorine Water Quality Sensor Pool Monitoring,Output MODBUS RTU 1



FAQ

1.Q: May I put my own logo on the product?

A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

2.Q: How about the quality control?

A: All products will be tested for 3 times before packed.

3.Q: May I release trial order, 1 pc for example?

A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.

4.Q: Could you design according to my requirements?

A: Of course, our team will design for you, to make our milk flow meter work perfectly at your end.
