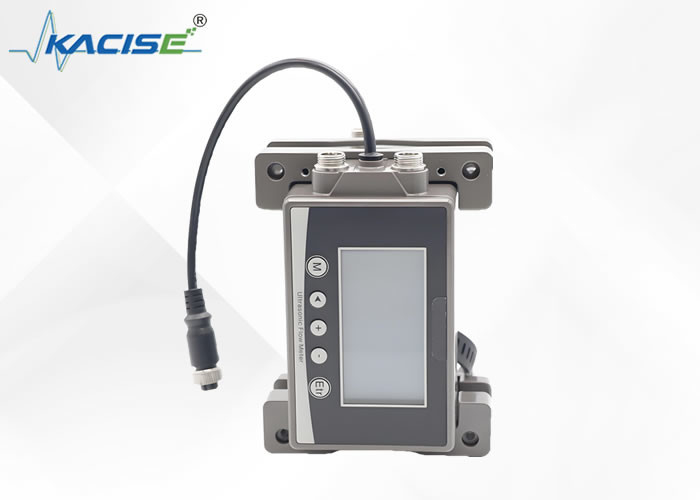

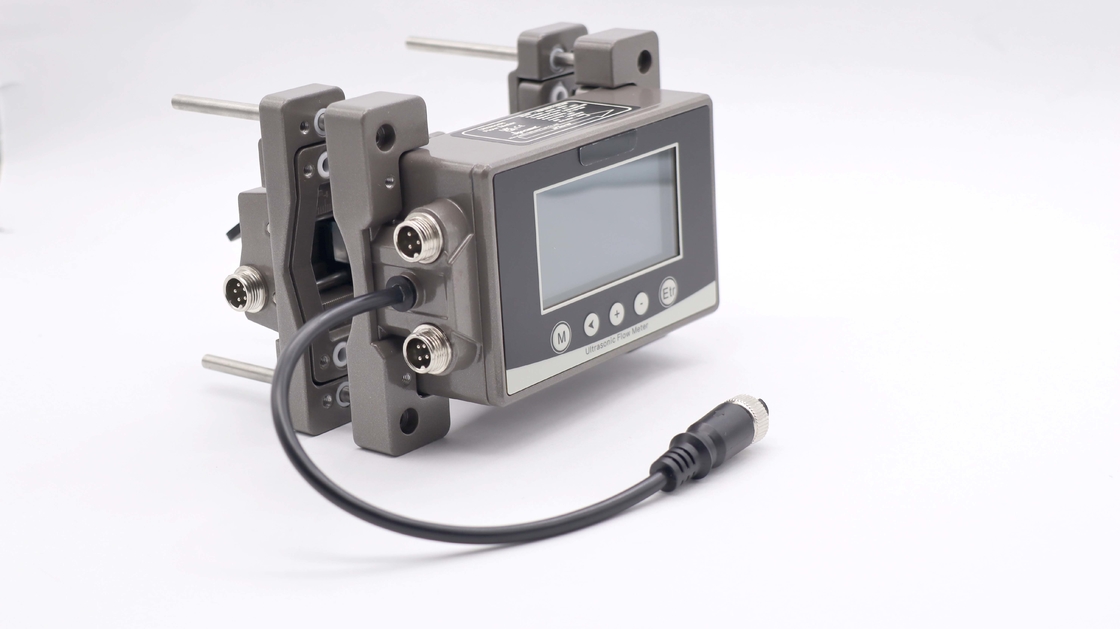

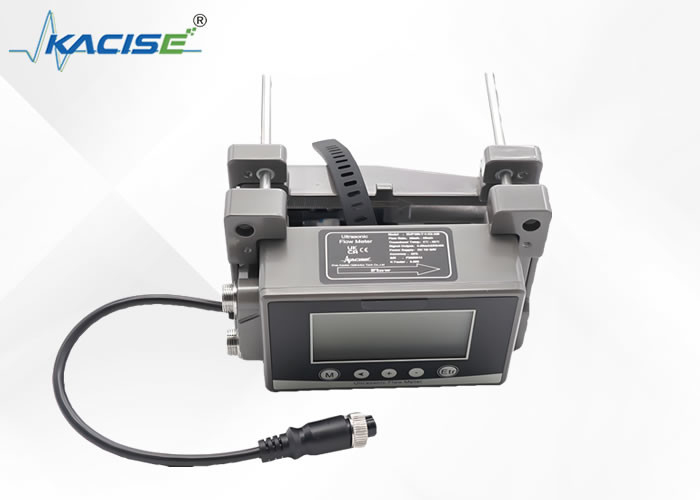

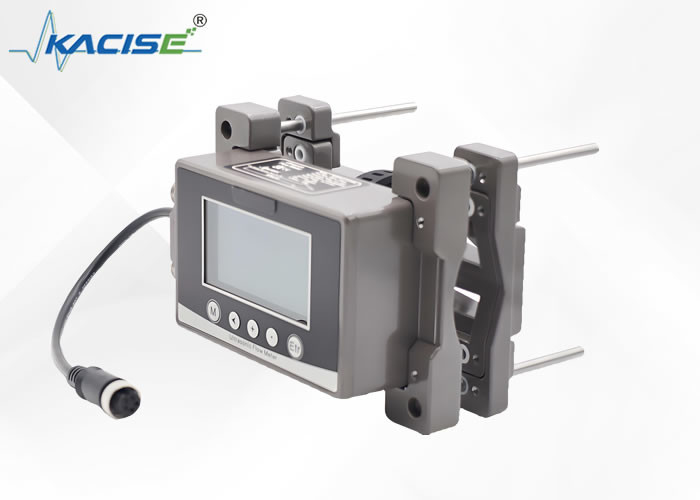

Name: KUF100 Ultrasonic Flowmeter Versatile Applications 0.5-60s Response Time 4-20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUF100
Price: 892.00 USD
Availability: InStock

Home > products > Ultrasonic Flow Meter >

KUF100 Ultrasonic Flowmeter Versatile Applications 0.5-60s Response Time 4-20mA Output

0.5-60s Response Time Ultrasonic Flowmeter

Versatile Applications Ultrasonic Flowmeter

4-20mA Output Ultrasonic Flowmeter

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUF100

Request A Quote

Product Details

Response Time:

0.5~60s

Power And I/O Connectors:

M12 Aviation Plu

Output:

4-20mA

Communication:

Modbus RS485

Optional Output:

OCT (pulse Output) / One Relay Alarm

Power Supply:

10-24V VDC

Electric Power:

＜3W

Highlight:

0.5-60s Response Time Ultrasonic Flowmeter

Versatile Applications Ultrasonic Flowmeter

4-20mA Output Ultrasonic Flowmeter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

Portable Doppler Flowmeter With USB Data Export Function

Get Best Price

Portable Doppler Flowmeter Supporting Multilingual Display

Get Best Price

IP65/IP67 Protection Grade Portable Doppler Flowmeter with Data Storage Function and 12V Rechargeable Lithium Battery

Get Best Price

12V Rechargeable Lithium Battery Powered Portable Handheld Flowmeter with IP67 Rating and RS485 Output

Get Best Price

86--17719566736

Contact Now

Product Description

Introduction

Utilizing the transit-time method, the KUF100 ultrasonic flow meter measures flow by transmitting and receiving ultrasonic signals in the fluid. The flow rate is determined by the time difference between signals moving with and against the flow. This method is particularly effective for measuring fluids with suspended particles or bubbles and does not rely on the fluid's conductivity.

Feature

Simple installation and convenient operation. There is no need to break the pipe or stop for a long time for construction, and the installation can be easily completed within a few minutes.
It adopts a new clamp-on design without touching the measuring medium. It can avoid pressure loss and medium pollution caused by traditional flowmeters.
A variety of modes can be set, flexible and diverse.
A set of machines can be used for all diameters within the measuring range, and is suitable for various metal pipes and resin pipes.
Super large screen display. The display content is diverse and man-machine friendly.
It can be selected as an ultrasonic cold (heat) meter to realize the monitoring and measurement of energy consumption.

Technical Specifications

Supported Pipe Materials	stainless steel, iron, brass, aluminum, PVC, PP, PVDF and other rigid plastic pipes
Supported Liquid Medium	Water or other (single without solid particles and impurities)
Supported Medium Temperature	0-75°C (no freezing on the surface, high temp, version customizable)
Default Low Flow Cutoff	0.1m/s
Display Method	256*128 backlit LCD
Response Time	0.5~60s
Accuracy Class	±2%, up to ±1% after calibration
Data Storage Period	300 milliseconds
Memory Backup	EEPROM (data storage length: more than 10 years, data read/write frequency: more than 1 million times)
Power And I/O Connectors	M12 aviation plug
Output	4-20mA
Communication	Modbus RS485
Optional Output	OCT (pulse output) / one relay alarm
Power Supply	10-24V VDC
Electric Power	＜3W
Circuit Protection	Power reverse protection, power surge protection
Circuit Protection	Each output short-circuit protection, each output surge protection
Protection Level	IP65
Ambient Temperature	-10 to 60°C (no freezing)
Relative Humidity	35 to 85% RH (non-condensing)
Vibration Resistance	10 to 55 Hz, double amplitude 1.5mm, 2 hours each for XYZ axes
Impact Resistance	100m/s2 16 ms pulse, X, Y, Z axis each 1000 times
Meter Material	aluminum alloy, industrial plastic
Cable Length	Standard 2 meters, (PT1000 standard 9 meters)

Flow Range

Pipe diameter	Upper limit flow value ( L/min )
15	60 L/min
20	100 L/min
25	200 L/min
32	300 L/min
40	400 L/min
50	600 L/min
65	1000 L/min

Tip: The inner diameter of the smallest measurable pipe section is greater than or equal to 12mm.

Dimensions

KUF100 Ultrasonic Flowmeter Versatile Applications 0.5-60s Response Time 4-20mA Output 0

DN15-40

KUF100 Ultrasonic Flowmeter Versatile Applications 0.5-60s Response Time 4-20mA Output 1

DN50-65

Ultrasonic Cold (Heat) Meter

KUF100 Ultrasonic Flowmeter Versatile Applications 0.5-60s Response Time 4-20mA Output 2

Appendix:KUF100 Clamp On Ultrasonic Flow Meter Datasheet_v1...
