IP68-rated KWS-380 Digital TDS Sensor For Industrial Water Treatment

IP68-rated KWS-380 Digital TDS Sensor For Industrial Water Treatment

Industrial Water Treatment KWS-380

Industrial Water Treatment TDS Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KWS-380

Contact Us
Request A Quote
Product Details
Precision:
±1.5%,±0.3℃
Storage Temperature:
-5~65℃
Ip Grade:
IP68
Working Temperature:
0~50℃, <0.6MPa
Output:
RS-485, MODBUS Protocol
Power Supply:
12~24VDC
Highlight:

Industrial Water Treatment KWS-380

,

Industrial Water Treatment TDS Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

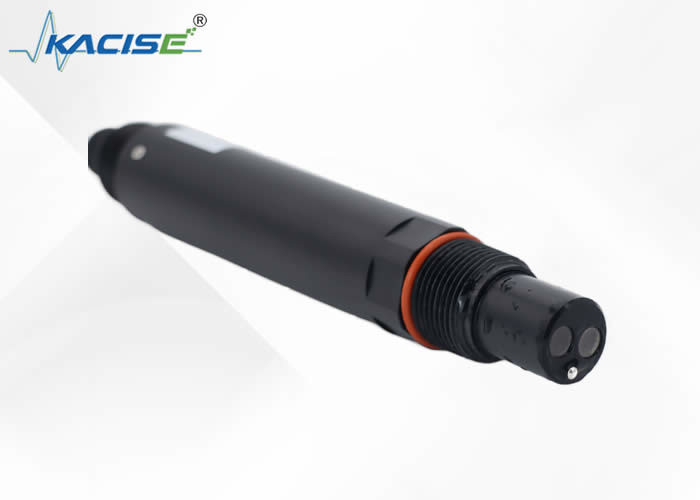

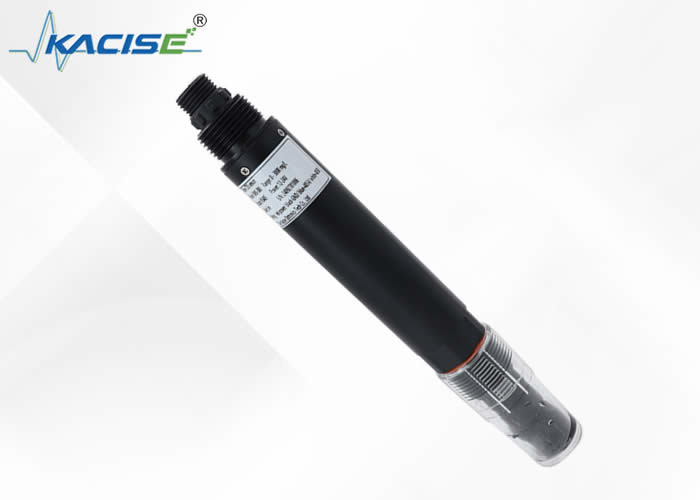

The IP68-rated KWS-380 digital TDS sensor is used for industrial water treatment

Introduction

The IP68-rated KWS-380 digital TDS sensor is a remarkable device specifically designed for industrial water treatment. With its IP68 rating, it exhibits outstanding resistance to dust and water, making it suitable for even the harshest industrial environments. This sensor utilizes advanced digital technology to accurately measure Total Dissolved Solids (TDS) in water. It provides precise and real-time data, which is essential for optimizing industrial water treatment processes. In industrial settings such as power plants, chemical factories, and manufacturing facilities, the KWS-380 sensor helps in monitoring and controlling water quality, ensuring efficient operation of equipment, preventing scaling and corrosion, and meeting strict environmental and production requirements. Its reliable performance and durability make it a valuable asset in the field of industrial water treatment.

Feature

  • For drinking water/surface water/various water supply/industrial water treatment.
  • Signal output: RS-485 (Modbus/RTU protocol)
  • It is convenient to connect to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.
  • Submerged installation, with 3/4NPT pipe thread, easy to submerged or installed in pipes and tanks.
  • IP68 protection level.
  • 0~20μS/cm, 0~200μS/cm, 0~5000μS/cm are optional.
  • Can output conductivity and TDS at the same time.

Technical Specification

Measuring Range

and Resolution

KWS-380A

0~20μS/cm

(TDS 0-10mg/L)

0.01



KWS-380B

0~200μS/cm

(TDS 0-100mg/L)

0.1

KWS-380C

0~5000μS/cm

(TDS 0-3000mg/L)

1

KWS-380D

0~200 mS/cm 0.1
Accuracy ±1.5%,±0.3℃
Storage Temperature -5~65℃
Ip Grade IP68
Working Temperature 0~50℃, <0.6MPa
Output RS-485, MODBUS protocol
Power Supply 12~24VDC
Temperature Compensation Automatic (PT1000)
Wetted Part Material POM and stainless steel
Cable Length Standard 5m, other length customizable
Calibration Method Two-point calibration
Power Consumption 0.2w@12V

Dimension

IP68-rated KWS-380 Digital TDS Sensor For Industrial Water Treatment 0

IP68-rated KWS-380 Digital TDS Sensor For Industrial Water Treatment 1



Production Flow



IP68-rated KWS-380 Digital TDS Sensor For Industrial Water Treatment 2

Company Information

IP68-rated KWS-380 Digital TDS Sensor For Industrial Water Treatment 3

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
