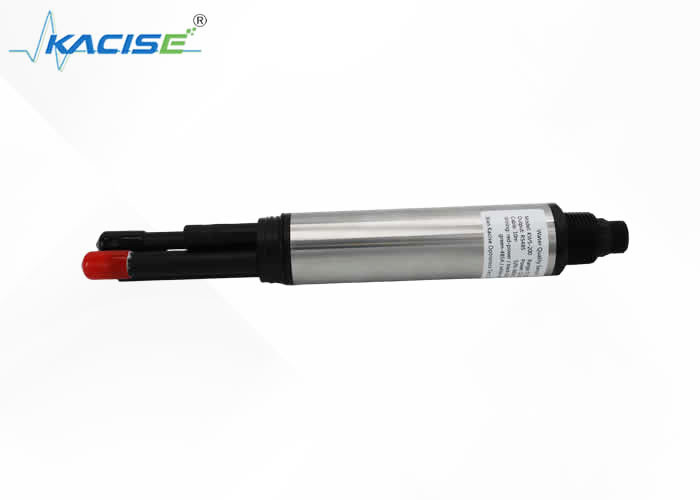

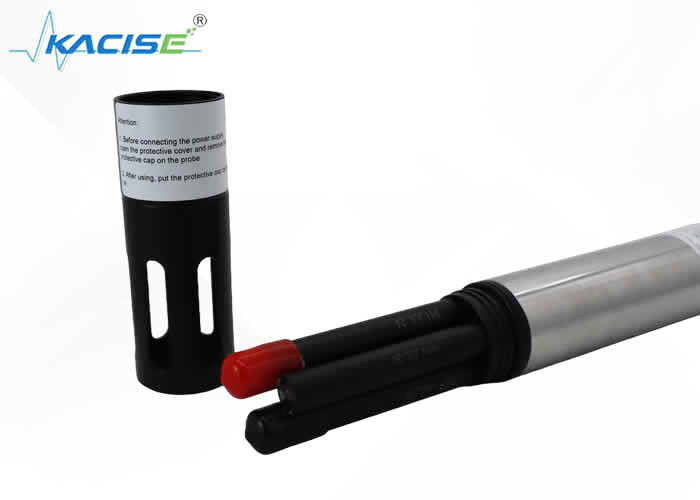

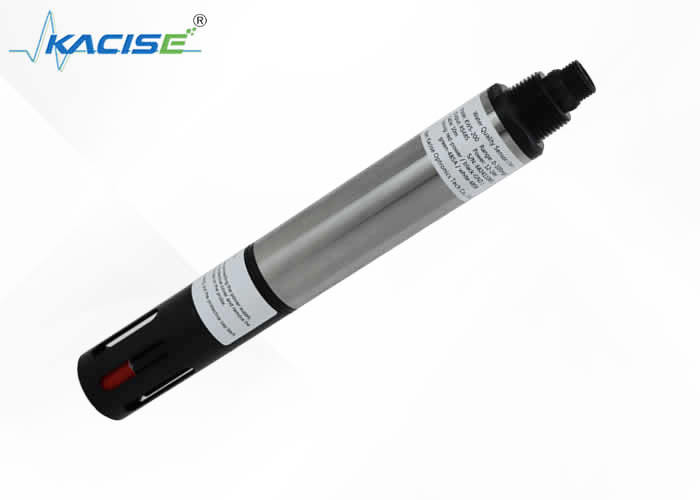

KWS-201 On-line Ammonia Nitrogen Sensor Without Reagent And Pollution Is Used For Real-time Monitoring Of Water Body In Water Source

KWS-201 On-line Ammonia Nitrogen Sensor Without Reagent And Pollution Is Used For Real-time Monitoring Of Water Body In Water Source

Water Body Ammonia Nitrogen Sensor

KWS-201 Ammonia Nitrogen Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KWS-201

Contact Us
Request A Quote
Product Details
Measuring Range:
0-100mg/L (optional 0-1000mg/L)
Measurement Accuracy:
±10% Or ±0.5mg/L (whichever Is Greater)
Sensor Size:
φ36mm*265rmm (with Protective Cover)
Sensor Interface:
Support RS-485, MODBUS Protocol
Assembly:
NPT3/4 Thread, Immersion Installation
Highlight:

Water Body Ammonia Nitrogen Sensor

,

KWS-201 Ammonia Nitrogen Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

Product Description

The KWS-201 on-line ammonia nitrogen sensor is an outstanding solution for safeguarding water sources. It operates without the need for reagents, eliminating the risk of reagent-induced pollution and making it an environmentally friendly choice. This sensor is dedicated to the real-time monitoring of water bodies in water sources. With its advanced technology, it can continuously and accurately detect ammonia nitrogen levels. Its high-precision sensing capabilities ensure reliable data collection, allowing for immediate detection of any abnormal ammonia nitrogen concentrations. This enables prompt actions to be taken to protect the integrity of the water source, maintaining water quality and safeguarding the health of ecosystems and communities that rely on it.
Feature

  • Digital sensor, RS-485 output, supports MODBUS;
  • Ion electrode method, no electrolyte required, electrodes can be replaced separately, easy to maintain.
  • No reagents required, no pollution, more economical and environmentally friendly;
  • Automatically compensate for pH and temperature in water;

Dimension

  • KWS-201 On-line Ammonia Nitrogen Sensor Without Reagent And Pollution Is Used For Real-time Monitoring Of Water Body In Water Source 0

Parameter

Name Ammonia Nitrogen sensor
Measuring range 0-100mg/L (optional 0-1000mg/L)
Measurement accuracy ±10% or ±0.5mg/L (whichever is greater)
Resolution 0.01mg/L
pH range 4-10pH
pH accuracy ±0.1pH
pH resolution 0.01
Sensor size φ36mm*265rmm (with protective cover)
Protection level IP68
Maximum depth 10 meters underwater
Temperature range 0-50℃
Sensor interface Support RS-485, MODBUS protocol
Assembly NPT3/4 thread, immersion installation
Power consumption 0.25W (recommended power supply: DC 9-24V, ≥1A)
Probe cable length 10 meters (default), customizable
Calibration 1-point or 2-point calibration
Casing POM+316L (customizable titanium alloy)
