Name: Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-190
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

0-500mg/L Range COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

KWS-190

Request A Quote

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

Product Details

Weight:

1kg (without Cable)

Measuring Range:

0-500mg/L; 0-1500mg/L

Accuracy:

±5%FS (0-500mg/L); ±10%FS (500-1500mg/L)

Resolution:

0.1mg/L; 0.1NTU

Power Supply:

12~24VDC

Highlight:

0-500mg/L Range COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation

Get Best Price

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

Get Best Price

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

Get Best Price

Wall Mounted Online Optical DO Meter with 0.00-20.00mg/L Measuring Range ±2%F.S. Accuracy and 0.01mg/L Resolution

Get Best Price

86--17719566736

Contact Now

Product Description

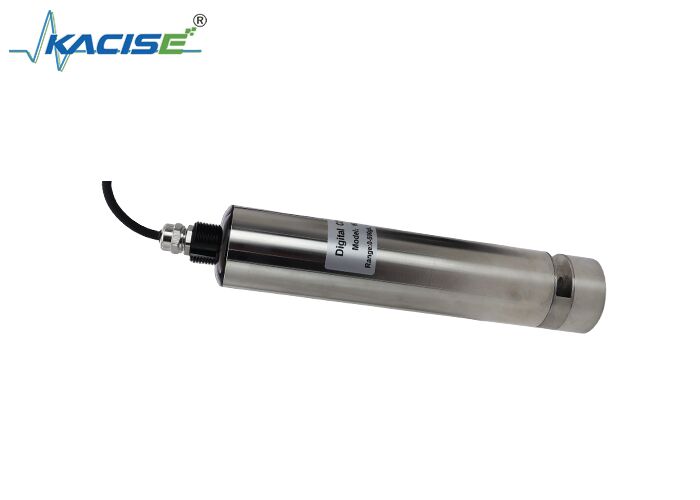

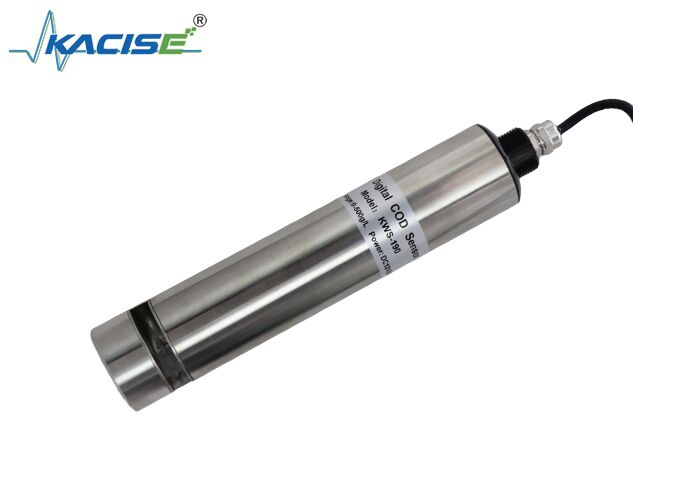

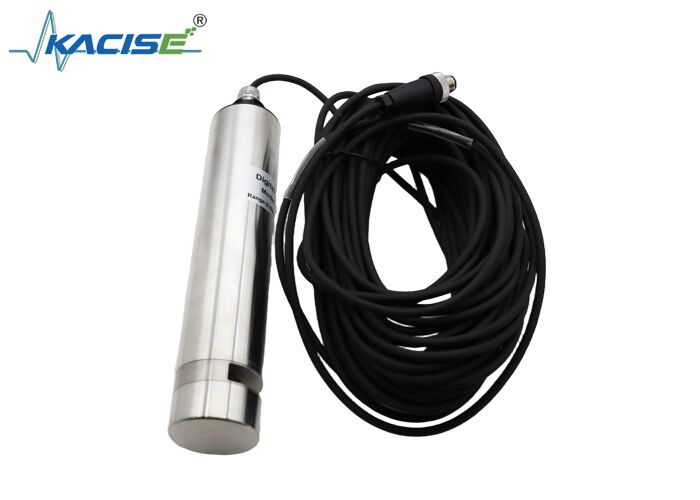

KWS-190 Water Digital COD Sensor

Product Introduction

The UV Method COD Digital Sensor is a digital sensor developed for real-time online monitoring of water COD (Chemical Oxygen Demand). It measures UV light absorption by organic matter in water to determine COD values, with automatic turbidity compensation to eliminate interference from suspended solids.

Main Features

Stainless steel housing with high strength and corrosion resistance
Reagent-free operation for eco-friendly, pollution-free monitoring
Automatic turbidity compensation function
Built-in automatic cleaning to reduce maintenance requirements
Long service life with low operational costs
Direct RS485 interface connectivity for integration with computers, PLCs, and IoT systems
Configurable settings via RS485: slave address, baud rate, calibration, and factory reset
Multi-point calibration support (up to 5 points)

Technical Specifications

Parameter	Specification
Measuring Range	0-500mg/L or 0-1500mg/L (customizable)
Customizable Ranges	COD (0-500mg/L): TOC 0-200mg/L; BOD 0-300mg/L COD (0-1500mg/L): TOC 0-600mg/L; BOD 0-900mg/L
Resolution	0.1mg/L; 0.1NTU
Accuracy	±5%FS (0-500mg/L); ±10%FS (500-1500mg/L)
Turbidity Compensation	0-1000NTU
Interface	RS485 with MODBUS protocol support
Operating Conditions	Ambient Temperature 0-60℃; Water Pressure < 0.1MPa
Power Supply	12-24VDC
Cable	5M standard (customizable length available)
Protection Rating	IP68
Weight	1kg (without cable)

All specifications are subject to change without notice. Contact us for custom configurations or additional technical details.
