Product Description

Product Description

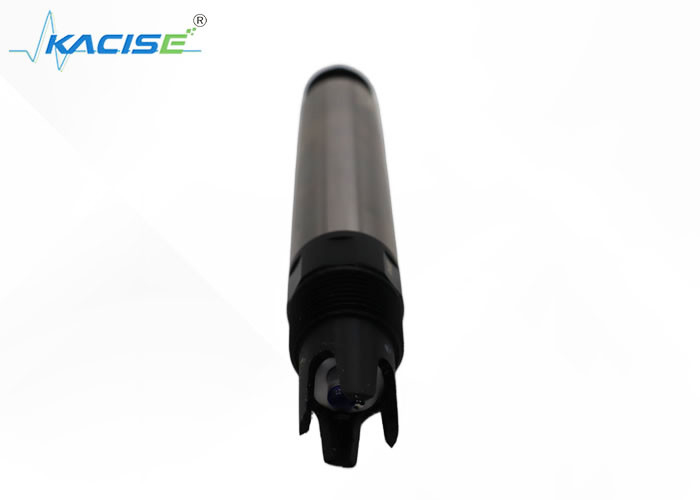

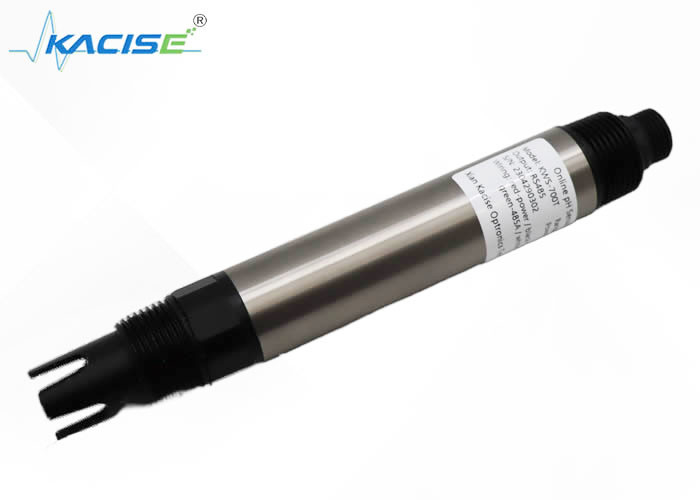

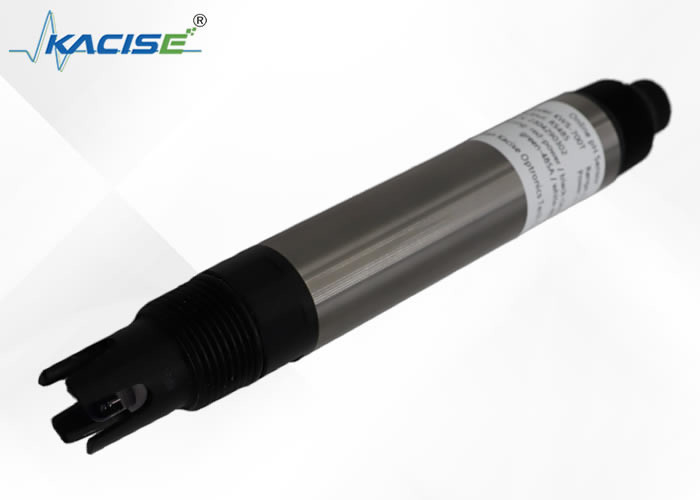

The RS-485 output on-line pH sensor is a highly efficient and reliable device. It is specifically designed to precisely monitor the pH value of the solution during the chemical reaction process. With its RS-485 output interface, it enables seamless integration into complex industrial control systems and allows for efficient data transmission and remote monitoring. It offers high accuracy and stability, ensuring that even the slightest pH variations are detected promptly. This sensor is an essential tool in chemical manufacturing, enabling operators to maintain optimal reaction conditions, enhance product quality, and prevent potential issues caused by pH fluctuations.
Feature

Signal output: RS-485 (Modbus/RTU protocol).
Convenient connection to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.
Using high-performance industrial online electrodes, can work stably for a long time
Built-in temperature sensor, automatic temperature compensation

Parameter

Model	KWS-700T
Measuring Range	0～14pH
Accuracy	±0.02pH
Resolution	0.01pH
Temperature Range	0 ~ 50℃
Work Pressure	3 bar
Temperature Compensation	automatic temperature compensation
Output	RS-485, MODBUS protocol
Power Supply	12~24VDC
Wetted Part Material	POM and Titanium
Installation	NPT3/4 thread
Cable Length	10m, customizable
Calibration Method	Three-point calibration
Ip Grade	IP68

Note:

1. The above technical parameters are the data in the laboratory standard liquid environment;
2. The life of the sensor and the frequency of maintenance and calibration are related to the actual on-site working conditions.

Dimension

Wiring

red - power supply (VCC)
white - 485 data _B (485_B)
green - 485 data _A (485_A)
black -ground (GND)
