Name: Enhanced Solution Control On-line PH Sensors and Automatic Temperature Compensation
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-700T
Price: 5,000.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

Enhanced Solution Control On-line PH Sensors and Automatic Temperature Compensation

Automatic Temperature Compensation PH Sensors

Enhanced Solution Control PH Sensors

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KWS-700T

Request A Quote

Enhanced Solution Control On-line PH Sensors and Automatic Temperature Compensation

Product Details

Highlight:

Automatic Temperature Compensation PH Sensors

Enhanced Solution Control PH Sensors

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KCW101 Frequency - Modulated Electromagnetic Wave Water Treatment Equipment

Get Best Price

KHM100 On - line Automatic Heavy Metal Water Quality Monitor

Get Best Price

KCW104 Automatic Softening Water Device

Get Best Price

KCW105 Ionization Water Purification Device

Get Best Price

86--17719566736

Contact Now

Product Description

Product Description

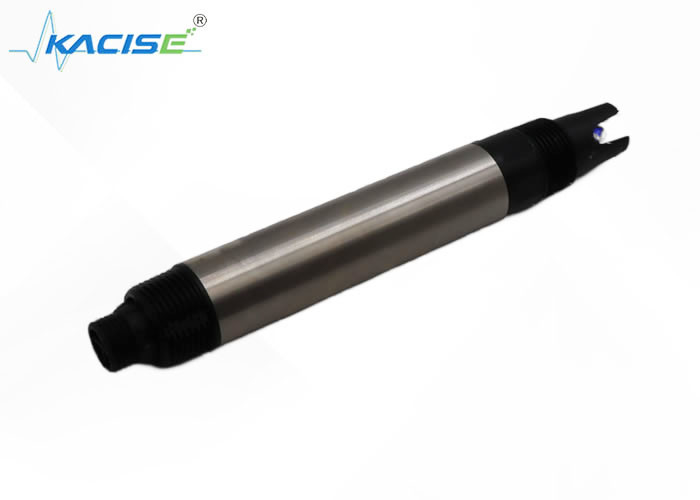

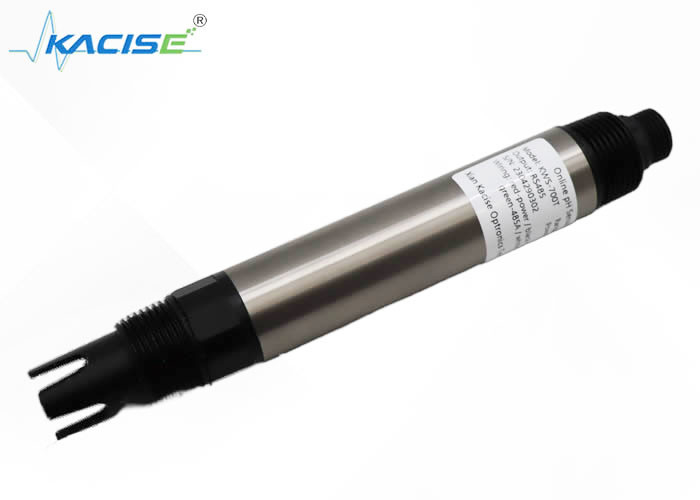

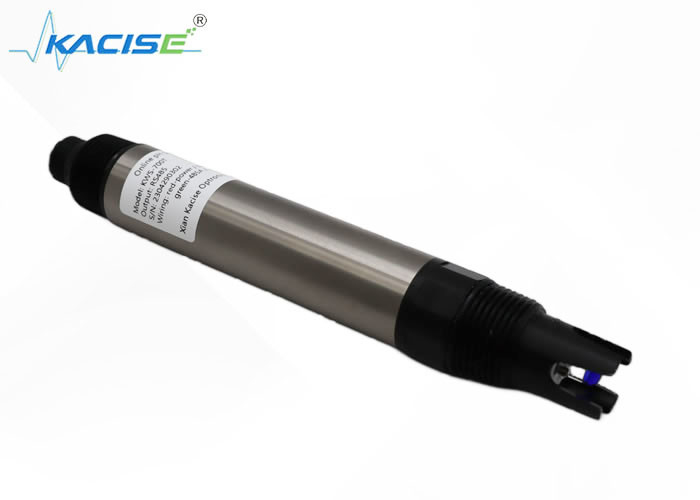

Our on-line pH sensors with automatic Temperature Compensation are a remarkable innovation. These sensors are purposefully engineered to accurately monitor the pH value of solutions during chemical reactions. The automatic temperature compensation feature is a key highlight. It dynamically adjusts the readings based on the temperature changes, ensuring highly precise and reliable pH measurements. This eliminates the errors that could occur due to temperature fluctuations. Ideal for various chemical reaction setups, these sensors provide real-time data, allowing chemists and engineers to maintain optimal reaction conditions, enhance reaction efficiency, and safeguard the quality of the final products.
Feature

Signal output: RS-485 (Modbus/RTU protocol).
Convenient connection to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.
Using high-performance industrial online electrodes, can work stably for a long time
Built-in temperature sensor, automatic temperature compensation

Parameter

Model	KWS-700T
Measuring Range	0～14pH
Accuracy	±0.02pH
Resolution	0.01pH
Temperature Range	0 ~ 50℃
Work Pressure	3 bar
Temperature Compensation	automatic temperature compensation
Output	RS-485, MODBUS protocol
Power Supply	12~24VDC
Wetted Part Material	POM and Titanium
Installation	NPT3/4 thread
Cable Length	10m, customizable
Calibration Method	Three-point calibration
Ip Grade	IP68

Note:

1. The above technical parameters are the data in the laboratory standard liquid environment;
2. The life of the sensor and the frequency of maintenance and calibration are related to the actual on-site working conditions.

Dimension

Wiring

red - power supply (VCC)
white - 485 data _B (485_B)
green - 485 data _A (485_A)
black -ground (GND)

Cases

Production Flow

Product packaging

Company Profile

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety
explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services

* Your inquiry will be replied in 24hours.
* Well-trained and experienced staffs to answer all your enquires in fluent English.
* OEM&ODM, we can help you to design and your request will be put into product.
* Distributorship are offered for your unique design and some our current models.
* Protection of your sales area, ideas of design and all your private information.
* Discounts are offered based on order quantities.
