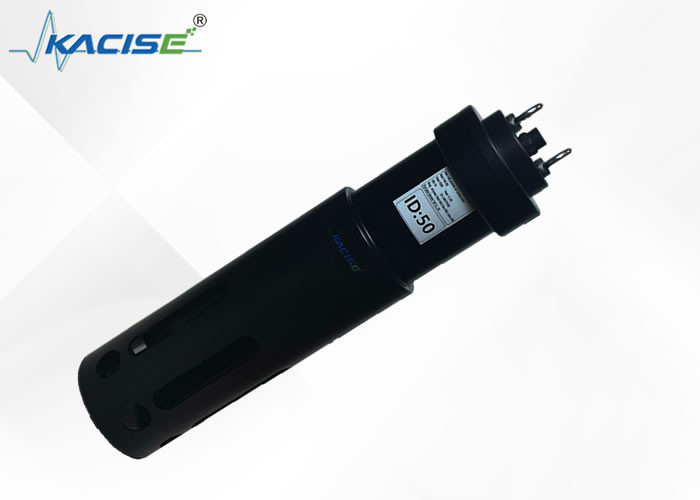

Multi-parameter Water Quality Sensor With Automatic Cleaning Function

Multi-parameter Water Quality Sensor With Automatic Cleaning Function

Multi-parameter Water Quality Sensor

Automatic Cleaning Water Quality Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

CE

Model Number:

KWS-850

Contact Us
Request A Quote
Product Details
Output:
RS-485(Modbus/RTU)
Cleaning Method:
Automatic Cleaning
Power Consumption:
5W@12V
Power Supply:
12VDC±5%
Cable Length:
5 Meters, Other Length Can Be Customized
Highlight:

Multi-parameter Water Quality Sensor

,

Automatic Cleaning Water Quality Sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

Multi-parameter water quality sensor with automatic cleaning function



Product Description



The Multi-parameter water quality sensor with automatic cleaning function is a game-changer in the field of water quality monitoring. This innovative device is engineered to offer comprehensive and accurate data about water conditions. It can simultaneously measure parameters like pH, dissolved oxygen, turbidity, and conductivity, providing a holistic view of water quality.

Equipped with an automatic cleaning function, it takes maintenance hassles out of the equation. The self-cleaning mechanism kicks in at preset intervals, using techniques such as ultrasonic vibrations or water jets to dislodge any dirt, algae, or biofilms that may accumulate on the sensor surface. This ensures consistent precision, making it ideal for applications in environmental protection, aquaculture, and industrial water management, where reliable, long-term monitoring is essential.



Feature

  • Digital sensor, RS-485 bus, Modbus/RTU communication protocol.
  • Equipped with an automatic cleaning device, it can effectively clean the surface of the sensor, prevent microorganisms from attaching, measure more accurately, and lower maintenance costs.
  • Optional digital sensors such as dissolved oxygen, COD, conductivity/salinity, turbidity, ammonia nitrogen, pH, ORP, etc., suitable for long-term online monitoring.
  • Integrated design, can measure 8 parameters (including temperature) at the same time.

Parameter



Dissolved Oxygen Probe
Measuring range 0~20mg/L
Accuracy ±0.4mg/L
Resolution 0.01mg/L
Turbidity Probe

Measuring range and

Accuracy

0~100NTU ±3%or±2NTU
0~1000NTU ±5%or±3NTU
Resolution 0.1NTU
Conductivity / Salinity Probe

Measuring range and

Resolution

0~5000uS/cm 1uS/cm
0~200mS/cm 0.1mS/cm
0~70PSU 0.1PSU
Accuracy ±1.5% F.S.
COD Probe
Measuring range COD Turbidity
0~200mg/L equiv. KHP 0~100NTU
0~500mg/L equiv. KHP 0~200NTU
COD accuracy ±5%F.S.
COD resolution 0.1mg/L
Turbidity accuracy ±5%F.S.
Turbidity resolution 0.1NTU
pH Probe
Measuring range 0~14pH
Accuracy ±0.1pH
Resolution 0.01pH
ORP Probe
Measuring range -1500mV~+1500mV
Accuracy ±6mV
Resolution 1mV
Ammonia Nitrogen Probe
Measuring range 0~100mg/L or 0~1000mg/L
Accuracy ±10% or ±2mg/L
Resolution 0.1mg/L
Temperature
Measuring range 0~50℃
Accuracy ±0.5℃
Resolution 0.1℃
Other Information of Multi-parameter probe
Output RS-485(Modbus/RTU)
Cleaning method Automatic cleaning
Power consumption 5W@12V
power supply 12VDC±5%
Cable length 5 meters, other length can be customized

Dimension
Multi-parameter Water Quality Sensor With Automatic Cleaning Function 0
Note: When the sensor is installed for measurement, use lifting rings or pipe thread installation to avoid direct force on the cable. The sensor connector is M16-5 core waterproof male connector.

Cases

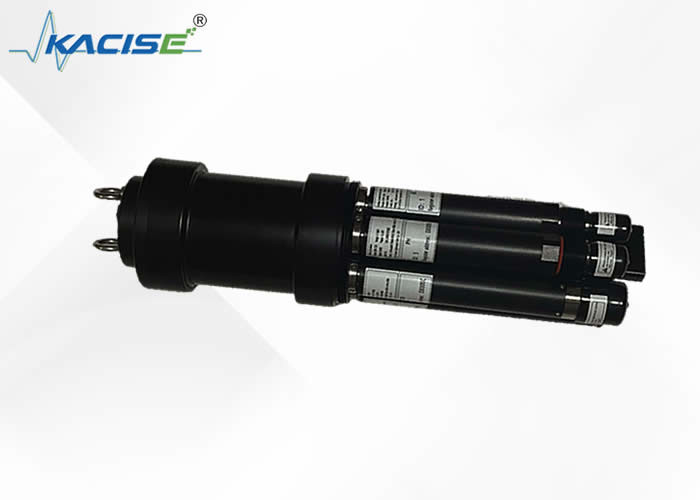

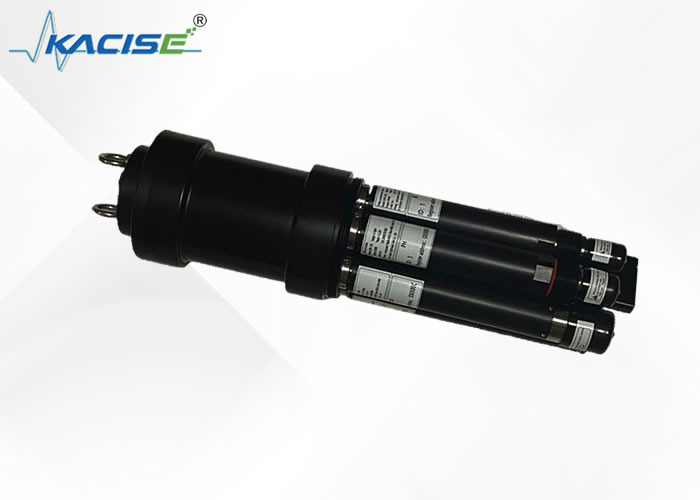

Multi-parameter Water Quality Sensor With Automatic Cleaning Function 1
