Name: KWS-850 On-line Multi-parameter Sensor For Ammonia Nitrogen And PH Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-850
Price: 5,000.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

KWS-850 On-line Multi-parameter Sensor For Ammonia Nitrogen And PH Measurement

pH measurement multi-parameter sensor

Ammonia Nitrogen multi-parameter sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KWS-850

Request A Quote

Product Details

Output:

RS-485(Modbus/RTU)

Cleaning Method:

Automatic Cleaning

Power Consumption:

5W@12V

Power Supply:

12VDC±5%

Accuracy:

±0.1pH

Measuring Range:

0～14pH

Highlight:

pH measurement multi-parameter sensor

Ammonia Nitrogen multi-parameter sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Accuracy Water Sensor Meter Analog Interface 0-85%RH Humidity Range for Precise Measurement

Get Best Price

Precision Water Sensor CO2 Meter with 0-85%RH Humidity Range 3W Power Consumption RS485 Signal Output

Get Best Price

MODBUS Compatible KWS200 On-line Ammonia Nitrogen Sensor with POM Material and RS-485 Output

Get Best Price

wireless 4g pond cod water quality monitoring chemical oxygen demand sensor

Get Best Price

86--17719566736

Contact Now

Product Description

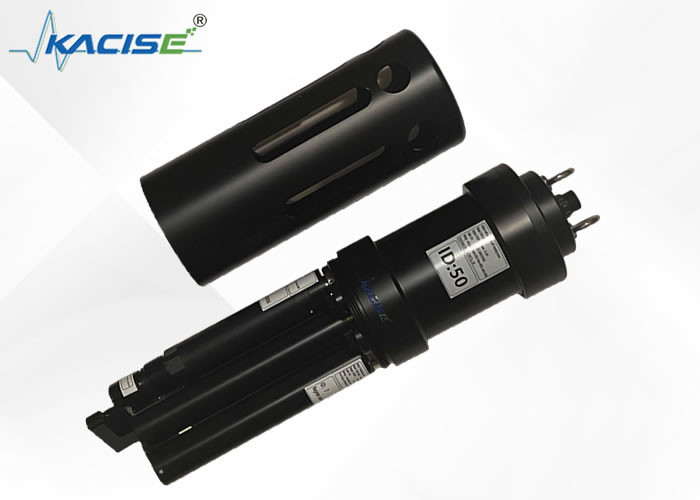

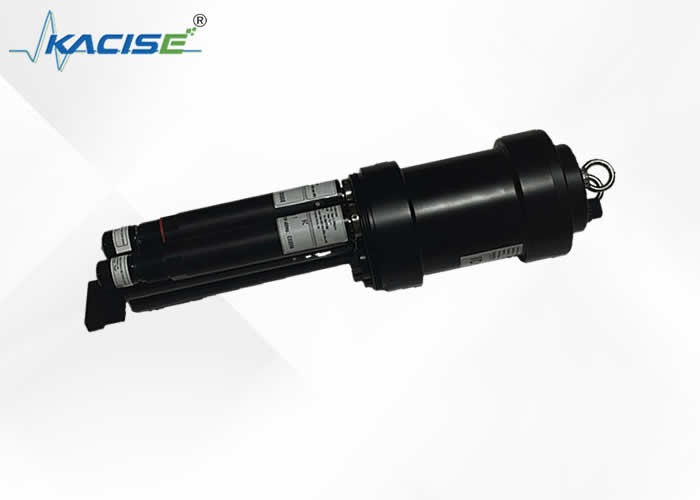

KWS-850 On-line Multi-parameter Sensor For Ammonia Nitrogen And PH Measurement

Key Specifications

Output	RS-485(Modbus/RTU)
Cleaning method	Automatic cleaning
Power consumption	5W@12V
Power supply	12VDC±5%
Accuracy	±0.1pH
Measuring range	0～14pH

Product Overview

The KWS-850 on-line multi-parameter sensor is a precision instrument designed for simultaneous ammonia nitrogen and pH measurement in aquatic environments. Its advanced sensing technology provides reliable, real-time data for water quality monitoring applications.

Key Features

Digital sensor with RS-485 bus and Modbus/RTU communication protocol
Integrated design measures 8 parameters simultaneously (including temperature)
Optional digital sensors for dissolved oxygen, COD, conductivity/salinity, turbidity, ORP, and more
Automatic cleaning system prevents microbial buildup for accurate measurements
Low maintenance requirements with reduced operational costs

Dimensions

Installation note: Use lifting rings or pipe thread installation to avoid direct force on the cable. The sensor connector is M16-5 core waterproof male connector.

Technical Parameters

Dissolved Oxygen Probe

Measuring range	0～20mg/L
Accuracy	±0.4mg/L
Resolution	0.01mg/L

Turbidity Probe

Measuring range	0～100NTU \| 0～1000NTU
Accuracy	±3% or ±2NTU \| ±5% or ±3NTU
Resolution	0.1NTU

Conductivity/Salinity Probe

Measuring range	0～5000uS/cm \| 0～200mS/cm \| 0～70PSU
Resolution	1uS/cm \| 0.1mS/cm \| 0.1PSU
Accuracy	±1.5% F.S.

COD Probe

Measuring range	0～200mg/L equiv. KHP \| 0～500mg/L equiv. KHP
Accuracy	±5% F.S.
Resolution	0.1mg/L

pH Probe

Measuring range	0～14pH
Accuracy	±0.1pH
Resolution	0.01pH

ORP Probe

Measuring range	-1500mV～+1500mV
Accuracy	±6mV
Resolution	1mV

Ammonia Nitrogen Probe

Measuring range	0～100mg/L or 0～1000mg/L
Accuracy	±10% or ±2mg/L
Resolution	0.1mg/L

Temperature

Measuring range	0～50℃
Accuracy	±0.5℃
Resolution	0.1℃

Additional Specifications

Cable length

5 meters (customizable)

Application Examples
