Store Up To 50 PH Measurements With KDM-110 On-line PH Meter Temperature Compensation 0-99.9C PH Protection Level IP65

Store Up To 50 PH Measurements With KDM-110 On-line PH Meter Temperature Compensation 0-99.9C PH Protection Level IP65

50 PH Measurements PH Meter

IP65 PH Meter

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KDM-110

Contact Us
Request A Quote
Product Details
Measuring Range:
0.00~14PH
Resolution:
0.01PH,1mV,0.1℃
Accuracy:
±0.02PH, ±1mV, ±0.3℃
Temperature Compensation:
0~99.9℃(PH)
PH Calibration Range:
0±1.45PH; Slope ±30%
Signal Isolation Output:
4~20mA Isolation Protection Output
Protection Level:
IP65
Highlight:

50 PH Measurements PH Meter

,

IP65 PH Meter

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

The KDM-110 on-line PH meter can store 50 PH measurements



Introduction



The KDM-110 On-line PH Meter is an outstanding device that has revolutionized the way pH levels are monitored, especially in industries where precision matters. In applications such as aquaculture, water treatment plants, and chemical laboratories, this meter plays a pivotal role. Its unique ability to store 50 PH measurements is a significant advantage. This means that operators can easily access historical data to analyze trends over time. For instance, in aquaculture, by looking back at past pH values, farmers can anticipate potential changes in water quality and take proactive measures to prevent stress or disease in their aquatic livestock. The meter is also designed with a user-friendly interface, making it accessible even to those with limited technical expertise. With its durable construction and reliable sensing technology, the KDM-110 ensures accurate and continuous pH measurement, providing peace of mind to users in various fields.



Features

  • Automatic identification of standard solution and capable for factory reset.
  • Watchdog function: make sure the meter doesn't crash.
  • High precision, high stability and preferable antijamming ability.
  • Large screen LCD display, support chinese menu(switching from each other). Multi-parameter simultaneous display.
  • Automatic temperature compensation function, manual adjustment of PH and temperature value.
  • Communicate function: RS-485 communication interface with photoelectric isolation (optional), convertible RS-232. The PH value corresponding 4-20mA current output can be arbitrarily set, And can control 4-20 mA positive and negative. It is widely used in automatic addition of reagent.And it also support to connect loT of company and customize loT for customer.
  • Optional with the company's host computer online acquisition software for data acquisition and processing.
  • Note book: It can store 50 PH measurement datas , users can record measurement data as needed.
  • Waterproof, dustproof, moisture-proof (IP57), high-end design look.
  • Power off protects > 10 years.



Technical Parameters



Measuring range 0.00~14PH
Resolution 0.01PH,1mV,0.1℃
Accuracy ±0.02PH, ±1mV, ±0.3℃
Stability ≤0.01 PH/ 24h
Standard liquid

6.86/4.00/9.18,

7.00/4.00/10.01

Temperature compensation 0~99.9℃(PH)
PH calibration range 0±1.45PH; slope ±30%

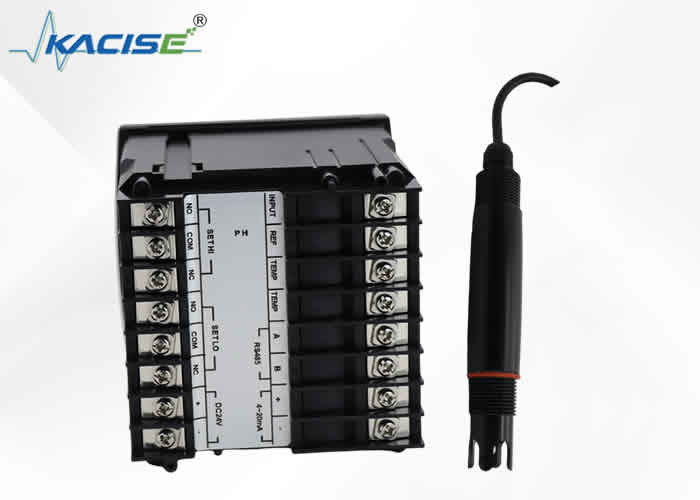

Control interface two group of ON/OFF relay contacts are divided into upper and lower limit alarm control.
Signal isolation output 4~20mA isolation protection output and RS485
Relay the relay hysteresis is arbitrarily set, relay load 3A 220VAC
Working conditions Ambient temperature is 0~60℃, relative humidity ≤90%
Input impedance ≥1×1012Ω
Output load <750Ω(4-20mA)
Working voltage 220VAC ±10%, 50/60hz or DC24V and DC110V
Dimensions 96×96×115 mm
Hole-cutting Size 92×92mm
Weight 0.9Kg
Protection level IP57
