Name: KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-850
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy

On-line Water Quality Sensor

KWS-850 Water Quality Sensor

Low maintenance Water Quality Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KWS-850

Request A Quote

Product Details

Output:

RS-485(Modbus/RTU)

Power Consumption:

5W@12V

Power Supply:

12VDC±5%

Accuracy:

±0.1pH

Measuring Range:

0～100mg/L Or 0～1000mg/L

Highlight:

On-line Water Quality Sensor

KWS-850 Water Quality Sensor

Low maintenance Water Quality Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KWS-850 Multi-parameter Water Quality Sensor with RS-485(Modbus/RTU) Output, Automatic Cleaning, and ±0.1pH Accuracy for Wastewater Treatment

Get Best Price

Portable Conductivity Meter SC92 with IP67 Waterproof, Wide Measuring Range, and Large Backlit Display

Get Best Price

KSM-150B Wall Mounted Residual Chlorine Meter with Non-Membrane Sensor and 4-20mA Output

Get Best Price

Video

KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy

Get Best Price

Contact Now

Product Description

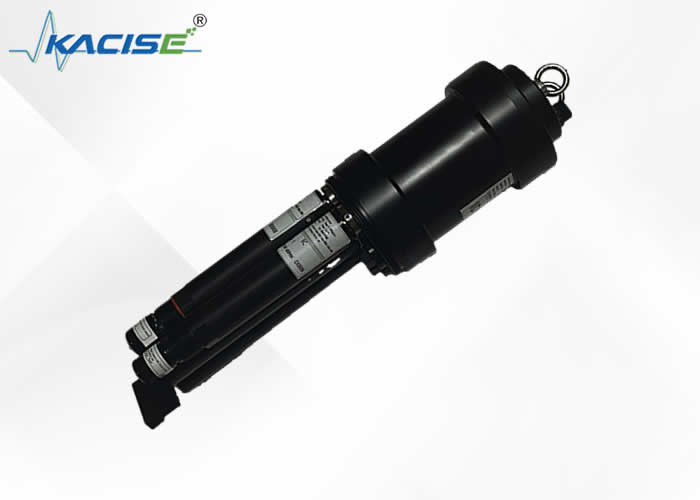

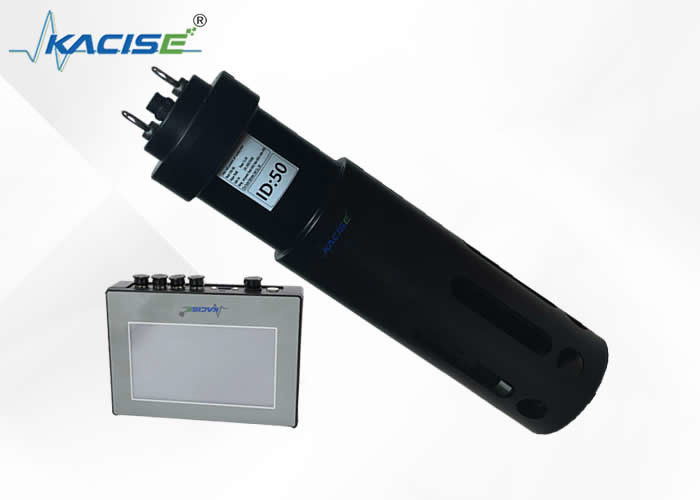

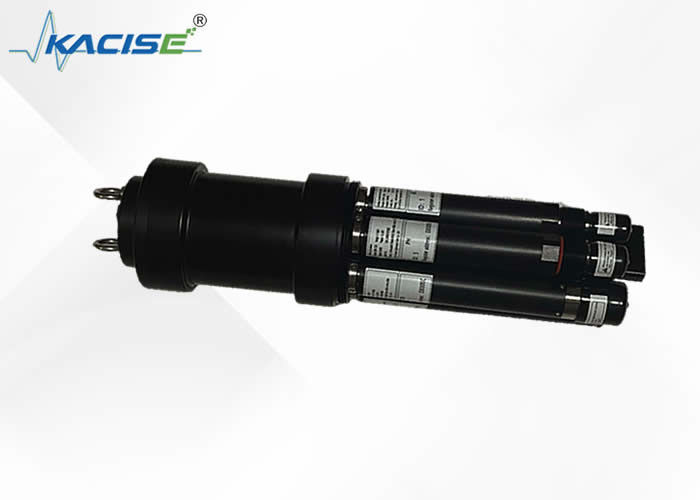

KWS-850 Online Multi-Parameter Water Quality Sensor

Low Maintenance Design

The KWS-850 online multi-parameter water quality sensor features exceptional low-maintenance characteristics that distinguish it in the market. Its self-cleaning mechanism utilizes ultrasonic vibrations or mechanical brushing to effectively remove fouling substances such as algae, sediment, or biofilms that accumulate on the sensor surface. This ensures continuous accurate measurements while significantly reducing manual cleaning requirements.

Constructed with durable, corrosion-resistant materials, the sensor withstands harsh aquatic environments, including those with high salinity or chemical impurities. This durability minimizes component replacements and repairs. The integrated intelligent diagnostic system continuously monitors sensor performance, detecting potential issues early and alerting operators promptly to minimize downtime and maintenance efforts.

Technical Specifications

Parameter	Measuring Range	Accuracy	Resolution
Dissolved Oxygen Probe	0-20mg/L	±0.4mg/L	0.01mg/L
Turbidity Probe	0-100NTU / 0-1000NTU	±3% or ±2NTU / ±5% or ±3NTU	0.1NTU
Conductivity/Salinity Probe	0-5000μS/cm / 0-200mS/cm / 0-70PSU	±1.5% F.S.	1μS/cm / 0.1mS/cm / 0.1PSU
COD Probe	COD: 0-200mg/L equiv. KHP / 0-500mg/L equiv. KHP Turbidity: 0-100NTU / 0-200NTU	COD: ±5% F.S. Turbidity: ±5% F.S.	COD: 0.1mg/L Turbidity: 0.1NTU
pH Probe	0-14pH	±0.1pH	0.01pH
ORP Probe	-1500mV to +1500mV	±6mV	1mV
Ammonia Nitrogen Probe	0-100mg/L or 0-1000mg/L	±10% or ±2mg/L	0.1mg/L
Temperature	0-50℃	±0.5℃	0.1℃

Additional Specifications

Parameter	Specification
Output	RS-485 (Modbus/RTU)
Cleaning Method	Automatic cleaning
Power Consumption	5W @ 12V
Power Supply	12VDC ±5%
Cable Length	5 meters (customizable)

Key Features

Digital sensor with RS-485 bus and Modbus/RTU communication protocol
Automatic cleaning device effectively cleans sensor surface, prevents microorganism attachment, ensures accurate measurement, and reduces maintenance costs
Integrated design simultaneously measures 8 parameters (including temperature)
Optional digital sensors including dissolved oxygen, COD, conductivity/salinity, turbidity, ammonia nitrogen, pH, ORP - suitable for long-term online monitoring

Product Dimensions

Wiring Configuration

Red line - Power supply (VCC)

White line - 485 data B (485_B)

Blue line - 485 data A (485_A)

Black line - Ground line (GND)
