Name: KWS-850 Multi-parameter Water Quality Sensor with RS-485(Modbus/RTU) Output, Automatic Cleaning, and ±0.1pH Accuracy for Wastewater Treatment
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-850
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

KWS-850 Multi-parameter Water Quality Sensor with RS-485(Modbus/RTU) Output, Automatic Cleaning, and ±0.1pH Accuracy for Wastewater Treatment

Wastewater Treatment Plants Water Sensor

High Accuracy Water Sensor

Multi-parameter Water Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KWS-850

Request A Quote

Product Details

Output:

RS-485(Modbus/RTU)

Power Consumption:

5W@12V

Power Supply:

12VDC±5%

Accuracy:

±0.1pH

Measuring Range:

0～14pH

COD Accuracy:

±5%F.S.

Turbidity Accuracy:

±5%F.S.

Highlight:

Wastewater Treatment Plants Water Sensor

High Accuracy Water Sensor

Multi-parameter Water Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KWS-850 Multi-parameter Water Quality Sensor with RS-485(Modbus/RTU) Output, Automatic Cleaning, and ±0.1pH Accuracy for Wastewater Treatment

Get Best Price

Portable Conductivity Meter SC92 with IP67 Waterproof, Wide Measuring Range, and Large Backlit Display

Get Best Price

KSM-150B Wall Mounted Residual Chlorine Meter with Non-Membrane Sensor and 4-20mA Output

Get Best Price

Video

KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy

Get Best Price

Contact Now

Product Description

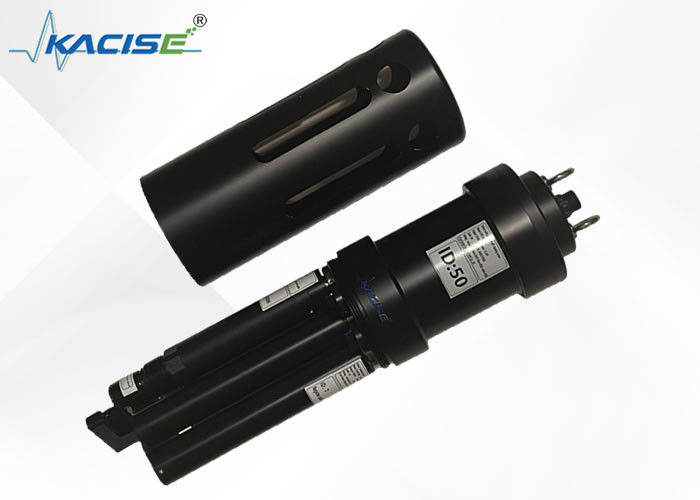

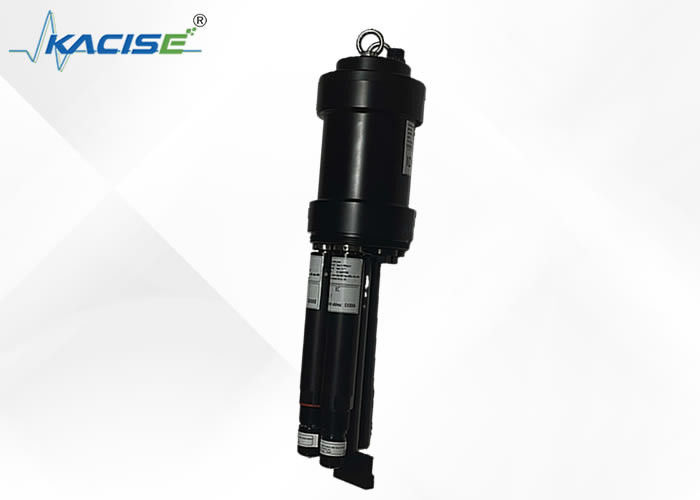

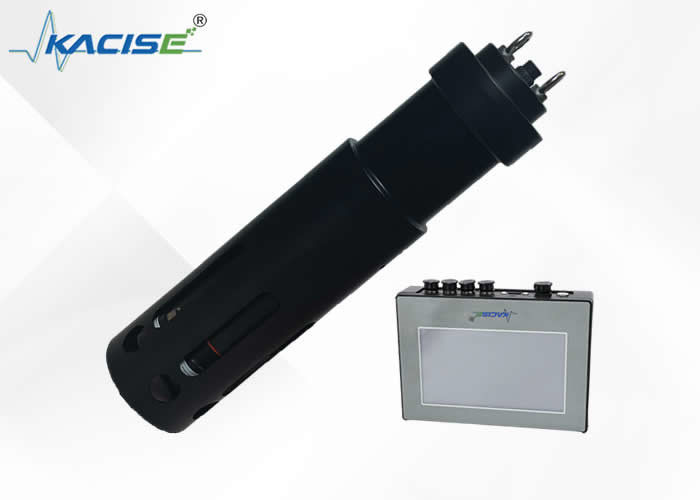

KWS-850 On-line Multi-Parameter Water Quality Sensor

The KWS-850 on-line multi-parameter water quality sensor is an indispensable asset for wastewater treatment plants. It is meticulously designed to meet the complex demands of monitoring and treating diverse wastewater streams. This advanced sensor can simultaneously measure multiple crucial parameters including pH level, dissolved oxygen, conductivity, turbidity, total dissolved solids (TDS), and specific contaminants. With its reliable and comprehensive data, the KWS-850 significantly enhances the efficiency and effectiveness of wastewater treatment, safeguarding the environment and public health.

Key Features

Optional digital sensors including dissolved oxygen, COD, conductivity/salinity, turbidity, ammonia nitrogen, pH, ORP
Digital sensor with RS-485 bus and Modbus/RTU communication protocol
Equipped with automatic cleaning device to prevent microorganism attachment
Integrated design capable of measuring 8 parameters simultaneously (including temperature)
Suitable for long-term online monitoring with reduced maintenance costs

Technical Specifications

Dissolved Oxygen Probe

Measuring Range	0～20mg/L
Accuracy	±0.4mg/L
Resolution	0.01mg/L

Turbidity Probe

Measuring Range	0～100NTU \| 0～1000NTU
Accuracy	±3% or ±2NTU \| ±5% or ±3NTU
Resolution	0.1NTU

Conductivity / Salinity Probe

Measuring Range & Resolution	0～5000uS/cm (1uS/cm) 0～200mS/cm (0.1mS/cm) 0～70PSU (0.1PSU)
Accuracy	±1.5% F.S.

COD Probe

Measuring Range	COD: 0～200mg/L equiv. KHP \| 0～500mg/L equiv. KHP Turbidity: 0～100NTU \| 0～200NTU
COD Accuracy	±5% F.S.
COD Resolution	0.1mg/L
Turbidity Accuracy	±5% F.S.
Turbidity Resolution	0.1NTU

pH Probe

Measuring Range	0～14pH
Accuracy	±0.1pH
Resolution	0.01pH

ORP Probe

Measuring Range	-1500mV～+1500mV
Accuracy	±6mV
Resolution	1mV

Ammonia Nitrogen Probe

Measuring Range	0～100mg/L or 0～1000mg/L
Accuracy	±10% or ±2mg/L
Resolution	0.1mg/L

Temperature

Measuring Range	0～50℃
Accuracy	±0.5℃
Resolution	0.1℃

General Specifications

Output	RS-485 (Modbus/RTU)
Cleaning Method	Automatic cleaning
Power Consumption	5W@12V
Power Supply	12VDC±5%
Cable Length	5 meters (customizable)

Dimensions
