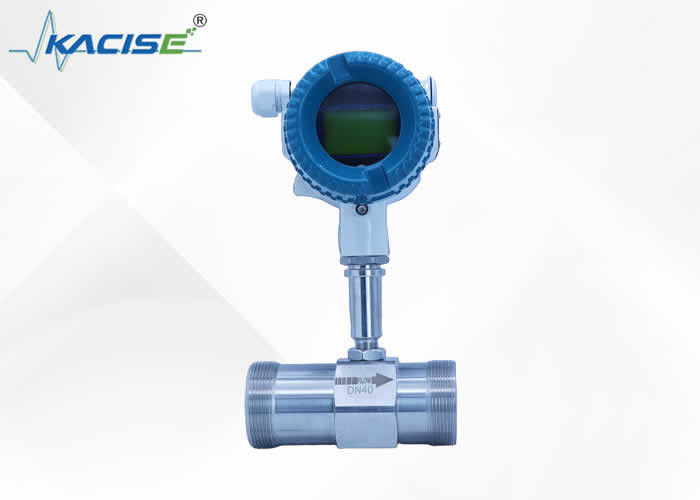

High-Pressure Turbine Flow Meter with 2.5 to 6.3 Mpa Capacity and Thread or Flange Connection for Explosion-Proof Applications

Turbine flow meters

2.5 Mpa Turbine flow meters

6.3 Mpa Turbine flow meters

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KTF

Request A Quote

High-Pressure Turbine Flow Meter with 2.5 to 6.3 Mpa Capacity and Thread or Flange Connection for Explosion-Proof Applications

Product Details

Ambient Temperature:

-20～+55℃

Atmospheric Pressure:

86～106Kpa

Ordinary Type Medium Temperature:

-20～+120℃

Explosion-Proof Type Medium Temperature:

-20～70℃

Connection:

Thread Or Flange

Highlight:

Turbine flow meters

2.5 Mpa Turbine flow meters

6.3 Mpa Turbine flow meters

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

High Accuracy Ultrasonic CO2 Gas Flow Meter with RS485 Interface and DC8~36V Power Supply

Get Best Price

High Accuracy Pulse Analog Output Turbine Flow Meter Sanitary Type for Olive Oil and Palm Oil

Get Best Price

High Accuracy 1.0% IP68 Protected Biogas Flow Meter with 4-20mA Output for LPG and Gas Measurement

Get Best Price

High Precision ±0.2% Accuracy Turbine Flow Meter with Stainless Steel 316 and RS485 Communication

Get Best Price

Contact Now

Product Description

Turbine flow meters with a pressure bearing capacity of 2.5 to 6.3 Mpa

Introduction

The Turbine Flow Meters with a pressure bearing capacity of 2.5 to 6.3 Mpa are remarkable instruments. They are designed to measure fluid flow under high pressure conditions. These meters employ advanced turbine technology, where the turbine rotates as fluid passes through, and the rotation is converted into electrical signals for accurate flow rate determination. Their robust construction enables them to withstand pressures ranging from 2.5 to 6.3 Mpa, ensuring reliable performance. Ideal for industries like oil and gas, chemical, and power generation, they provide precise flow data, facilitating efficient operations and enhancing safety in high-pressure systems.

Technical Specifications

Pipe Size (DN)mm	Flow Range(m3/h)			Nominal pressure (Mpa)
Pipe Size (DN)mm	0.2%	0.5%	1.0%	Nominal pressure (Mpa)
4			0.04-0.25	6.3
6			0.1-0.6	6.3
10			0.2-1.2	6.3
15	1.2～4	0.6～6	0.4～6	2.5 6.3 16
20	2～6	0.8～8	0.6～8
25	3～10	1.2～12	1.2～12
32	4～12	1.5～15	1～20
40	8～25	3～30	3～30
50	12～40	5～50	5～50	6.3 2.5
65	15～60	7～70	5～70
80	20～100	16～100	12～120
100	50～160	25～160	20～200
125	50～200	30～250	25～280
150	100～300	50～300	40～400
200	200～600	100～600	80～800
250	300～1000	160～1000	120～1200	2.5
300		250～1600
400		400～2500
500		600～4000

Ambient Temperature	-20～+55℃
Relative Temperature	5%～95%
Atmospheric Pressure	86～106Kpa
Ordinary Type Medium Temperature	-20～+120℃
Explosion-Proof Type Medium Temperature	-20～70℃
Explosion Proof	dⅡBT5
Power Supply	Two wire: +24VDC Three wire:+12VDC～＋24VDC
Connection	Thread or Flange

Dimensions

Thread Connection

High-Pressure Turbine Flow Meter with 2.5 to 6.3 Mpa Capacity and Thread or Flange Connection for Explosion-Proof Applications 0

Flange Connection

High-Pressure Turbine Flow Meter with 2.5 to 6.3 Mpa Capacity and Thread or Flange Connection for Explosion-Proof Applications 1

Pipe Size DN (mm)	Sensor Dimension (mm)	Flange Dimension (mm)						thread size

	L	H	D	D₁	D₂	D₃	n-do	L1(mm)	G
4	225	145							1/2
6	225	145							1/2
10	345	170							1/2
15	75	190	95	65	45		4-14	23	1
20	85	210	105	75	55		4-14	23	1
25	100	230	115	85	65		4-14	30	11/4
32	120	250	140/135	100	78		4-18	30	11/4
40	140	260	150/145	110	85		4-18	35	2
50	150	270	165/160	125	100		4-18
65	150	290	185/180	145	125		4-18
80	200	300	200/195	160	135		8-18
100	220	330	220/215	180	155		8-18
125	250	380	250/245	210	185		8-18
150	300	390	285/280	240	210		8-23
200	360	455	340/335	295	265		12-23
250	400	510	405	355	320		12-26/25
300	420	565	460	410	375		12-26/25
400	560	680	580	525	485		16-30
500	600	790	715/705	650	608		20-34
