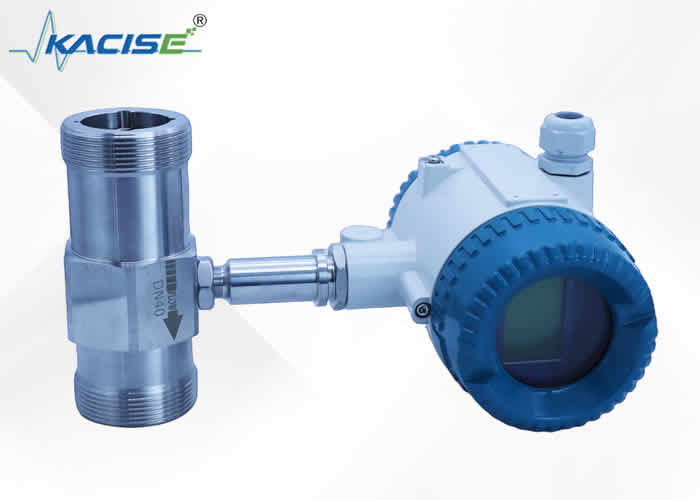

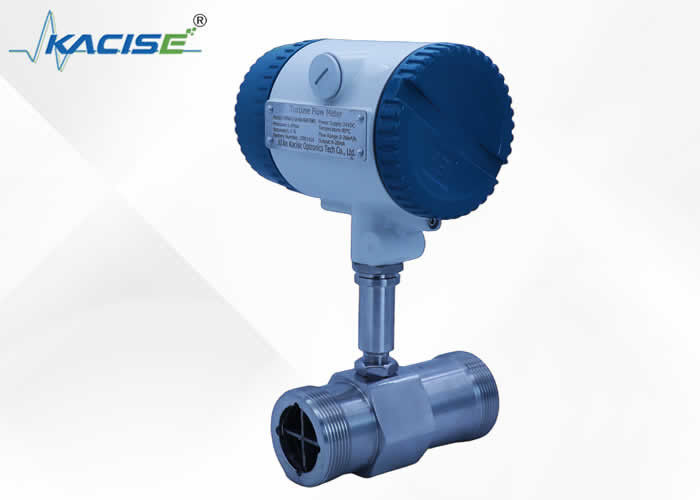

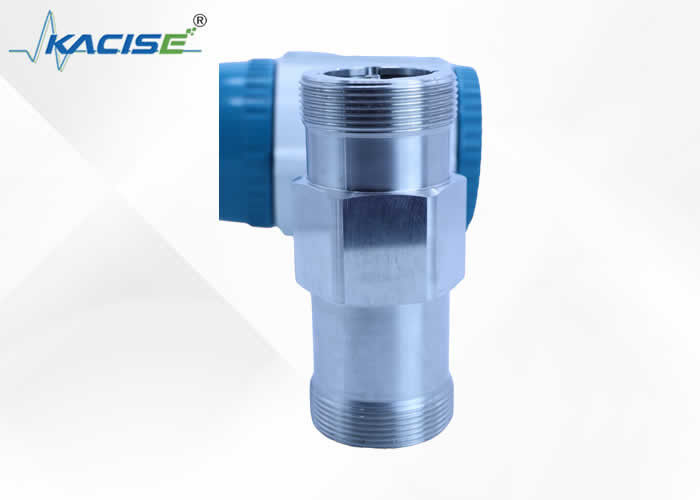

Anti-Interference KTF Intelligent Turbine Flow Meter with Explosion Proof dⅡBT5 for DN4 to DN500 Pipes

KTF Turbine Flow Meter

Intelligent Turbine Flow Meter

Anti interference Turbine Flow Meter

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KTF

Request A Quote

Anti-Interference KTF Intelligent Turbine Flow Meter with Explosion Proof dⅡBT5 for DN4 to DN500 Pipes

Product Details

Ambient Temperature:

-20～+55℃

Atmospheric Pressure:

86～106Kpa

Ordinary Type Medium Temperature:

-20～+120℃

Explosion-Proof Type Medium Temperature:

-20～70℃

Explosion Proof:

DⅡBT5

Highlight:

KTF Turbine Flow Meter

Intelligent Turbine Flow Meter

Anti interference Turbine Flow Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

High Accuracy Ultrasonic CO2 Gas Flow Meter with RS485 Interface and DC8~36V Power Supply

Get Best Price

High Accuracy Pulse Analog Output Turbine Flow Meter Sanitary Type for Olive Oil and Palm Oil

Get Best Price

High Accuracy 1.0% IP68 Protected Biogas Flow Meter with 4-20mA Output for LPG and Gas Measurement

Get Best Price

High Precision ±0.2% Accuracy Turbine Flow Meter with Stainless Steel 316 and RS485 Communication

Get Best Price

Contact Now

Product Description

Anti - interference KTF Intelligent Turbine Flow Meter used for measuring oils and various liquids

Introduction

The Anti - interference KTF Intelligent Turbine Flow Meter is a game - changing solution for fluid measurement. Engineered with cutting - edge anti - interference technology, it can operate stably even in environments full of electromagnetic noise, ensuring highly accurate readings.

This intelligent meter is equipped with an advanced single - chip microprocessor, which enables automatic data processing and real - time monitoring. It is specifically designed for measuring oils, as well as a diverse range of organic and inorganic liquids.

With a compact and durable structure, it's easy to install and maintain. Moreover, its cost - effectiveness makes it a popular choice among industries. Whether for industrial production or laboratory testing, this flow meter offers reliable and efficient fluid measurement services.

Technical Specifications

Pipe Size (DN)mm	Flow Range(m3/h)			Nominal pressure (Mpa)
Pipe Size (DN)mm	0.2%	0.5%	1.0%	Nominal pressure (Mpa)
4			0.04-0.25	6.3
6			0.1-0.6	6.3
10			0.2-1.2	6.3
15	1.2～4	0.6～6	0.4～6	2.5 6.3 16
20	2～6	0.8～8	0.6～8
25	3～10	1.2～12	1.2～12
32	4～12	1.5～15	1～20
40	8～25	3～30	3～30
50	12～40	5～50	5～50	6.3 2.5
65	15～60	7～70	5～70
80	20～100	16～100	12～120
100	50～160	25～160	20～200
125	50～200	30～250	25～280
150	100～300	50～300	40～400
200	200～600	100～600	80～800
250	300～1000	160～1000	120～1200	2.5
300		250～1600
400		400～2500
500		600～4000

Ambient Temperature	-20～+55℃
Relative Temperature	5%～95%
Atmospheric Pressure	86～106Kpa
Ordinary Type Medium Temperature	-20～+120℃
Explosion-Proof Type Medium Temperature	-20～70℃
Explosion Proof	dⅡBT5
Power Supply	Two wire: +24VDC Three wire:+12VDC～＋24VDC
Connection	Thread or Flange

Dimensions

Thread Connection

Flange Connection

Pipe Size DN (mm)	Sensor Dimension (mm)	Flange Dimension (mm)						thread size

	L	H	D	D₁	D₂	D₃	n-do	L1(mm)	G
4	225	145							1/2
6	225	145							1/2
10	345	170							1/2
15	75	190	95	65	45		4-14	23	1
20	85	210	105	75	55		4-14	23	1
25	100	230	115	85	65		4-14	30	11/4
32	120	250	140/135	100	78		4-18	30	11/4
40	140	260	150/145	110	85		4-18	35	2
50	150	270	165/160	125	100		4-18
65	150	290	185/180	145	125		4-18
80	200	300	200/195	160	135		8-18
100	220	330	220/215	180	155		8-18
125	250	380	250/245	210	185		8-18
150	300	390	285/280	240	210		8-23
200	360	455	340/335	295	265		12-23
250	400	510	405	355	320		12-26/25
300	420	565	460	410	375		12-26/25
400	560	680	580	525	485		16-30
500	600	790	715/705	650	608		20-34
