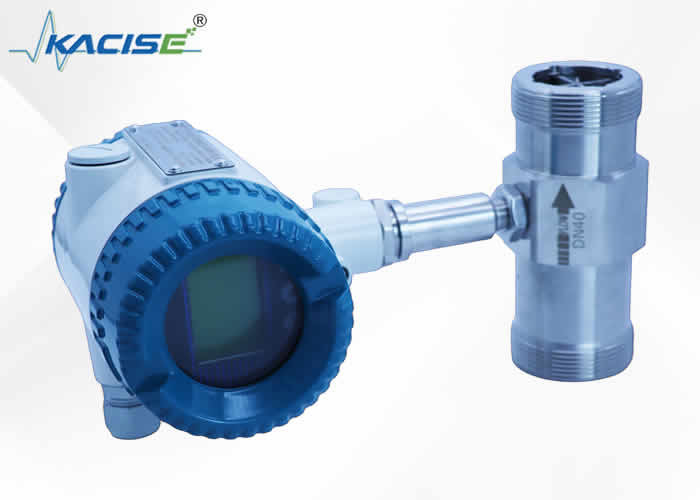

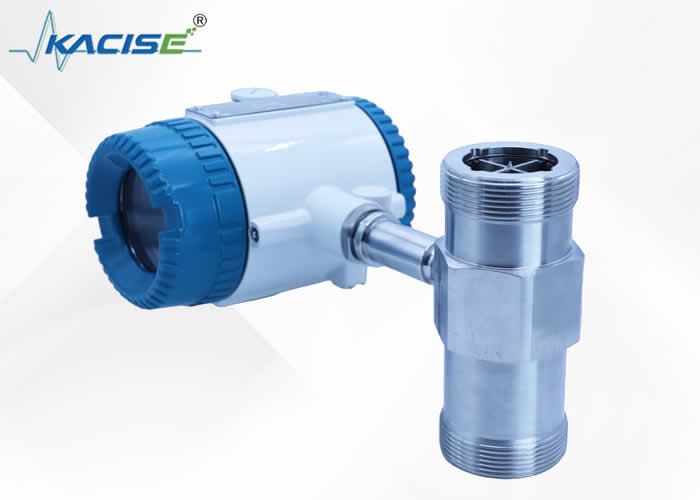

High - Cost - Performance KTF Turbine Flow Meter For Measuring Organic And Inorganic Liquids

Inorganic Liquids Turbine Flow Meter

Organic Liquids Turbine Flow Meter

High Performance Turbine Flow Meter

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KTF

Request A Quote

High - Cost - Performance KTF Turbine Flow Meter For Measuring Organic And Inorganic Liquids

Product Details

Ambient Temperature:

-20～+55℃

Atmospheric Pressure:

86～106Kpa

Ordinary Type Medium Temperature:

-20～+120℃

Explosion-Proof Type Medium Temperature:

-20～70℃

Connection:

Thread Or Flange

Explosion Proof:

DⅡBT5

Highlight:

Inorganic Liquids Turbine Flow Meter

Organic Liquids Turbine Flow Meter

High Performance Turbine Flow Meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Anti - Interference KTF Intelligent Turbine Flow Meter Used For Measuring Oils And Various Liquids

Get Best Price

Turbine Flow Meters With A Pressure Bearing Capacity Of 2.5 To 6.3 Mpa

Get Best Price

Durable Turbine Flow Meters DN4 To DN500 For Harsh Ambient Temperature

Get Best Price

Turbine Flow Meter For Measuring The Flow Of Clean Liquids

Get Best Price

86--17719566736

Contact Now

Product Description

High - cost - performance KTF Turbine Flow Meter for Measuring Organic and Inorganic Liquids

Introduction

The High - cost - performance KTF Turbine Flow Meter is a remarkable innovation in the field of fluid measurement. This meter not only stands out for its affordability but also for its outstanding functionality.

Equipped with advanced anti - interference technology, it can operate stably in environments with strong electromagnetic interference, guaranteeing highly accurate measurement results. An advanced single - chip microprocessor endows it with automatic data processing and real - time monitoring capabilities, greatly enhancing measurement efficiency.

Specifically designed for measuring a wide variety of organic and inorganic liquids, it is suitable for numerous industrial applications. Its compact and durable structure ensures easy installation and maintenance, reducing overall operating costs. Whether in large - scale industrial production or laboratory - scale testing, this flow meter offers reliable and efficient fluid measurement services, making it an ideal choice for those seeking cost - effective and high - quality measurement solutions.

Technical Specifications

Pipe Size (DN)mm	Flow Range(m3/h)			Nominal pressure (Mpa)
Pipe Size (DN)mm	0.2%	0.5%	1.0%	Nominal pressure (Mpa)
4			0.04-0.25	6.3
6			0.1-0.6	6.3
10			0.2-1.2	6.3
15	1.2～4	0.6～6	0.4～6	2.5 6.3 16
20	2～6	0.8～8	0.6～8
25	3～10	1.2～12	1.2～12
32	4～12	1.5～15	1～20
40	8～25	3～30	3～30
50	12～40	5～50	5～50	6.3 2.5
65	15～60	7～70	5～70
80	20～100	16～100	12～120
100	50～160	25～160	20～200
125	50～200	30～250	25～280
150	100～300	50～300	40～400
200	200～600	100～600	80～800
250	300～1000	160～1000	120～1200	2.5
300		250～1600
400		400～2500
500		600～4000

Ambient Temperature	-20～+55℃
Relative Temperature	5%～95%
Atmospheric Pressure	86～106Kpa
Ordinary Type Medium Temperature	-20～+120℃
Explosion-Proof Type Medium Temperature	-20～70℃
Explosion Proof	dⅡBT5
Power Supply	Two wire: +24VDC Three wire:+12VDC～＋24VDC
Connection	Thread or Flange

Dimensions

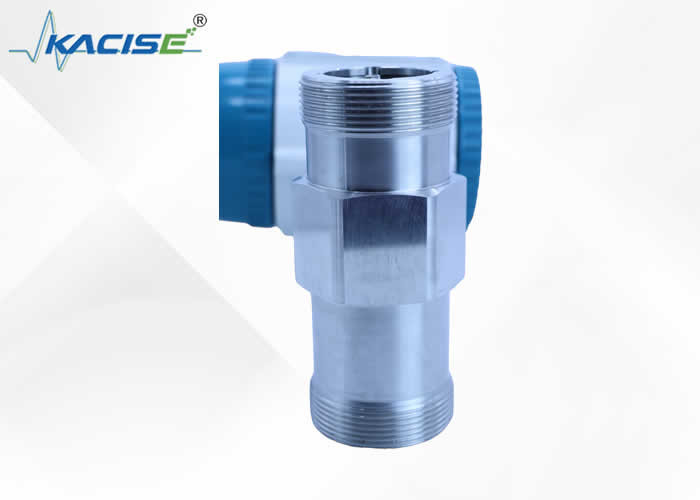

Thread Connection

High - Cost - Performance KTF Turbine Flow Meter For Measuring Organic And Inorganic Liquids 0

Flange Connection

High - Cost - Performance KTF Turbine Flow Meter For Measuring Organic And Inorganic Liquids 1

Pipe Size DN (mm)	Sensor Dimension (mm)	Flange Dimension (mm)						thread size

	L	H	D	D₁	D₂	D₃	n-do	L1(mm)	G
4	225	145							1/2
6	225	145							1/2
10	345	170							1/2
15	75	190	95	65	45		4-14	23	1
20	85	210	105	75	55		4-14	23	1
25	100	230	115	85	65		4-14	30	11/4
32	120	250	140/135	100	78		4-18	30	11/4
40	140	260	150/145	110	85		4-18	35	2
50	150	270	165/160	125	100		4-18
65	150	290	185/180	145	125		4-18
80	200	300	200/195	160	135		8-18
100	220	330	220/215	180	155		8-18
125	250	380	250/245	210	185		8-18
150	300	390	285/280	240	210		8-23
200	360	455	340/335	295	265		12-23
250	400	510	405	355	320		12-26/25
300	420	565	460	410	375		12-26/25
400	560	680	580	525	485		16-30
500	600	790	715/705	650	608		20-34
