Precision Ozone Water Monitoring Sensor Utilizing Constant Voltage Method And Automatic Temperature Compensation Pt1000

Pt1000 Water Monitoring Sensor

Constant Voltage Method Water Monitoring Sensor

Automatic Temperature Compensation Water Monitoring Sensor

Place of Origin:

china

Brand Name:

KACISE

Certification:

Model Number:

KWS652

Request A Quote

Precision Ozone Water Monitoring Sensor Utilizing Constant Voltage Method And Automatic Temperature Compensation Pt1000

Product Details

Measurement Principle:

Constant Voltage Method

Temperature Compensation:

Automatic Temperature Compensation (Pt1000)

Output Method:

RS-485 (Modbus RTU), 4-20 MA

Storage Temperature:

-5~65℃

Working Conditions:

5~50℃, <0.1MPa, PH: 4~9

Casing Material:

316L

Installation Method:

Flow Cell Installation, 3/4 NPT

Protection Level:

IP68

Highlight:

Pt1000 Water Monitoring Sensor

Constant Voltage Method Water Monitoring Sensor

Automatic Temperature Compensation Water Monitoring Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KCW101 Frequency - Modulated Electromagnetic Wave Water Treatment Equipment

Get Best Price

KHM100 On - line Automatic Heavy Metal Water Quality Monitor

Get Best Price

KCW104 Automatic Softening Water Device

Get Best Price

KCW105 Ionization Water Purification Device

Get Best Price

86--17719566736

Contact Now

Product Description

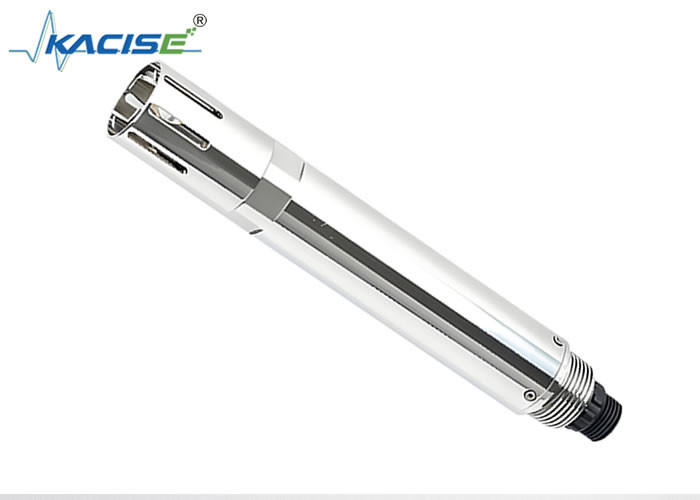

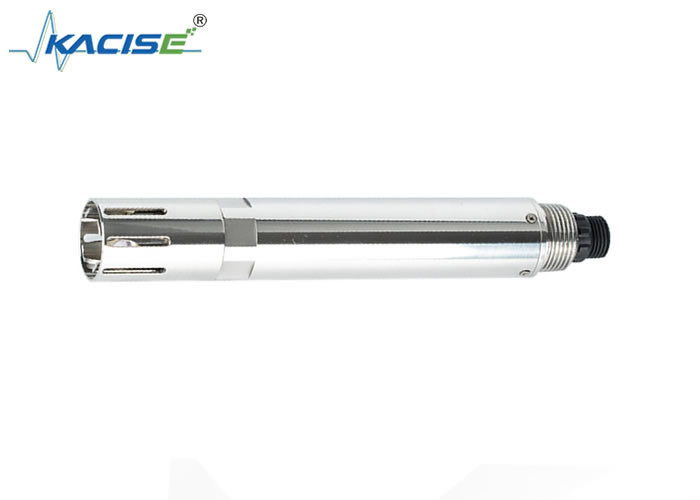

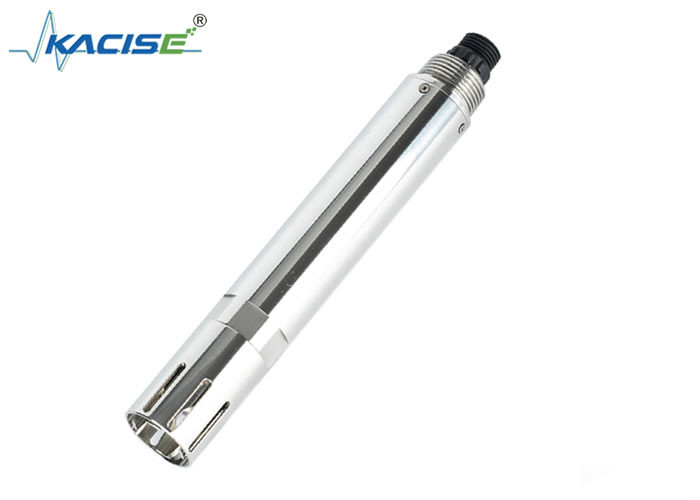

High-Precision Ozone Water Quality Monitoring Sensor

Product Introduction

The KACISE High-Precision Ozone Water Quality Monitoring Sensor is engineered for accurate and reliable ozone detection in water. It offers a resolution of 0.001 mg/L for low concentrations and 0.01 mg/L for higher levels, ensuring precise measurements. The sensor supports RS-485 and 4-20 mA outputs, making it compatible with various monitoring systems. Its IP68-rated housing and 316L stainless steel construction ensure long-lasting performance in demanding environments.

Technical Parameters

Model	KWS-652
Measurement principle	Constant voltage method
Range and resolution	0~2.000mg/L	0.001mg/L
	0~20.00mg/L	0.01mg/L
Accuracy	0~2.000mg/L	±5%,±0.3℃
	0~20.00mg/L	±0.05,±0.3℃
Cleaning method	/
Temperature compensation	Automatic temperature compensation (Pt1000)
Output method	RS-485 (Modbus RTU), 4-20 mA
Storage temperature	-5~65℃
Working conditions	5~50℃, <0.1MPa, pH: 4~9
Casing material	316L
Installation method	Flow cell installation, 3/4 NPT
Power consumption	0.2W@12V
Power supply	12~24V DC
Protection level	IP68

Dimensions

Note: The sensor connector is a male M16-5-core waterproof connector.
