Product Details

Product Model:

TDLAS200

Detection Object:

Methane (CH4)

Measurement Principle:

Laser Absorption Spectrum (TDLAS)

Static Detection Limit:

0.5ppm@25℃10SPS (typical Value, Please Contact Us For Details)

Volume:

53ml

Measurement Range:

0~5000ppm

Highlight:

High Sensitivity Methane Sensor

TDLAS200 Laser Methane Sensor

High Sensitivity Laser Methane Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

TDLAS200A Auto-Calibrating Laser Methane Sensor with 0.2s Fastest Response Time and 0~5000ppm Measurement Range

Get Best Price

Video

TDLAS200B Series Laser Methane Sensor

Get Best Price

TDLAS301 Methane Laser Sensor with High Measurement Accuracy and Fast Response for Continuous CH4 Detection

Get Best Price

TDLAS200 High-Sensitivity Laser Methane Sensor with 0.5ppm Detection Limit and 0~5000ppm Range for Industrial Safety

Get Best Price

86--17719566736

Contact Now

Product Description

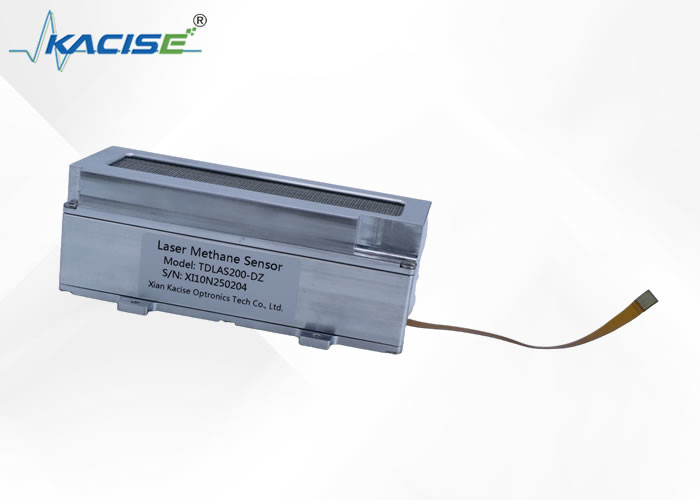

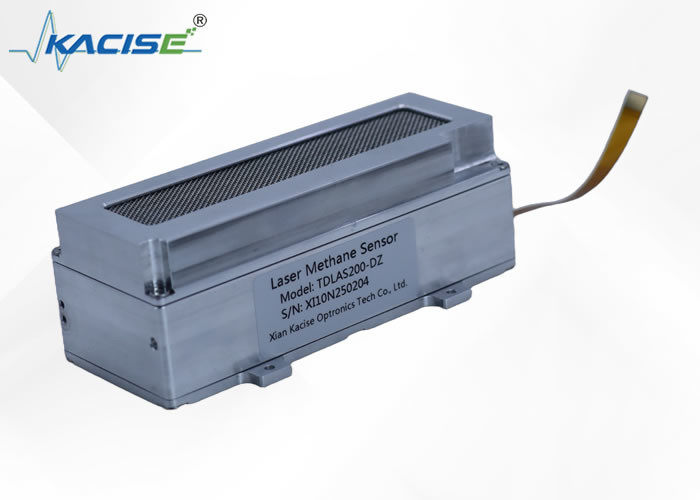

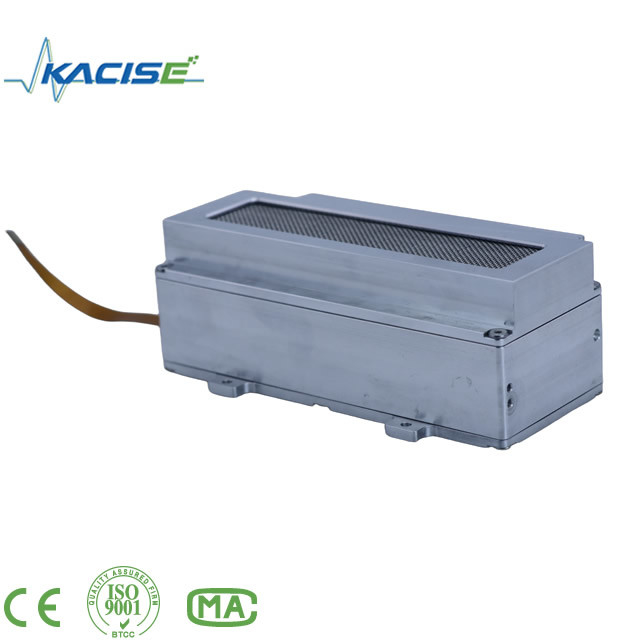

TDLAS200 High-Sensitivity Laser Methane Sensor

The KACISE TDLAS200 High-Sensitivity Laser Methane Sensor is designed for precise methane detection with unparalleled accuracy. Utilizing Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, it offers a detection range of 0~5000ppm and a static detection limit of 0.5ppm. Its high sensitivity ensures reliable performance in various environments, with an operating temperature range of -20~50℃. The sensor features a built-in reference cell for automatic calibration and a compact design for easy integration. KACISE combines advanced technology and durability, making this sensor ideal for industrial safety and environmental monitoring.

Key Features

High sensitivity, only responds to the target gas
Built-in reference cell, can be automatically calibrated
Easy to integrate, digital interface directly outputs status and concentration

Measuring Principle

"Methane molecules absorb light of a specific wavelength" --Molecular absorption spectrum
"The amount of light absorbed by a transparent medium (methane gas mass) is proportional to the thickness and concentration of the gas mass" --Beer-Lambert's law

According to the above physical principles, a beam of light of a specific wavelength can be used to penetrate the leaking methane gas mass. According to the degree of weakening of the beam, the concentration of methane in the gas mass can be measured, and it only responds to methane (unique selectivity).

Using a detection cell with multiple reflections and allowing the laser to repeatedly pass through the gas being measured can multiply the detection sensitivity.

Technical Parameters

Product model	TDLAS200A(Pump)	TDLAS200B(Diffusion)
Detection object	Methane (CH4)
Measurement principle	Laser absorption spectrum (TDLAS)
Static detection limit	0.5ppm@25℃ 5SPS (typical value, please contact us for details)
Volume	53ml
Fastest response time	0.2s	90s
Measurement range	0~5000ppm, 0-10000ppm
Measurement deviation	0-200 ppm: ±2 ppm of the true value 200-1000 ppm: ±1% of the true value 1000-5000 ppm: ±2% of the true value 5000-10000 ppm: ±3% of the true value
12hrs drift	+/-1.5ppm
Operating temperature	-20~50℃
Power supply	5-12VDC 1W (typical) 6W (maximum) Recommended 12V 1A
Dimensions	1155938mm	1155940mm
Gas inlet/outlet port	Pagoda direct M-5AU-4

*1 Please ensure that the power input voltage of the module is not less than 5V
*2 Pump selection recommendation <500ml/min

Dimensions of the detection module

(1) TDLAS200A (Pump) detection module host size 115*59*38mm (excluding cables and gas connectors).
It is recommended to add a 0.45 μm PTFE hydrophobic filter at the gas inlet; connect a pump and a muffler filter at the gas outlet.

(2) TDLAS200B (Diffusion) detection module main unit size 115*59*40mm (excluding cables and gas connectors)
