Name: TDLAS200B Series Laser Methane Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TDLAS200B
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

TDLAS200B Series Laser Methane Sensor

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

TDLAS200B

Request A Quote

Product Details

Volume:

53ml

Measurement Range:

0~5000ppm,0-10000ppm

Detection Object:

Methane (CH4)

Measurement Principle:

Laser Absorption Spectrum (TDLAS)

Static Detection Limit:

0.5ppm@25℃ 5SPS (typical Value, Please Contact Us For Details)

Fastest Response Time:

90s

Highlight:

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

TDLAS200A Auto-Calibrating Laser Methane Sensor with 0.2s Fastest Response Time and 0~5000ppm Measurement Range

Get Best Price

Video

TDLAS200B Series Laser Methane Sensor

Get Best Price

TDLAS301 Methane Laser Sensor with High Measurement Accuracy and Fast Response for Continuous CH4 Detection

Get Best Price

TDLAS200 High-Sensitivity Laser Methane Sensor with 0.5ppm Detection Limit and 0~5000ppm Range for Industrial Safety

Get Best Price

86--17719566736

Contact Now

Product Description

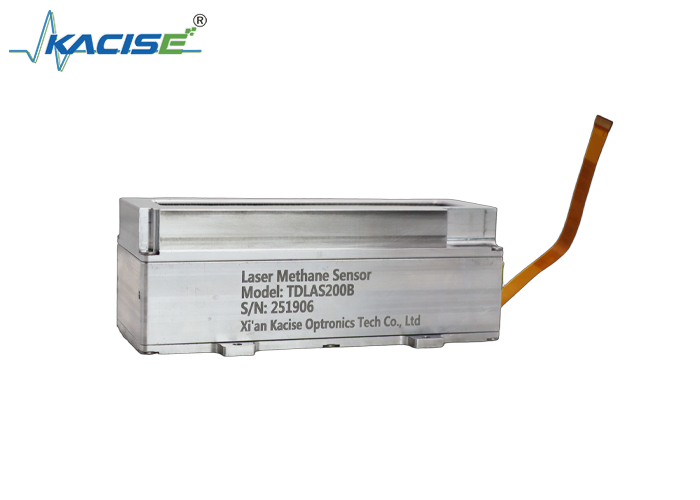

TDLAS200B Series Laser Methane Sensor

Introduction

The TDLAS201 laser gas telemetry module utilizes laser absorption spectroscopy technology. It emits a specific wavelength laser beam to detect target gas presence within the optical path range, accurately measuring gas concentration.

Key Features

High sensitivity with exclusive response to target gas
Built-in reference cell for automatic calibration
Easy integration with digital interface providing direct status and concentration output

Measuring Principle

Molecular absorption spectrum: Methane molecules absorb light at specific wavelengths.

Beer-Lambert's law: Light absorption by methane gas is proportional to gas thickness and concentration.

This technology uses wavelength-specific laser beams to measure methane concentration through light attenuation analysis, with unique methane selectivity. Multiple reflection detection cells enhance sensitivity by allowing repeated laser passes through the measured gas.

Technical Specifications

Parameter	Specification
Detection object	Methane (CH4)
Measurement principle	Laser absorption spectrum (TDLAS)
Static detection limit	0.5ppm@25℃ 5SPS (typical value)
Volume	53ml
Fastest response time	90s
Measurement range	0-5000ppm, 0-10000ppm
Measurement deviation	0-200 ppm: ±2 ppm 200-1000 ppm: ±1% 1000-5000 ppm: ±2% 5000-10000 ppm: ±3%
12hrs drift	+/-1.5ppm
Operating temperature	-20~50℃
Power supply	5-12VDC 1W (typical) 6W (max) Recommended 12V 1A
Dimensions	1155940mm
Gas inlet/outlet port	Pagoda direct M-5AU-4

Detection Module Composition

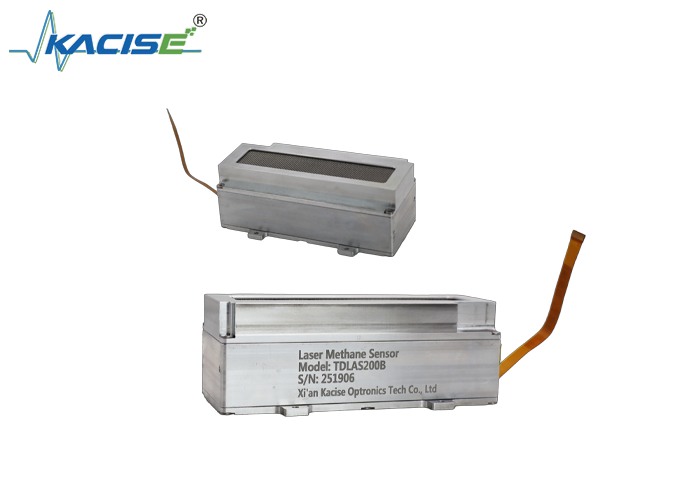

TDLAS200B (Diffusion) detection module main unit measures 115*59*40mm (excluding cables and gas connectors).

For detailed specifications or custom requirements, please contact our technical team.
